Lincoln MKZ 2014 Fuse Box Info

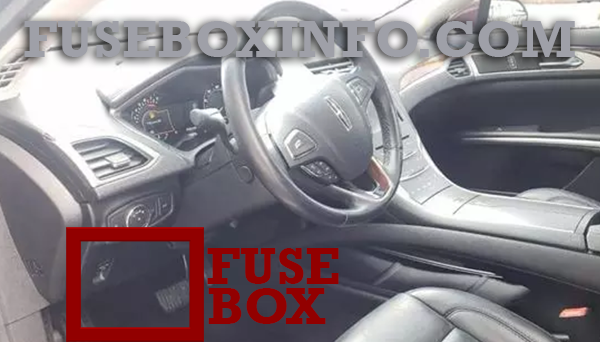

Fuse box location:
The fuse box is under the instrument panel to the left of the steering column.

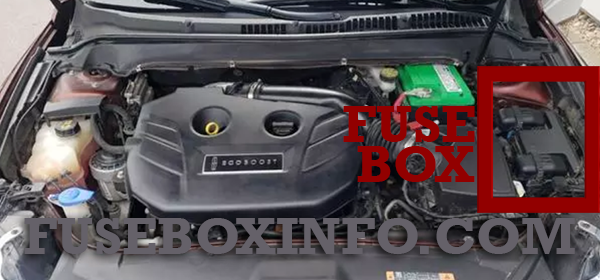

Engine compartment fuse box:
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads. There are fuses located on the bottom of the fuse box.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Lighting (ambient, glovebox, vanity, dome, trunk) |
| 2 | 7.5A | Memory seats, Lumbar, Power mirror |
| 3 | 20A | Driver door unlock |
| 4 | 5A | Not used (spare) |
| 5 | 20A | Subwoofer amplifier, THX amplifier |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Not used (spare) |
| 10 | 5A | Power trunk logic, Keypad |
| 11 | 5A | Not used (spare) |
| 12 | 7.5A | Climate control, Gear shift |
| 13 | 7.5A | Steering wheel column, Cluster, Datalink logic |
| 14 | 10A | Not used (spare) |
| 15 | 10A | Datalink/Gateway module |
| 16 | 15A | Trunk release |
| 17 | 5A | Not used (spare) |
| 18 | 5A | Ignition, Push button stop/start |
| 19 | 5A | Passenger airbag disabled indicator, Transmission range |
| 20 | 5A | Adaptive headlamps |
| 21 | 5A | Humidity and in-car temperature, Rear climate seats |
| 22 | 5A | Occupant classification sensor |
| 23 | 10A | Delayed Accessory (Power inverter logic, Moonroof logic) |
| 24 | 30A | Central lock/unlock |
| 25 | 30A | Driver's door (window, mirror) |
| 26 | 30A | Front passenger's door (window, mirror) |
| 27 | 30A | Moonroof |
| 28 | 20A | THX amplifier |
| 29 | 30A | Rear driver's side door (window) |
| 30 | 30A | Rear passenger's side door (window) |
| 31 | 15A | Not used (spare) |
| 32 | 10A | GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver |
| 33 | 20A | Radio, Active noise control |
| 34 | 30A | Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A | Restraints control module |
| 36 | 15A | Continuous control damping suspension, Auto-dimming rear view mirror, Lane keeping system module |
| 37 | 15A | All-wheel drive relay, Heated steering wheel |
| 38 | 30A | Rear window shade |

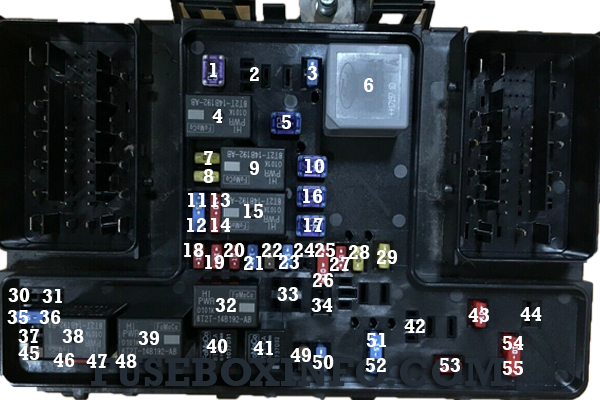

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Not used (spare) |
| 2 | - | Starter relay |
| 3 | 15A | Autowipers |
| 4 | - | Blower motor relay |
| 5 | 20A | Power point 3 - Back of console |
| 6 | - | Not used |
| 7 | 20A | Powertrain control module - vehicle power 1 |
| 8 | 20A | Powertrain control module - vehicle power 2 |
| 9 | - | Powertrain control module relay |
| 10 | 20A | Power point 1 - driver front |
| 11 | 15A | Powertrain control module - vehicle power 4 |
| 12 | 15A | Powertrain control module - vehicle power 3 |
| 13 | 10A | Powertrain control module - vehicle power 5 |
| 14 | 10A | Powertrain control module - vehicle power 6 |
| 15 | - | Run/start relay |
| 16 | 20A | Power point 2 - console |
| 17 | - | Not used |
| 18 | 10A | Powertrain control module - keep alive power |
| 19 | 10A | Run/start electronic power assist steering |
| 20 | 10A | Run/start lighting |
| 21 | 15A | Run/start transmission control, Transmission oil pump start/stop |
| 22 | 10A | Air conditioner clutch solenoid |
| 23 | 15A | Run/start: Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter |
| 24 | - | Not used |
| 25 | 10A | Run/start anti-lock brake system |
| 26 | 10A | Run/start powertrain control module |
| 27 | - | Not used |
| 28 | - | Not used |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Electronic fan #1 relay |
| 33 | - | Air conditioner clutch relay |
| 34 | - | Not used |
| 35 | - | Not used |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | - | Electronic fan #2 relay |
| 39 | - | Electronic fan #3 relay |
| 40 | - | Fuel pump relay |
| 41 | - | Horn relay |
| 42 | - | Not used |
| 43 | - | Not used |
| 44 | - | Not used |
| 45 | - | Not used |
| 46 | 10A | Alternator |
| 47 | 10A | Brake on/off switch |
| 48 | 20A | Horn |
| 49 | 5A | Mass air flow monitor |
| 50 | - | Not used |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | 10A | Power seats |
| 54 | - | Not used |
| 55 | - | Not used |

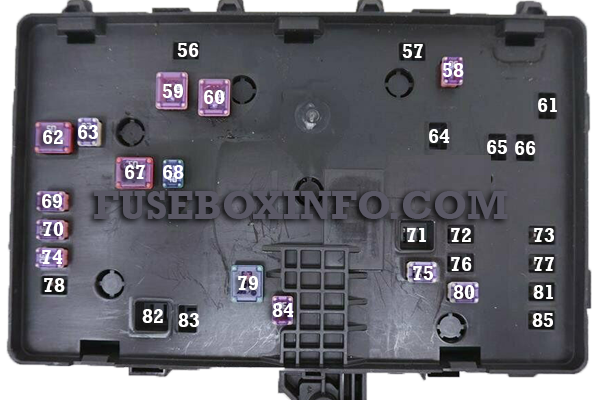

Engine compartment fuse box - bottom:
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
1. Release the two latches, located on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
| Fuse/Relay N° | Rating | Functions |
| 56 | 30A | Fuel pump feed |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | 30A | 500W Electronic fan 3 |
| 60 | 30A | 500W Electronic fan 1 |
| 61 | - | Not used |
| 62 | 50A | Body control module 1 |
| 63 | 20A | 500W Electronic fan 2 |
| 64 | - | Not used |
| 65 | 20A | Front heated seat |
| 66 | - | Not used |
| 67 | 50A | Body control module 2 |
| 68 | 40A | Heated rear window |
| 69 | 30A | Anti-lock brake system valves |
| 70 | 30A | Passenger seat |
| 71 | - | Not used |
| 72 | 30A | Panoramic roof #1 |
| 73 | 20A | Rear climate controlled seats |
| 74 | 30A | Driver seat module |
| 75 | - | Not used |
| 76 | 20A | Transmission oil pump #2 stop/start |
| 77 | 30A | Front climate controlled seats |
| 78 | - | Not used |
| 79 | 40A | Blower motor |
| 80 | 30A | Power trunk |
| 81 | 40A | Inverter |
| 82 | 60A | Anti-lock brake system pump |
| 83 | 25A | Wiper motor #1 |
| 84 | 30A | Starter solenoid |
| 85 | 30A | Panoramic roof #2 |
