Lincoln Navigator 2018 Fuse Box Info
Fuse box location:
The fuse box is located on the right side of the passenger footwell behind a the trim panel.

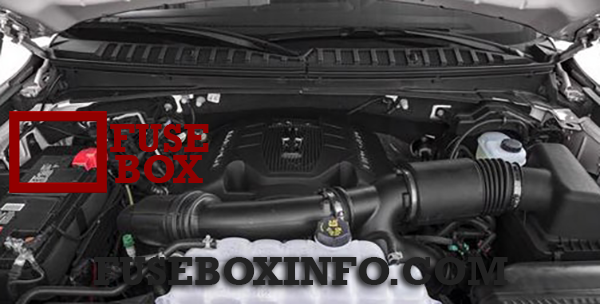

Engine compartment fuse box:
The power distribution box is located in the engine compartment.
Fuse Box Diagram | Layout

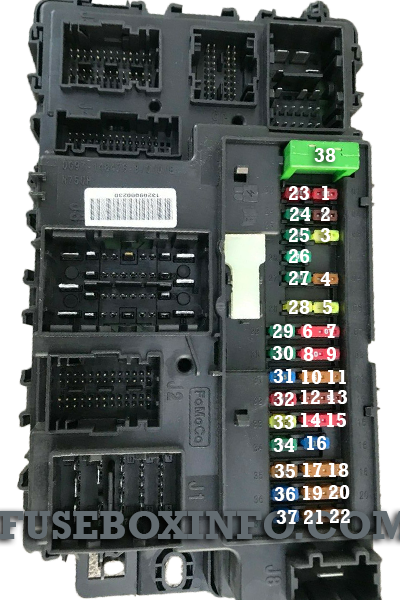

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 7.5A | Driver seat switch |
| 3 | 20A | Driver door unlock |
| 4 | 5A | Trailer brake controller (TBM) |
| 5 | 20A | Revel II amplifier |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Rear seat entertainment module (RSEM), Automatic heads up display |
| 10 | 5A | Wireless AC charger module (WACM), Hands free liftgate module, Power liftgate module Logic (PLGM) |
| 11 | 5A | Combined sensor module (CSM), Keypad |
| 12 | 7.5A | Cluster, Smart datalink connector Logic (SDLC), Electronic control panel (ECP) |
| 13 | 7.5A | Steering column control module (SCCM) (Logic), Gear shift module (GSM) |
| 14 | 10A | Extended power mode module (EPM), Brake Switch |
| 15 | 10A | Smart datalink connector Power (SDLC) |
| 16 | 15A | Liftglass release relay |
| 17 | 5A | Telematics control unit - modem |
| 18 | 5A | Push-button start switch |
| 19 | 7.5A | Not used (spare) |
| 20 | 7.5A | Headlamp control module (HCM) |
| 21 | 5A | In-car temperature and humidity sensor |
| 22 | 5A | EC mirror, 2nd row heated seat module |
| 23 | 10A | Moonroof (logic), Inverter (LIN logic), Power window switch, Power mirror switch, DVD player (if equipped) |
| 24 | 20A | Central lock relay, Central unlock relay |
| 25 | 30A | Left front door done module (DZM) |
| 26 | 30A | Right front door zone module (DZM) |
| 27 | 30A | Moonroof - Tilt, Vent, Slide |
| 28 | 20A | Revel II Amp |
| 29 | 30A | Left rear door zone module (DZM) |
| 30 | 30A | Right rear door zone module (DZM) |
| 31 | 15A | Adjustable column and pedal memory module (CAPM) |
| 32 | 10A | Accessory protocol interface module (APIM) (Media Gateway Module or SYNC), Drive mode switch module (DMSM) (if equipped), Right front transceiver module (RTM), Rear HVAC control |
| 33 | 20A | Audio control module (ACM), Rear audio control module (RACM), Remote CD mechanism (if equipped) |
| 34 | 30A | Not used (spare) |
| 35 | 5A | Extended power mode module (EPM) |
| 36 | 15A | Image processing module A (IPMA), Automated Park Assist Module Continuous control damping module (CCD Module) |
| 37 | 20A | Heated steering wheel |
| 38 | 30A Circuit Breaker | Left rear power window, Right rear power window |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Horn |
| 2 | 50A | Fan 1 |
| 3 | 30A | Front wiper motor |
| 4 | - | Not used |
| 5 | 30A | Starter relay |
| 6 | 20A | Power point #1 |
| 8 | 20A | Power point #2 |
| 10 | 5A | Rain sensor |
| 12 | - | Not used |
| 13 | 10A | 4X4 module, Heated backlite, Heated mirror relay coil, Heated wiper park relay coil, Transmission isolation relay coil |
| 14 | 15A | Transmission coil module |
| 15 | 15A | RH-LDM, LH-LDM, Voltage quality module, Blindspot information system, Cruise control module, Tailgate applique, Image processing module B |
| 16 | 10A | Powertrain control module (PCM) run/start feed |
| 17 | 10A | Anti-lock brake system (ABS) run/start feed |
| 18 | 10A | Electronic power assist steering, run/start feed |
| 19 | - | Not used |
| 20 | 40A | Front blower |
| 21 | 40A | Passenger seat motors |
| 22 | 20A | Not used |
| 23 | 10A | Alternator A-line |
| 24 | 30A | Trailer brake control module |
| 25 | 50A | Body control module power 1 |
| 26 | 50A | Electronic fan 3 |
| 27 | 40A | Driver seat motors |
| 28 | 15A | Rear heated seats |
| 29 | 10A | 4x4 integrated wheel end solenoid |
| 30 | 25A | Trailer tow class II-IV battery charge |
| 31 | 50A | Power folding seat module |
| 32 | 10A | A/C clutch |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | 20A | Vehicle power 4 |
| 36 | 10A | Vehicle power 3 |
| 37 | 25A | Vehicle power 2 |
| 38 | 25A | Vehicle power 1 |
| 39 | - | Not used |
| 41 | 50A | Inverter |
| 43 | 20A | Trailer tow light module class II-IV |
| 45 | 20A | Front/rear washer pump |
| 46 | 7.5A | Family entertainment system |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | 30A | Fuel pump |
| 51 | 20A | Power point #3 |
| 52 | 50A | Body control module (BCM) voltage quality monitor (VQM) |
| 53 | 25A | Trailer tow park lamps relay |
| 54 | 40A | Electronic limited slip differential (ELSD) relay |
| 55 | 40A | Auxiliary blower |
| 56 | 20A | Power point #4 |
| 58 | 5A | Front driver and passenger seats - belt tension reducer |
| 59 | - | Not used |
| 60 | 5A | Lincoln start lamp |
| 61 | 25A | Right-hand enhanced exterior lighting (EEL) module (R64) |
| 62 | 25A | Left-hand enhanced exterior lighting (EEL) module (R64) |
| 63 | 25A | 4X4 module |
| 64 | - | Not used |
| 65 | - | Not used |
| 66 | - | Not used |
| 67 | - | Not used |
| 68 | - | Not used |
| 69 | - | Not used |
| 70 | 40A | Anti-lock brake system (ABS) / park brake module |
| 71 | 25A | 4X4 module |
| 72 | - | Not used |
| 73 | - | Not used |
| 74 | 10A | Trailer tow backup lamps |
| 75 | - | Not used |
| 76 | 50A | Body control module (BCM) run power 2 |
| 77 | 30A | Climate control (heated/vented) seat module |
| 78 | 20A | Not used |
| 79 | - | Not used |
| 80 | 10A | Heated wiper park |
| 81 | - | Not used |
| 82 | - | Not used |
| 83 | 15A | Transmission control module (TCM) power |
| 84 | - | Not used |
| 85 | - | Not used |
| 86 | 5A | USB smart charger #5 |
| 87 | 5A | USB smart charger #3 |
| 88 | 10A | Multi contour seats relay |
| 89 | 40A | Power running boards |
| 91 | 30A | Power liftgate module |
| 93 | 15A | Heated mirrors |
| 94 | 5A | USB smart charger #1 |
| 95 | 10A | USB smart charger #2 |
| 96 | 30A | Rear wiper motor relay |
| 97 | 40A | Intercooler puller fan relay |
| 98 | 15A | Transmission oil pump |
| 99 | 40A | Heated backlight |
| 100 | 20A | Power point #5 |
| 101 | 25A | Electronic fan 2 |
| 102 | - | Not used |
| 103 | 20A | Not used (spare) |
| 104 | - | Not used |
| 105 | - | Not used |
| R02 | Relay | Electronic fan 2 |
| R05 | Relay | Powertrain control module (PCM) |
