Lincoln MKX 2009 Fuse Box Info

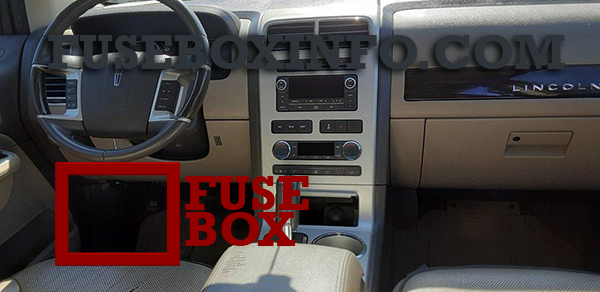

Passenger compartment fuse box location:
The fuse box is located behind a trim panel on the left side of the driver’s footwell near the parking brake.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | 30A | Passenger front smart window |
2 | 15A | Not used (Spare) |
3 | 15A | SYNC |
4 | 30A | Driver front smart window |
5 | 10A | Keypad illumination, 2nd row seat, Tire Pressure Monitoring System (TPMS), Brake Shift Interlock (BSI), Smart junction box (SJB) |
6 | 20A | Turn signals |
7 | 10A | Low beam headlamps (left) |
8 | 10A | Low beam headlamps (right) |
9 | 15A | Interior lights, Cargo lamps |
10 | 15A | Backlighting, Puddle lamps, Ambient lighting |
11 | 10A | All Wheel Drive |
12 | 7.5A | Power mirror switch, Driver side power seat memory, Driver seat module – Keep alive power (KA) |
13 | 5A | Satellite radio, DSP |
14 | 10A | Power liftgate module |
15 | 10A | Climate control |
16 | 15A | Not used (Spare) |
17 | 20A | All power lock motor feeds, Liftgate release, Express up/down front windows |
18 | 20A | THX system, Heated seats |
19 | 25A | Rear wiper |
20 | 15A | Datalink |
21 | 15A | Fog lamps |
22 | 15A | Park lamps |
23 | 15A | High beam headlamps |
24 | 20A | Horn relay |
25 | 10A | Demand lamps |
26 | 10A | Instrument panel cluster |
27 | 20A | Ignition switch |
28 | 5A | Radio |
29 | 5A | Instrument panel cluster |
30 | 5A | Overdrive cancel switch |
31 | 10A | Automatic dimming rear view mirror |
32 | 10A | Not used (Spare) |
33 | 10A | Not used (Spare) |
34 | 5A | Steering angle sensor |
35 | 10A | Rear park assist, AWD, Heated seat module |
36 | 5A | PATS transceiver |
37 | 10A | Climate control |
38 | 20A | THX System |
39 | 20A | Radio |
40 | 20A | Not used (Spare) |
41 | 15A | Delayed accessory function for radio and lock switch illumination, Ambient lighting |
42 | 10A | Not used (Spare) |
43 | 10A | Rear wiper logic |
44 | 10A | Customer accessory feed |
45 | 5A | Front wiper logic, Climate control relay feed |
46 | 7.5A | Occupant Classification Sensor (OCS), Passenger Airbag Deactivation Indicator (PADI) |
47 | 30A | Power windows |
48 | - | Delayed accessory relay |
Engine compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | - | Not used |
2 | - | Blower motor relay |
3 | - | Not used |
4 | - | Not used |
5 |
40A 60A |
Cooling fan (vehicles with trailer tow) Cooling fan (vehicles without trailer tow) |
6 | 40A | Cooling fan (trailer tow only) |
7 | 30A | Rear heated seats |
8 | 10A | Alternator |
9 | 20A | Trailer tow parking lamps |
10 | - | Not used |
11 | - | Trailer tow parking lamp relay |
12 | - | Not used |
13 | - | Not used |
14 | - | Not used |
15 | 40A | ABS pump motor |
16 | 30A | Front heated seats |
17 | 20A | Cigar lighter/Power point |
18 | 30A | Panorama moon roof |
19 | - | Fuel pump diode |
20 | - | PCM relay |
21 | 7.5A | PCM – Keep alive power (KA) |
22 | - | Trailer tow left stop/turn lamp relay |
23 | - | One-touch start diode |
24 | 15A | Trailer tow left stop/turn lamp |
25 | - | Rear seat release relay |
26 | - | Fuel pump relay |
27 | 10A | Rear seat release |
28 | 15A | Heated mirror |
29 | - | Heated mirror relay |
30 | 15A | VPWR 1 – PCM |
31 | 10A | VPWR 3 – PCM |
32 | 10A | VPWR 2 – PCM |
33 | 15A | VPWR 4 – PCM |
34 | - | Not used |
35 | 10A | A/C clutch |
36 | - | Not used |
37 | - | A/C clutch relay |
38 | - | Rear window defroster relay |
39 | 40A | Rear window defroster |
40 | - | Not used |
41 | 30A | Starter |
42 | - | Starter relay |
43 | - | Backup lamp relay |
44 | 10A | Backup lamps |
45 | - | Not used |
46 | 15A | Trailer tow right stop/turn lamp |
47 | - | Trailer tow right stop/turn lamp relay |
48 | - | Run/Start relay |
49 | 10A | PCM ISPR |
50 | 10A | ABS Run/Start |
51 | 5A | Adaptive lighting |
52 | 5A | Fuel pump relay coil |
53 | 30A | SPDJB Run/Start |
54 | - | Not used |
55 | - | Not used |
56 | - | A/C clutch diode |
57 | 40A | ABS valves |
58 | 30A | Front wipers |
59 | 30A | Power liftgate |
60 | 30A | Driver power seat |
61 | 30A | Passenger power seat |
62 | - | Not used |
63 | 40A | Blower motor |
64 | 20A | Cigar lighter/Power point |
65 | 20A | Cigar lighter/Power point |
66 | 20A | Cigar lighter/Power point |
67 | - | Not used |
68 | 15A | Fuel pump |
69 | - | Not used |
70 | - | Not used |
71 | 10A | Stop lamps |
72 | - | Not used |
