Lincoln MKT 2012 Fuse Box Info

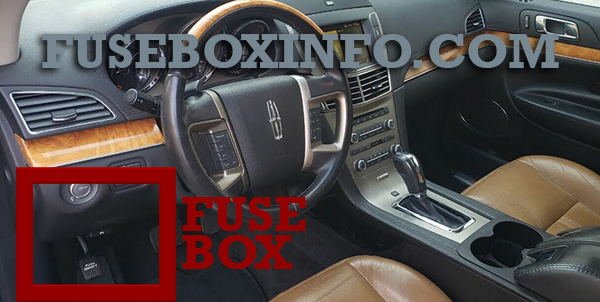

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering wheel.

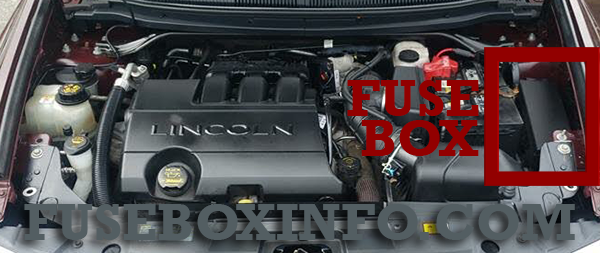

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Right rear smart window |
| 2 | 15A | Refrigerator |
| 3 | 15A | Driver seat switch, 2nd row lumbar switches |
| 4 | 30A | Right front smart window |
| 5 | 10A | Brake transmission shift interlock, 3rd row power fold module |
| 6 | 20A | Turn signals |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights, Cargo lamps |
| 10 | 15A | Backlighting, Puddle lamps |
| 11 | 10A | All Wheel Drive (AWD) |
| 12 | 7.5A | Intelligent access (IA) |
| 13 | 5A | IA receiver, Exterior mirror switch, Steering column position switch, Driver seat module, Driver door module, Keypad |
| 14 | 10A | Power liftgate module, SYNC, Rear entertainment |
| 15 | 10A | Climate control, Electronic finish panel |
| 16 | 15A | Navigation display, ALM, Auxiliary climate control |
| 17 | 20A | Global window open |
| 18 | 20A | Amplifier |
| 19 | 25A | Amplifier |
| 20 | 15A | Data link connector (OBD-2), 2nd row power fold seat motors |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps, License plate lamps, Illuminated liftgate applique |
| 23 | 15A | High beam headlamps, Auto high beam relay, Fog lamp deactivation relay |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps/Interior lamps, 2nd row power fold seats, Powertrain control module (GTDI) wake-up, 3rd row seat relay |
| 26 | 10A | Instrument panel cluster, Heads up display |
| 27 | 20A | Ignition Switch, IA |
| 28 | 5A | Radio mute |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Transmission shifter |
| 31 | 10A | Steering angle sensor, Heads up display |
| 32 | 10A | Restraint control module |
| 33 | 10A | Adaptive lighting module |
| 34 | 5A | Front body run/start feeds |
| 35 | 10A | Body module run/start feeds |
| 36 | 5A | Not used (spare) |
| 37 | 10A | Powertrain control module run/start, Fuel relay |
| 38 | 20A | Trailer tow park lamps |
| 39 | 20A | Audio control module |
| 40 | 20A | Cigarette lighter |
| 41 | 15A | Delayed accessory feeds |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Auxiliary blower, Rear wiper, Rain sensor |
| 44 | 10A | Trailer tow backup lamps |
| 45 | 5A | Front wiper, Front blower, Wiper relay |
| 46 | 7.5A | Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI), Front control interface module |
| 47 | 30A | Not used |
| 48 | - | Delayed accessory relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 30A | Trailer tow brake controller |
| 4 | 40A | Wiper relay (front and rear) |
| 5 | 30A | Passenger power seat |
| 6 | 30A | 110V AC inverter |
| 7 | 30A | Rear climate control seat module |
| 8 | 30A | Front climate control seat module |
| 9 | 40A | Anti-lock brake system (ABS) pump |
| 10 | 30A | Starter |
| 11 | 30A | Powertrain control module (PCM) vehicle power |
| 12 | 20A | ABS valve |
| 13 | 20A | Right high intensity discharge (HID) headlamp |
| 14 | 10A | Brake on/off (BOO) switch, Adaptive cruise relay |
| 15 | 15A | Automatic high beams, Adaptive cruise control |
| 16 | 20A | Left HID headlamp |
| 17 | 10A | Alternator sensor |
| 18 | 30A | 3rd row power seats |
| 19 | 20A | Front console power point |
| 20 | 40A | Rear defroster, Heated mirrors |
| 21 | 20A | Rear console power point |
| 22 | 40A | Trailer tow battery charge, Trailer tow stop/turn lamps fuse 45 power |
| 23 | 10A | PCM keep alive power, Canister vent, Relay coil |
| 24 | 10A | A/C clutch |
| 25 | 20A | Rear power point |
| 26 | 15A | Backup lamps |
| 27 | 15A | Fuel relay (Fuel pump driver module, Fuel pump) |
| 28 | 80A | Cooling fan |
| 29 | 30A | Left rear smart window, Panoramic roof module, Power sunshade module |
| 30 | 30A | Left front smart window |
| 31 | 40A | Auxiliary blower motor |
| 32 | 30A | Driver seat motor, Memory motor power |
| 33 | 30A | Run/start relay |
| 34 | 30A | Power liftgate |
| 35 | 40A | Front A/C blower |
| 36 | 25A | Rear wiper module (secondary fuse) |
| 37 | 15A | Washer pump |
| 38 | 10A | Trailer tow backup lamps |
| 39 | - | Fuel pump motor diode |
| 40 | - | One touch integrated start diode |
| 41 | - | Trailer tow park lamp |
| 42 | - | Trailer tow stop/turn lamp (left) |
| 43 | - | Trailer tow stop/turn lamp (right) |
| 44 | - | Backup lamps relay |
| 45 | - | Trailer tow stop/turn lamps (secondary fuse) |
| 46 | 15A | PCM vehicle power 2, Vehicle power 3 |
| 47 | 15A | PCM Vehicle power 1 |
| 48 | 15A | PCM vehicle power 4 (coil on plugs) |
| 49 | 10A | Heated mirrors (secondary fuse) |
| 50 | - | Blower motor |
| 51 | - | Fog lamp deactivation |
| 52 | - | Starter |
| 53 | - | Adaptive cruise control |
| 54 | - | 3rd row power seats |
| 55 | - | Wipers (front) |
| 56 | - | Rear window defroster, Heated mirrors |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | - | Auxiliary blower motor |
| 60 | - | Trailer tow battery charge |
| 61 | - | Refrigerator |
| 62 | - | Automatic high beams |
| 63 | - | Run/start |
| 64 | - | PCM |
| 65 | - | A/C clutch |
| 66 | - | Fuel pump |
