Lincoln MKS 2013 Fuse Box Info

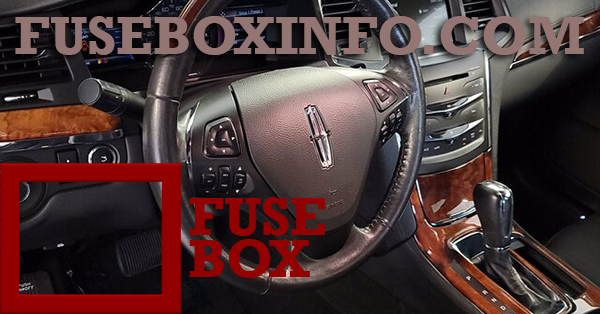

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering wheel.

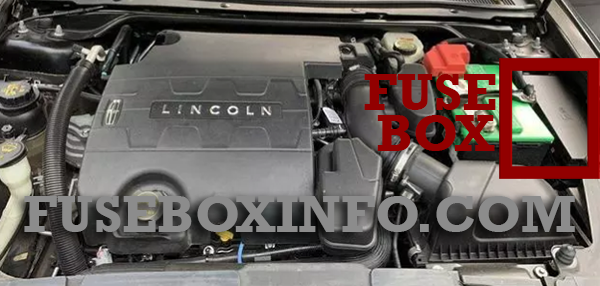

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Left front and right rear smart window motors |
| 2 | 15A | Driver seat switch |
| 3 | 30A | Right front smart window motor |
| 4 | 10A | Demand lamps battery saver relay |
| 5 | 20A | Audio amplifier, Active noise control module |
| 6 | 5A | Not used (spare) |
| 7 | 7.5A | Driver seat module logic, Left front door zone module, Keypad |
| 8 | 10A | Not used (spare) |
| 9 | 10A | SYNC module, Electronic finish panel, Radio frequency transceiver module |
| 10 | 10A | Run accessory relay, Wiper relay, Rain-sense subfuse |
| 11 | 10A | Intelligent access module logic, Heads-up display |
| 12 | 15A | Puddle lamp, Backlighting LED, Interior lighting |
| 13 | 15A | Right turn signals |
| 14 | 15A | Left turn signals |
| 15 | 15A | Stop lamp, Backup lamp |
| 16 | 10A | Right front low beam |
| 17 | 10A | Left front low beam |
| 18 | 10A | Start button, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Immobilizer transceiver module |
| 19 | 20A | Audio amplifiers |
| 20 | 20A | All lock motor relay and coil, Driver lock motor relay and coil |
| 21 | 10A | Not used (spare) |
| 22 | 20A | Horn relay |
| 23 | 15A | Steering wheel control module logic, Instrument cluster |
| 24 | 15A | Steering wheel control module, Datalink |
| 25 | 15A | Decklid release |
| 26 | 5A | Push button start switch |
| 27 | 20A | Intelligent access module power |
| 28 | 15A | Not used (spare) |
| 29 | 20A | Radio, Global positioning system module |
| 30 | 15A | Front park lamps |
| 31 | 5A | Not used (spare) |
| 32 | 15A | Smart window motors, Master window and mirror switch, Rear window power sunshade module, Lock switch illumination |
| 33 | 10A | Suspension module |
| 34 | 10A | Reverse park aid module, Automatic high beam and lane departure module, Rear heated seat module, Blind spot monitor module, Rear video camera |
| 35 | 5A | Motorized humidity sensor, Heads-up display |
| 36 | 10A | Heated steering wheel |
| 37 | 10A | Not used (spare) |
| 38 | 10A | Moonroof module and switch |
| 39 | 15A | High beams |
| 40 | 10A | Rear park lamps |
| 41 | 7.5A | Occupant classification sensor, Restraint control module |
| 42 | 5A | Not used (spare) |
| 43 | 10A | Not used (spare) |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Not used (spare) |
| 46 | 10A | Climate control module |
| 47 | 15A | Fog lamp relay |
| 48 | 30A | Front passenger power window, Rear power windows |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | - | Not used |
| 4 | 30A | Wiper motor relay |
| 5 | 50A | Anti-lock brake system pump |
| 6 | - | Not used |
| 7 | - | Not used |
| 8 | 20A | Moonroof, Power sunshade |
| 9 | 20A | Second row powerpoint |
| 10 | - | Not used |
| 11 | - | Heated rear window relay |
| 12 | - | Not used |
| 13 | - | Starter motor relay |
| 14 | - | Left-hand cooling fan #2 relay |
| 15 | - | Fuel pump relay |
| 16 | - | Not used |
| 17 | - | Not used |
| 18 | 40A | Front blower motor relay |
| 19 | 30A | Starter relay |
| 20 | 20A | Storage bin power point |
| 21 | 20A | Rear heated seat module |
| 22 | - | Not used |
| 23 | 30A | Driver power seat, Memory module |
| 24 | - | Not used |
| 25 | - | Not used |
| 26 | 40A | Heated rear window relay |
| 27 | 20A | Cigar lighter |
| 28 | 30A | Climate controlled seats |
| 29 | 40A | Electric fan relay 1 |
| 30 | 40A | Electric fan relay 2 |
| 31 | 25A | Electric fan relay 3 |
| 32 | - | Not used |
| 33 | - | Right-hand cooling fan relay |
| 34 | - | Blower motor relay |
| 35 | - | Left-hand cooling fan #1 relay |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | 30A | Left front smart window motor |
| 41 | 30A | Left rear smart window motor |
| 42 | 30A | Passenger power seat |
| 43 | 20A | Anti–lock brake system valves |
| 44 | - | Not used |
| 45 | 5A | Rain sensor |
| 46 | - | Not used |
| 47 | - | Not used |
| 48 | - | Not used |
| 49 | - | Not used |
| 50 | 15A | Heated mirrors |
| 51 | - | Not used |
| 52 | - | Not used |
| 53 | - | Not used |
| 54 | - | Not used |
| 55 | - | Wiper relay |
| 56 | - | Not used |
| 57 | 20A | Left high-intensity discharge headlamp |
| 58 | 10A | Alternator A-line |
| 59 | 10A | Brake on/off switch |
| 60 | - | Not used |
| 61 | - | Not used |
| 62 | 10A | A/C clutch relay |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | 30A | Fuel pump relay, Fuel injectors |
| 66 | - | Powertrain control module relay |
| 67 | 20A | Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid valve, Canister vent solenoid, Canister purge solenoid |
| 68 | 20A | Ignition coils |
| 69 | 20A | Vehicle power #1 (powertrain control module) |
| 70 | 15A | A/C clutch, Fan control relay coils (1-3), Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve, All-wheel drive module, Positive crankcase ventilation heater |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | - | Not used |
| 74 | - | Not used |
| 75 | - | Not used |
| 76 | - | Not used |
| 77 | - | Not used |
| 78 | 20A | Right high-intensity discharge headlamp |
| 79 | 5A | Adaptive cruise control module |
| 80 | - | Not used |
| 81 | - | Not used |
| 82 | - | Not used |
| 83 | - | Not used |
| 84 | - | Not used |
| 85 | - | Not used |
| 86 | 7.5A | Powertrain control module keep-alive power and relay, Canister vent solenoid |
| 87 | 5A | Run/start relay |
| 88 | - | Run/start relay |
| 89 | 5A | Front blower relay coil, Electrical power assist steering module |
| 90 | 10A | Powertrain control module run/start |
| 91 | 10A | Adaptive cruise control module |
| 92 | 10A | Anti-lock brake system module, Adaptive headlamp module |
| 93 | 5A | Rear window defroster relay |
| 94 | 30A | Passenger compartment fuse panel run/start |
| 95 | - | Not used |
| 96 | - | Not used |
| 97 | - | Not used |
| 98 | - | A/C clutch relay |
