Lincoln MKS 2011 Fuse Box Info

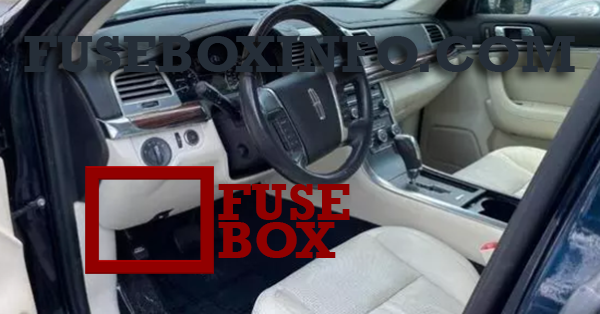

Passenger compartment fuse box location:
The fuse box is located under the instrument panel to the left of the steering wheel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Right rear window |
| 2 | 15A | Not used (spare) |
| 3 | 15A | Driver seat control/lumbar |
| 4 | 30A | Right front window |
| 5 | 10A | Brake-shift interlock (BSI) |
| 6 | 20A | Turn signals, hazards |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Courtesy lamps |
| 10 | 15A | Illumination switch, Puddle lamps |
| 11 | 10A | All Wheel Drive (AWD) |
| 12 | 7.5A | Intelligent access (IA) module |
| 13 | 5A | Memory/seats/mirrors/steering column, keypad, Driver zone module |
| 14 | 10A | Center information display, SYNC, GPS |
| 15 | 10A | Climate control |
| 16 | 15A | Electronic finish panel (EFP), Ambient lighting |
| 17 | 20A | Global windows |
| 18 | 20A | Dual heated rear seat module (DHRSM) (battery) |
| 19 | 25A | Not used (spare) |
| 20 | 15A | Diagnostic connector |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps, License lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn |
| 25 | 10A | Demand lamps |
| 26 | 10A | Cluster/Heads up display |
| 27 | 20A | Ignition Switch |
| 28 | 5A | Not used (spare) |
| 29 | 5A | Instrument panel cluster (run/start) |
| 30 | 5A | Not used (spare) |
| 31 | 10A | Auto high beam controller, Heads up display |
| 32 | 10A | Restraint control module |
| 33 | 10A | Adaptive lighting module |
| 34 | 5A | AdvanceTrac, Adaptive cruise control module, Electronic power assist steering module |
| 35 | 10A | AWD, DHRSM, Absolute steering angle switch, Park aid (run/start) module |
| 36 | 5A | Not used (spare) |
| 37 | 10A | Not used (spare) |
| 38 | 20A | Amplifier (THX or 6 channel) |
| 39 | 20A | Radio/Navigation |
| 40 | 20A | Amplifier (THX or 2 channel) |
| 41 | 15A | Delayed Accessory |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear window defroster relay, Rain sensor |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Wiper relay and module, Blower relay |
| 46 | 7.5A | Occupant classification sensor (OCS), Electronic finish panel, Climate control |
| 47 | 30A | Not used |
| 48 | - | Delayed accessory relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 80A | Passenger compartment fuse panel power |
| 2 | 80A | Passenger compartment fuse panel power |
| 3 | - | Not used |
| 4 | 30A | Front wipers |
| 5 | 30A | Passenger power seat |
| 6 | 20A | Cigar lighter |
| 7 | - | Not used |
| 8 | 30A | Moonroof |
| 9 | 40A | Anti-lock Brake System (ABS) pump |
| 10 | 30A | Starter relay |
| 11 | 30A | Powertrain Control Module (PCM) relay |
| 12 | 20A | ABS valve |
| 13 | 15A | Adapt cruise |
| 14 | 10A | Brake on/off switch |
| 15 | 15A | Auto high beam |
| 16 | 20A | Left high intensity discharge (HID) headlamp |
| 17 | 10A | Alternator sense |
| 18 | - | Not used |
| 19 | 20A | Power point |
| 20 | 40A | Rear window defroster |
| 21 | 20A | Power point |
| 22 | 30A | Front heated/cooled seats |
| 23 | 7.5A | PCM Keep alive power, Canister vent |
| 24 | 10A | A/C clutch relay |
| 25 | 20A | Right HID headlamp |
| 26 | 10A | Backup relay |
| 27 | 15A | Fuel pump |
| 28 |
60A 80A |
Cooling fan (3.7L V6 engine) Cooling fan (3.5L V6 engine) |
| 29 | 30A | Left rear window |
| 30 | 30A | Left front window |
| 31 | - | Not used |
| 32 | 30A | Driver seat module |
| 33 | 40A | Intelligent access (IA) run/start relay |
| 34 | - | Not used |
| 35 | 40A | Front A/C blower motor |
| 36 | 20A | Passenger compartment fuse panel run/start |
| 37 | 10A | PCM run/start |
| 38 | 5A | Delayed Accessory |
| 39 | - | Fuel pump diode (3.7L V6 engine) |
| 40 | - | One-touch integrated start (OTIS) diode |
| 41 | - | A/C clutch |
| 42 | - | Fuel pump |
| 43 | - | Backup |
| 44 | - | Auto high beam |
| 45 | - | Not used |
| 46 | 15A | Vehicle power 2 (PCM), Vehicle power 3 (PCM) |
| 47 | 15A | PCM Vehicle power 1 |
| 48 | 15A | Vehicle power 4 – Ignition coils |
| 49 | 10A | Heated mirrors |
| 50 | - | Blower motor relay |
| 51 | - | Not used |
| 52 | - | Starter relay |
| 53 | - | Adaptive cruise control (stop lamps) |
| 54 | - | Not used |
| 55 | - | Wiper relay |
| 56 | - | HBL relay |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | - | Not used |
| 60 | - | Not used |
| 61 | - | Not used |
| 62 | - | Not used |
| 63 | - | Run/start relay |
| 64 | - | PCM relay |
| 65 | - | Not used |
| 66 | - | Not used |
