Lincoln MKC 2019 Fuse Box Info

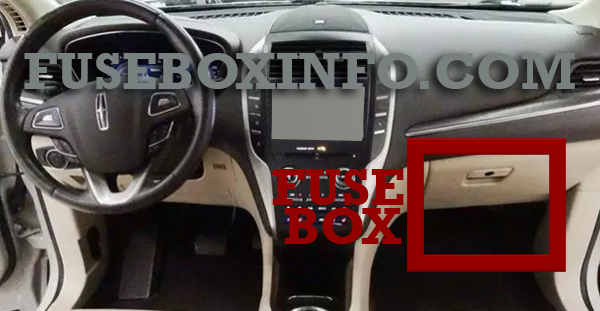

Passenger compartment fuse box location:
The fuse box is located behind the lower end of the glove box.
Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Demand lamp battery saver |
| 2 | 7.5A | Memory seats |
| 3 | 20A | Driver door unlock |
| 4 | 5A | Not used (spare) |
| 5 | 20A | Subwoofer amplifier, THX amplifier |
| 6 | 10A | Not used (spare) |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Not used (spare) |
| 10 | 5A | Keypad, Power liftgate logic |
| 11 | 5A | Not used (spare) |
| 12 | 7.5A | Climate control, Gear shift control, Push-button ignition |
| 13 | 7.5A | Cluster, Datalink module logic, Steering column module logic |
| 14 | 10A | Extended Power Module (supplies power for Restraint Control Module and Occupant Classification System) |
| 15 | 10A | Datalink module |
| 16 | 15A | Not used (spare) |
| 17 | 5A | Cellphone passport module |
| 18 | 5A | Not used (spare) |
| 19 | 5A | Not used (spare) |
| 20 | 5A | Not used (spare) |
| 21 | 5A | Humidity and in-car temperature |
| 22 | 5A | Not used (spare) |
| 23 | 10A | Delayed accessory (driver window switch, moonroof logic, power inverter logic) |
| 24 | 30A | Central lock and unlock |
| 25 | 30A | Driver door (window, mirror) |
| 26 | 30A | Front passenger door (window, mirror) |
| 27 | 30A | Moonroof |
| 28 | 20A | THX amplifier |
| 29 | 30A | Rear driver side door (window) |
| 30 | 30A | Rear passenger side door (window) |
| 31 | 15A | Not used (spare) |
| 32 | 10A | Display, GPS, Radio frequency receiver, Voice control |
| 33 | 20A | Radio and active noise control |
| 34 | 30A | Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A | Not used (spare) |
| 36 | 15A | Auto-dimming rear view mirror, Continuous control damping suspension, Lane keeping system module, Rear heated seats module |
| 37 | 15A | All-wheel drive relay, Heated steering wheel |
| 38 | 30A | Not used (spare) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 7 | 50A | Anti-lock brake system module |
| 8 | 30A | Anti-lock brake system module |
| 9 | 20A | Fuel pump relay |
| 10 | 40A | Blower motor relay |
| 11 | 30A | Run start relay |
| 12 | 40A | Powertrain control module relay |
| 13 | 30A | Starter relay |
| 14 | 30A | Memory seat |
| 15 | 30A | Wipers and washers relay |
| 16 | 25A | Cooling fan |
| 17 |
40A 50A |
Cooling fan 1 (600W) Cooling fan 1 (750W) |
| 18 |
40A 50A |
Cooling fan 2 (600W) Cooling fan 2 (750W) |
| 19 | 5A | Anti-lock brake system module run/start |
| 20 | 20A | Horn relay |
| 21 | 10A | Brake pedal switch |
| 22 | 25A | Windshield wipers and washer |
| 23 | 5A | Run/start relay coil |
| 24 | 20A | Transmission range control module |
| 25 | 10A | Air conditioning clutch |
| 26 | 5A | Powertrain control module relay coil |
| 27 | 10A | Washer pump relay |
| 28 | 10A | Alternator sensor |
| 29 | 15A | Rain sensor, Rear wiper, Washer pump relay coil |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | 15A | Vehicle power 1 (powertrain control module) |
| 33 | 15A | Vehicle power 2 (canister vent solenoid, universal exhausted gas oxygen sensor, variable camshaft timing, catalyst monitor sensor, canister purge solenoid) |
| 34 | 15A | Vehicle power 3 (A/C clutch control relay coil, variable A/C compressor, fan control relay coil, engine charge air bypass valve solenoid, active grill shutters) |
| 35 | 15A | Vehicle power 4 (ignition coils) |
| 36 | - | Not used |
| 37 | - | Not used |
| 38 | 15A | Voltage quality module run/start (vehicles equipped with stop/start) |
| 39 | 5A | Powertrain control ignition start power - run |
| 40 | 10A | Electronic power assist steering run/start |
| 41 | 10A | Extended power module run/start |
| 42 | 10A |
Adaptive cruise control, Blind spot information system, Heads-up display, Rear video camera (vehicles not equipped with stop/start) Not used (spare) (vehicles without stop/start) |
| 43 | - | Not used |
| 44 | 5A | Heated rear window relay coil, Heated wiper park, Electronic transmission pump run/stop feed (vehicles equipped with stop/start) |
| 45 | 5A | Transmission range control module run/start |
| 46 | 40A | Heated rear window relay, Heated wiper park |
| 47 | 30A | Electronic transmission pump B+ feed (vehicles equipped with stop/start) |
| 48 | - | Not used |
| Relays | ||
| 1 | - | Run start |
| 2 | - | Horn |
| 3 | - | Fuel pump |
| 4 | - | Rear window washer pump |
| 5 | - | Cooling fan relay 3 (750W), Spare (600W) |
| 6 | - | Windshield wipers |
| 7 | - | Cooling fan relay 1 (600W), Cooling fan relay 5 (750W) |
| 8 | - | Starter |
| 9 | - | Not used |
| 10 | - | Cooling fan relay 4 (750W), Spare (600W) |
| 11 | - | Air conditioning clutch |
| 12 | - | Cooling fan relay 1 (750W), Cooling fan relay 3 (600W) |
| 13 | - | Cooling fan relay 2 |
| 14 | - | Powertrain control module |
| 15 | - | Heated rear window, Heated wiper park |
| 16 | - | Blower motor |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 5A | Hands free liftgate |
| 4 | - | Not used |
| 5 | - | Not used |
| 6 | - | Not used |
| 7 | 30A | Rear heated seats |
| 8 | 30A | Power cinch latch, Power liftgate |
| 9 | 20A | Heated front seats |
| 10 | 40A | Trailer tow |
| 11 | 30A | Climate control seats |
| 12 | 20A | Not used (spare) |
| 13 | - | Not used |
| 14 | 30A | Power seats |
| 15 | 20A | Auxiliary power point - inside of floor console |
| 16 | 20A | Auxiliary power point - rear of floor console |
| 17 | - | Not used |
| 18 | 20A | Auxiliary power point - cargo area |
| 19 | 40A | Inverter power outlet |
| Relays | ||
| 1 | - | Not used |
