Lincoln MKZ Hybrid 2016 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is under the instrument panel to the left of the steering column.
Engine compartment fuse box location:
The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle's main electrical systems from overloads. There are fuses located on the bottom of the fuse box.
Fuse Box Diagram | Layout

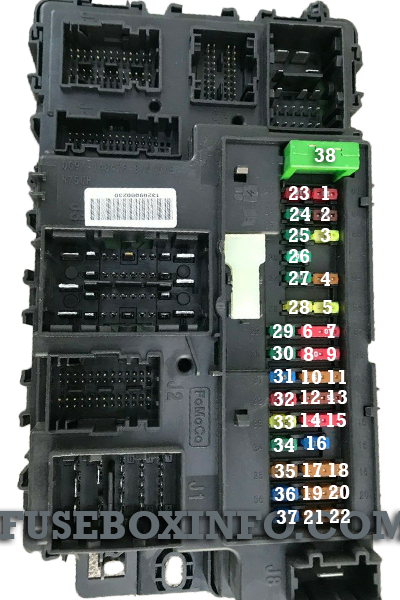

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Lighting (ambient, glovebox, vanity, dome, trunk) |
| 2 | 7.5A | Memory seats, Lumbar, Power mirror |
| 3 | 20A | Driver door unlock |
| 4 | 5A | Not used (spare) |
| 5 | 20A | Subwoofer amplifier |
| 6 | 10A | Heated seat relay coil |
| 7 | 10A | Not used (spare) |
| 8 | 10A | Not used (spare) |
| 9 | 10A | Not used (spare) |
| 10 | 5A | Power trunk logic, Keypad, Cellphone passport module |
| 11 | 5A | Not used (spare) |
| 12 | 7.5A | Climate control, Gear shift |
| 13 | 7.5A | Steering wheel column, Instrument cluster, Datalink logic |
| 14 | 10A | Battery electronic control module |
| 15 | 10A | Datalink/Gateway module |
| 16 | 15A | Decklid release, Child lock |
| 17 | 5A | Tracking and blocking module |
| 18 | 5A | Ignition, Push button stop/start |
| 19 | 5A | Passenger airbag disabled indicator, Transmission range |
| 20 | 5A | Adaptive headlamps |
| 21 | 5A | Humidity and in-car temperature |
| 22 | 5A | Occupant classification sensor |
| 23 | 10A | Delayed Accessory (power inverter, moonroof, all smart window, driver window switch pack) |
| 24 | 30A | Central lock/unlock |
| 25 | 30A | Driver's door (window, mirror) |
| 26 | 30A | Front passenger's door (window, mirror) |
| 27 | 30A | Moonroof |
| 28 | 20A | Amplifier |
| 29 | 30A | Rear driver's side door (window) |
| 30 | 30A | Rear passenger's side door (window) |
| 31 | 15A | Not used (spare) |
| 32 | 10A | GPS, Voice control, Display, Adaptive cruise control, Radio frequency receiver |
| 33 | 20A | Radio, Active noise control |
| 34 | 30A | Run/start (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker) |
| 35 | 5A | Restraints control module |
| 36 | 15A | Auto-dimming rear view mirror |
| 37 | 15A | All wheel drive, Heated steering wheel |
| 38 | 30A | Not used (spare) |

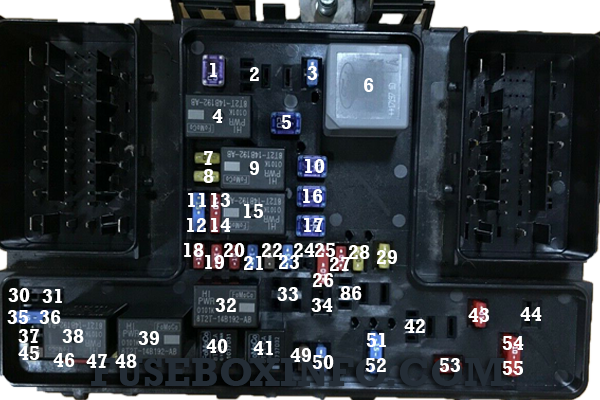

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Wiper Motor 2 |
| 2 | - | Not used |
| 3 | 15A | Rain sensor |
| 4 | - | Blower motor relay |
| 5 | 20A | Power point 3 - Back of console |
| 6 | - | Not used |
| 7 | 20A | Powertrain control module - vehicle power 1 |
| 8 | 20A | Powertrain control module - vehicle power 2 |
| 9 | - | Powertrain control module relay |
| 10 | 20A | Power point 1 - driver front |
| 11 | 15A | Powertrain control module - vehicle power 4 |
| 12 | 15A | Powertrain control module - vehicle power 3 |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Run/start relay |
| 16 | 20A | Power point 2 - console |
| 17 | 20A | Transmission oil pump |
| 18 | 10A | Powertrain and hybrid powertrain control module - keep alive power |
| 19 | 10A | Run/start electronic power assist steering |
| 20 | 10A | Run/start lighting |
| 21 | 15A | Run/start transmission switch, HEV inverter |
| 22 | - | Not used |
| 23 | 15A | Run/start: Blind spot information system, Rear view camera, Adaptive cruise control, Heads-up display, Shifter |
| 24 | 10A | Run/Start 7 or PHEV, Transmission oil run/start |
| 25 | 10A | Run/start anti-lock brake system |
| 26 | 10A | Run/start powertrain control module |
| 27 | 15A | Fuel door solenoid |
| 28 | - | Not used |
| 29 | 15A | Hybrid content vehicle power 5 |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | HEV/PHEV pulse width modulated fan relay |
| 33 | - | Not used |
| 34 | - | Not used |
| 35 | 15A | Charger fan |
| 36 | 15A | HEV battery electronic control module fan |
| 37 | 5A | Remote CD |
| 38 | - | Vacuum pump #1 relay |
| 39 | - | Vacuum pump #2 relay |
| 40 | - | Fuel pump relay |
| 41 | - | Horn relay |
| 42 | - | Not used |
| 43 | - | Not used |
| 44 | - | Not used |
| 45 | 5A | Vacuum pump monitor |
| 46 | 10A | Charge port light |
| 47 | 10A | Brake on/off switch |
| 48 | 20A | Horn |
| 49 | 5A | Air flow monitor |
| 50 | - | Not used |
| 51 | 15A | Hybrid content vehicle power 1 |
| 52 | 15A | Hybrid content vehicle power 2 |
| 53 | 10A | Power seats |
| 54 | 10A | Hybrid content vehicle power 3 |
| 55 | 10A | Hybrid content vehicle power 4 |
Engine compartment fuse box - bottom:
There are fuses located on the bottom of the fuse box. To access the bottom of the fuse box, do the following:
1. Release the two latches, located on both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box to access the bottom side.
| Fuse/Relay N° | Rating | Functions |
| 56 | 30A | Fuel pump feed |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | 40A | Vacuum pump relay |
| 60 | 40A | Pulse width modulated fan |
| 61 | - | Not used |
| 62 | 50A | Body control module 1 |
| 63 | - | Not used |
| 64 | 40A | PHEV charger |
| 65 | 20A | Front heated seat |
| 66 | - | Not used |
| 67 | 50A | Body control module 2 |
| 68 | 40A | Heated rear window |
| 69 | 30A | Anti-lock brake system valves |
| 70 | 30A | Passenger seat |
| 71 | - | Not used |
| 72 | 30A | Panoramic roof #1 |
| 73 | 20A | Rear climate controlled seats |
| 74 | 30A | Driver seat module |
| 75 | - | Not used |
| 76 | 20A | iShifter, Transmission oil pump |
| 77 | 30A | Front climate controlled seats |
| 78 | 40A | Trailer tow module |
| 79 | 40A | Blower motor |
| 80 | 30A | Power trunk |
| 81 | 40A | Inverter |
| 82 | 60A | Anti-lock brake system pump |
| 83 | 25A | Wiper motor #1 |
| 84 | - | Not used |
| 85 | 30A | Panoramic roof #2 |
