Lexus LX 470 2007 Fuse Box Info

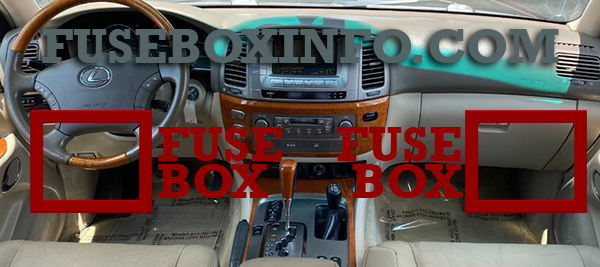

Passenger compartment fuse box location:
The fuse boxes are located under the instrument panel on the driver’s side kick panel, and on the passenger’s side kick panel.

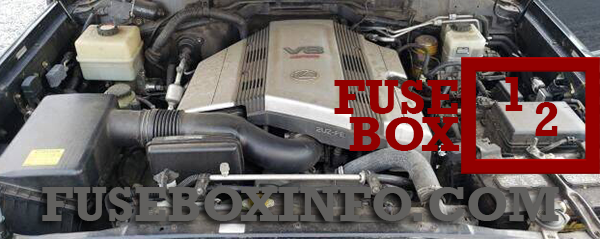

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
Fuse/Relay N° and Name | Rating | Functions |
1. PWR OUTLET | 15A | Power outlets |
2. CIG | 15A | Cigarette lighter |
3. ACC | 7.5A | Instrument panel light |
4. AM1 | 7.5A | Multiport fuel injection system/Sequential multiport fuel injection system |
5. DEFOG | 20A | Rear window defogger |
6. AHC–B | 15A | Active height control suspension (AHC) |
7. FUEL HTR | 20A | Fuel heater |
8. POWER HTR | 7.5A | Power heater |
9. AHC–IG | 20A | Active height control suspension (AHC) |
10. EFI or ECD No.2 | 10A | Emission control system |
11. GAUGE 1 | 10A | Gauges and meters |
12. ECU–IG 1 | 10A | Multiport fuel injection system/Sequential multiport fuel injection system |
13. ECU–B1 | 10A | Navigation system |
14. DBL LOCK | 15A | Double lock system |
15. A/C | 15A | Air conditioning system |
16. STOP | 15A | Stop lights |
17. OBD–2 | 7.5A | On–board diagnosis system |
18. IDLE UP | 7.5A | Idle–up system |
19. LH SEAT | 30A | Power seat system |
20. DOOR | 25A | Power door lock system, Power windows |
21. SUN ROOF | 25A | Electronic moon roof |
22. RR WIPER | 15A | Rear wiper system |
Passenger compartment fuse box (Passenger’s side):
Fuse/Relay N° and Name | Rating | Functions |
1. ECU–B2 | 10A | Power door lock system, Power window |
2. DIFF | 20A | Four–wheel drive system |
3. WASHER | 15A | Windshield washer |
4. RADIO | 10A | Audio system |
5. DOME | 10A | Interior lights |
6. VGRS | 40A | Variable gear ratio steering system |
7. P/W (FL) | 20A | Power window |
8. P/W (RL) | 20A | Power window |
9. WIPER | 25A | Windshield wiper |
10. ECU–IG 2 | 10A | Rear air conditioning system |
11. SEAT HTR | 15A | Seat heater |
12. GAUGE 2 | 10A | Back–up lights |
13. MET | 7.5A | Gauges and meters |
14. IGN | 7.5A | Multiport fuel injection system/Sequential multiport fuel injection system |
15. SECURITY | 7.5A | Theft deterrent system |
16. P/W (RR) | 20A | Power window |
17. P/W (FR) | 20A | Power window |
18. BATT CHARGE | 30A | Trailer charging system |
19. TIL & TEL | 20A | Tilt and telescopic steering |
20. RR A/C | 30A | Rear air conditioning system |
21. RH SEAT | 30A | Power seat system |
Engine compartment fuse box (Fuse box 1):
Fuse/Relay N° and Name | Rating | Functions |
29. AIR PUMP | 50A | Multiport fuel injection system/Sequential multiport fuel injection system |
30. A/F HTR | 15A | Multiport fuel injection system/Sequential multiport fuel injection system |
Engine compartment fuse box (Fuse box 2):
Fuse/Relay N° and Name | Rating | Functions |
1. ABS NO.2 | 40A | Anti–lock brake system |
2. ABS NO.1 | 50A | Anti–lock brake system |
3. AHC | 50A | Active height control suspension (AHC) |
4. WIP−S | 7.5A | No circuit |
5. TOWING | 30A | Trailer lights |
6. MIR HTR | 15A | Outside rearview mirror defogger |
7. RR HTR | 10A | Rear air conditioning system |
8. HAZ–TRN | 15A | Emergency flashers, Turn signal lights |
9. ALT–S | 7.5A | Charging system |
10. NV–IR | 15A | Lexus night view system |
11. FR FOG | 15A | Fog lights |
12. TOWING BRK | 30A | Trailer lights |
13. HEAD CLNER | 20A | Headlight cleaner |
14. FR–IG | 10A | Charging system |
15. PANEL | 7.5A | Instrument panel light |
16. TOWING TAIL | 30A | Trailer lights |
17. TAIL | 15A | Parking lights, Tail lights |
18. BAT | 30A | All components in “ECU–B2” |
19. TEL | 7.5A | Lexus Link System |
20. AMP | 30A | Audio system |
21. EFI or ECD No.1 | 25A | Multiport fuel injection system/Sequential multiport fuel injection system |
22. AM2 | 15A | All components in “IGN” |
23. ETCS | 10A | Multiport fuel injection system/Sequential multiport fuel injection system |
24. HORN | 10A | Horns |
25. HEAD (RH–LWR) | 10A | Right–hand headlight (low beam) |
26. HEAD (LH–LWR) | 10A | Left–hand headlight (low beam) |
27. HEAD (RH–UPR) | 20A | Right–hand headlight (high beam) |
28. HEAD (LH–UPR) | 20A | Left–hand headlight (high beam) |
