Lexus LX 470 2005 Fuse Box Info

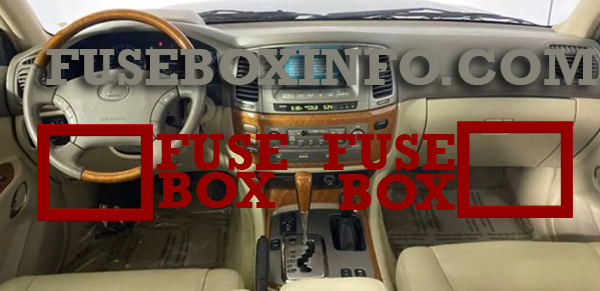

Passenger compartment fuse box location:
The fuse boxes are located under the instrument panel on the driver’s side kick panel, and on the passenger’s side kick panel.

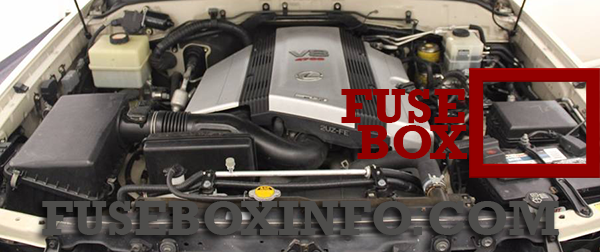

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s side):
Fuse/Relay N° and Name | Rating | Functions |
29. PWR OUTLET | 15A | Power outlets |
30. CIG | 15A | Cigarette lighter |
31. ACC | 7.5A | Instrument panel light |
32. AM1 | 7.5A | Multiport fuel injection system/Sequential multiport fuel injection system |
33. DEFOG | 20A | Rear window defogger |
34. AHC–B | 15A | Active height control suspension (AHC) |
35. FUEL HTR | 20A | Fuel heater |
36. POWER HTR | 7.5A | Power heater |
37. AHC–IG | 20A | Active height control suspension (AHC) |
38. EFI or ECD No.2 | 10A | Emission control system |
39. GAUGE 1 | 10A | Gauges and meters |
40. ECU–IG 1 | 10A | Multiport fuel injection system/Sequential multiport fuel injection system |
41. ECU–B1 | 10A | Navigation system |
42. DBL LOCK | 15A | Double lock system |
43. A/C | 15A | Air conditioning system |
44. STOP | 15A | Stop lights |
45. OBD–2 | 7.5A | On–board diagnosis system |
46. IDLE UP | 7.5A | Idle–up system |
47. LH SEAT | 30A | Power seat system |
48. DOOR | 25A | Power door lock system, Power windows |
49. SUN ROOF | 25A | Electronic moon roof |
50. RR WIPER | 15A | Rear wiper system |
Passenger compartment fuse box (Passenger’s side):
Fuse/Relay N° and Name | Rating | Functions |
51. ECU–B2 | 10A | Power door lock system, Power window |
52. DIFF | 20A | Four–wheel drive system |
53. WASHER | 15A | Windshield washer |
54. RADIO | 10A | Audio system |
55. DOME | 10A | Interior lights |
56. VGRS | 40A | Variable gear ratio steering system |
57. P/W (FL) | 20A | Power window |
58. P/W (RL) | 20A | Power window |
59. WIPER | 25A | Windshield wiper |
60. ECU–IG 2 | 10A | Rear air conditioning system |
61. SEAT HTR | 15A | Seat heater |
62. GAUGE 2 | 10A | Back–up lights |
63. MET | 7.5A | Gauges and meters |
64. IGN | 7.5A | Multiport fuel injection system/Sequential multiport fuel injection system |
65. SECURITY | 7.5A | Theft deterrent system |
66. P/W (RR) | 20A | Power window |
67. P/W (FR) | 20A | Power window |
68. BATT CHARGE | 30A | Trailer charging system |
69. TIL & TEL | 20A | Tilt and telescopic steering |
70. RR A/C | 30A | Rear air conditioning system |
71. RH SEAT | 30A | Power seat system |
Engine compartment fuse box:
Fuse/Relay N° and Name | Rating | Functions |
1. ABS NO.2 | 40A | Anti–lock brake system |
2. ABS NO.1 | 50A | Anti–lock brake system |
3. AHC | 50A | Active height control suspension (AHC) |
4. ST1 | 7.5A | Multiport fuel injection system/Sequential multiport fuel injection |
5. TOWING | 30A | Trailer lights |
6. MIR HTR | 15A | Outside rearview mirror defogger |
7. RR HTR | 10A | Rear air conditioning system |
8. HAZ–TRN | 15A | Emergency flashers, Turn signal lights |
9. ALT–S | 7.5A | Charging system |
10. NV–IR | 15A | Lexus night view system |
11. FR FOG | 15A | Fog lights |
12. TOWING BRK | 30A | Trailer lights |
13. HEAD CLNER | 20A | Headlight cleaner |
14. FR–IG | 10A | Charging system |
15. PANEL | 7.5A | Instrument panel light |
16. TOWING TAIL | 30A | Trailer lights |
17. TAIL | 15A | Parking lights, Tail lights |
18. BAT | 30A | All components in “ECU–B2” |
19. TEL | 7.5A | Lexus Link System |
20. AMP | 30A | Audio system |
21. EFI or ECD No.1 | 25A | Multiport fuel injection system/Sequential multiport fuel injection system |
22. AM2 | 15A | All components in “IGN” |
23. ETCS | 10A | Multiport fuel injection system/Sequential multiport fuel injection system |
24. HORN | 10A | Horns |
25. HEAD (RH–LWR) | 10A | Right–hand headlight (low beam) |
26. HEAD (LH–LWR) | 10A | Left–hand headlight (low beam) |
27. HEAD (RH–UPR) | 20A | Right–hand headlight (high beam) |
28. HEAD (LH–UPR) | 20A | Left–hand headlight (high beam) |
