Land Rover LR4 2016 Fuse Box Info

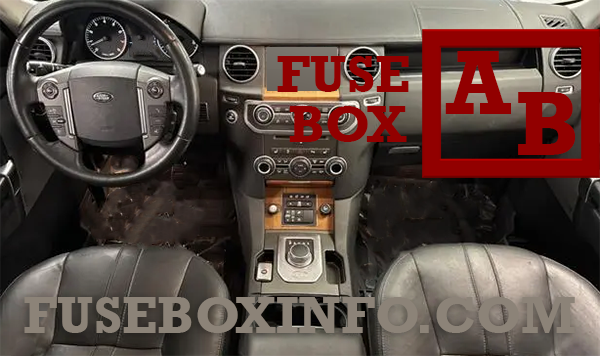

Passenger compartment fuse box location:
To access the passenger compartment fuse box A, open the upper glovebox and remove the access panel at the back of the glovebox. To access the passenger compartment fuse box B, open the lower glovebox, pinch the top of the support stays and lower the glovebox into the footwell.

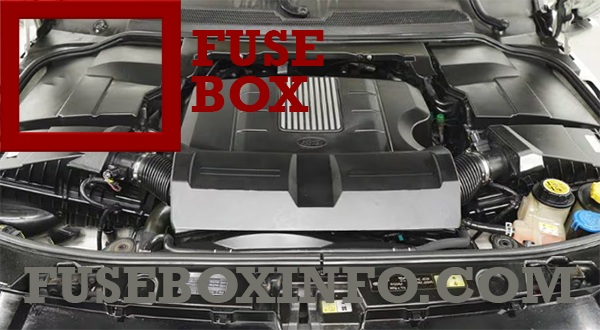

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Touch screen, Front integrated control panel |
| 2 | 10A | Audio amplifier |
| 3 | - | - |
| 4 | 10A | Navigation, Satellite radio |
| 5 | 15A | Audio head unit |
| 6 | 15A | Audio video input/output panel |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | 15A | Front and rear integrated control panel - Heating and ventilation |
| 16 | - | - |
Passenger compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Radio Frequency (RF) receiver, Tire Pressure Monitoring System (TPMS) |
| 2 | - | - |
| 3 | 15A | Front fog lamps |
| 4 | - | - |
| 5 | 5A | Dynamic Stability Control (DSC), Anti-lock Braking System (ABS), Steering angle sensor |
| 6 | 5A | Adaptive Cruise Control (ACC) |
| 7 | - | - |
| 8 | - | - |
| 9 | 5A | Electric Parking Brake (EPB) |
| 10 | 5A | Air suspension Electronic Control Unit (ECU), Chassis ECU |
| 11 | 10A | Trailer reverse lamp |
| 12 | 5A | Reverse lamps, Rear-view mirror |
| 13 | - | - |
| 14 | 5A | Brake pedal switch |
| 15 | 30A | Heated rear window |
| 16 | 10A | Cubby box cooler |
| 17 | 5A | Keyless entry/start, Central door locking |
| 18 | 15A | Rear wiper |
| 19 | 5A | Engine Control Module (ECM) |
| 20 | 10A | Heated steering wheel |
| 21 | 10A | Center console switches, Rear climate control |
| 22 | 5A | Automatic transmission, Transfer box, Rear differential |
| 23 | - | - |
| 24 | 10A | Right side lamps, tail lamps |
| 25 | 10A | Left side lamps, tail lamps |
| 26 | - | - |
| 27 | 10A | Trailer side lamps |
| 28 | - | - |
| 29 | - | - |
| 30 | 25A | Front passenger window, Central door locking |
| 31 | 5A | Rain sensor, Auxiliary lamp switch |
| 32 | 25A | Driver’s window, Exterior mirrors, Central door locking |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | 20A | Keyless entry, Central door locking |
| 38 | 15A | Front screen washer |
| 39 | 25A | Rear left-side window, Central door locking |
| 40 | 5A | Seat memory, Clock, Driver’s door switch pack (exterior mirrors, windows) |
| 41 | 5A | Gateway module |
| 42 | 30A | Driver’s electric seat |
| 43 | 15A | Rear screen washer |
| 44 | 25A | Rear right-side window, Central door locking |
| 45 | 30A | Passenger electric seat |
| 46 | - | - |
| 47 | 20A | Sunroof |
| 48 | 15A | Trailer connector (battery feed) |
| 49 | 5A | Adaptive front lighting (right-side unit) |
| 50 | 5A | Adaptive front lighting (left-side unit) |
| 51 | 5A | Steering wheel switches |
| 52 | - | - |
| 53 | 20A | Cigar lighter |
| 54 | 15A | Trailer connector (ignition feed) |
| 55 | 20A | Auxiliary power socket - center and rear |
| 56 | 10A | Air bag Supplementary Restraint System (SRS) |
| 57 | 10A | Interior lamps |
| 58 | - | - |
| 59 | - | - |
| 60 | - | - |
| 61 | 10A | Instrument panel, Message center, Fan |
| 62 | 10A | Climate control ECU, Switch pack |
| 63 | 20A | Auxiliary power socket |
| 64 | 5A | Engine Control Module (ECM) |
| 65 | - | - |
| 66 | 5A | Diagnostic socket |
| 67 | - | - |
| 68 | - | - |
| 69 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 25A | Fuel pump |
| 2 | 10A | Engine management system |
| 3 | 5A | Air suspension Electronic Control Unit (ECU) |
| 4 | 25A | Engine management system |
| 5 | 15A | Engine management system |
| 6 | 15A | Engine management system |
| 7 | 10A | Adaptive Cruise Control (ACC) |
| 8 | 25A | Rear seat heater |
| 9 | - | - |
| 10 | - | - |
| 11 | 20A | Engine management system |
| 12 | 10A | Heated washer jets |
| 13 | 15A | Engine management system |
| 14 | - | - |
| 15 | 10A | Rear-view mirror. Rear cameras. Adaptive Front lighting System (AFS). Headlamp control module |
| 16 | 5A | Blind Spot Monitor (BSM) |
| 17 | 20A | Engine management system |
| 18 | 5A | Engine management system |
| 19 | - | - |
| 20 | 30A | Headlamp power wash |
| 21 | 5A | Dynamic Stability Control (DSC). Anti-lock Braking System (ABS) |
| 22 | 30A | Rear blower motor |
| 23 | 25A | Dynamic Stability Control (DSC), Anti-lock Braking System (ABS) |
| 24 | 25A | Front seat heaters |
| 25 | 15A | Horn |
| 26 | 20A | Air suspension ECU |
| 27 | 15A | Air conditioning |
| 28 | - | - |
| 29 | 30A | Front wipers |
| 30 | 10A | Gearbox ECU |
