Land Rover Range Rover 2022 Fuse Box

Land Rover Range Rover 2022 Fuse Box Info

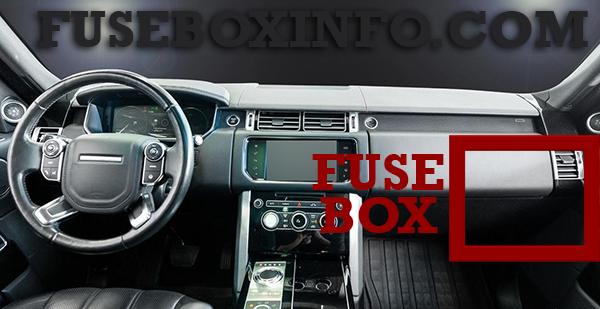

Passenger compartment fuse box location:

The fuse panel is located on the right side behind the glove box.

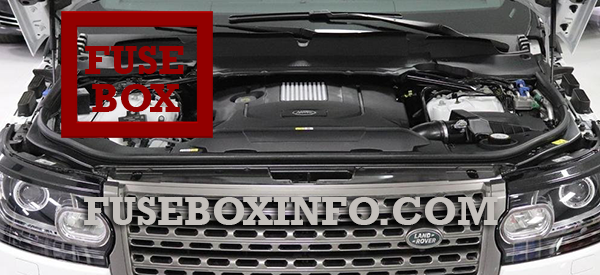

Engine compartment fuse box location:





Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 20A Front cigar lighter
2 20A Front accessory socket, Rear accessory socket
3 20A Rear accessory socket
4 20A Cubby box USB
5 - -
6 10A Climate control (hybrid vehicles only)
7 5A Battery back-up sounder
8 15A Auxiliary heater (hybrid vehicles only)
9 - -
10 20A Accessory sockets
11 30A Right-side rear seats
12 20A Panoramic roof
13 20A Panoramic roof
14 5A All Terrain Progress Control (ATPC)
15 - -
16 - -
17 - -
18 30A Passenger seat, Left-side rear seat
19 - -
20 25A Left-side rear door
21 10A Cool box, 240v plug socket
22 5A 48v cooling fan
23 20A Front passenger's seat, Left-side rear seat
24 25A Driver's door switches, Driver's door soft-close, Driver's door power-close
25 15A Dynamic Stability Control (DSC)
26 10A Passenger's seat switches
27 5A Tire Pressure Monitoring System (TPMS), Front overhead console
28 20A Driver's seat
29 25A Right-side rear door switches
30 - -
31 - -
32 10A Hybrid vehicle charging port flap
33 20A Driver's seat
34 25A Passenger's door switches, Passenger's door soft-close, Passenger's door power-close
35 5A Brake pedal switch
36 - -
37 - -
38 - -
39 - -
40 - -
41 5A Telematics
42 - -
43 10A Heated steering wheel
44 10A Steering wheel
45 5A Touch screen buttons, Rear climate control
46 15A Climate control
47 - -
48 - -
49 5A Vehicle immobilizer
50 - -
51 - -
52 5A Air ionizer
53 - -
54 5A Diagnostic socket
55 - -
56 10A Climate control



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 10A Auto stop/start (hybrid vehicles only)
2 - -
3 - -
4 15A Hybrid vehicle powertrain
5 15A Hybrid vehicle powertrain
6 10A Hybrid vehicle powertrain
7 - -
8 - -
9 25A Rear screen washer
10 15A Front fog lamps
11 15A Horn
12 30A Right-side headlight washer pump
13 30A Left-side headlight washer pump
14 15A Auto stop/start
15 15A Supercharger cooling
16 25A Windshield washer jets
17 10A Engine management system
18 20A Engine management system (gasoline only)
19 15A Engine management system
20 25A Engine management system
21 20A Engine management system
22 10A Engine management system (diesel only), Engine cooling fan (gasoline only)
23 10A Engine management system
24 15A Engine management system
25 10A Engine management system (diesel only)
26 - -
27 - -
28 - -
29 5A Engine management system, Starter motor, Electrical power management
30 10A Heated wiper park
31 - -
32 10A Steering wheel
33 5A Transfer box
34 5A 48v system
35 5A Headlamp leveling
36 - -
37 - -
38 - -
39 5A Hybrid vehicle powertrain
40 15A Transmission, Terrain response switch, Gear selector
41 - -
42 25A Left-side headlight
43 5A Hybrid vehicle powertrain
44 25A Right-side headlight
45 - -
46 -  -
47 - -
48 - -
49 5A Engine management system
50 - -
51 10A Engine management system
52 - -
53 - -
54 - -
55 - -
56 - -
57 - -
58 - -
59 - -
60 5A Heated wiper park



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
1 15A Hybrid vehicle powertrain/cooling fan (vehicles with a 48v system)
2 - -
3 - -
4 10A Left-side rear seat armrest, Calf rest heater
5 10A Right-side rear seat armrest, Calf rest heater
6 - -
7 5A Blind spot monitoring
8 20A Driver's heated seat
9 15A Driver's seat switches, Front passenger's seat switches
10 20A Front passenger's heated seat
11 20A Right-side rear heated seat
12 15A Flashlight, Rear seat switches
13 20A Left-side rear heated seat
14 - -
15 30A Fuel system
16 15A Trailer socket
17 10A Diesel Exhaust Fluid (DEF)
18 20A Loadspace accessory power socket
19 20A Rear accessory socket and USB
20 20A Cubby box accessory socket
21 20A Loadspace accessory socket
22 20A Accessory socket (long wheelbase vehicles only)
23 10A Lower touchscreen
24 10A Instrument panel
25 5A Air suspension
26 2A Electronic toll collection
27 10A Parking aid, Rear-view mirror, Cameras, Blind spot assist
28 10A Head-Up Display (HUD)
29 5A Adaptive Cruise Control
30 30A Heated rear screen, Radio frequency filter
31 - -
32 - -
33 15A Rear wiper
34 5A 48v battery
35 15A Rear console
36 15A Rear console
37 30A Driver's seat
38 - -
39 30A Deployable side steps
40 10A External sound generator (hybrid vehicles only)
41 5A Rear console, Clock
42 20A Right-side rear seat
43 20A Keyless locking
44 15A Trailer socket
45 15A Engine management system, Fuel system
46 15A Fuel system
47 - -
48 10A Touchscreen
49 10A Gesture tailgate
50 15A Entertainment and information systems
51 15A Entertainment and information systems
52 10A Portable media
53 10A Portable media
54 5A Occupant sensor
55 15A Air suspension
56 10A Air suspension, Continuous variable dampers
57 5A Keyless locking
58 30A Front passenger's seat, Left-side rear seat
59 5A Rear-view camera
60 - -
