Kia Forte 2024 Fuse Box Info

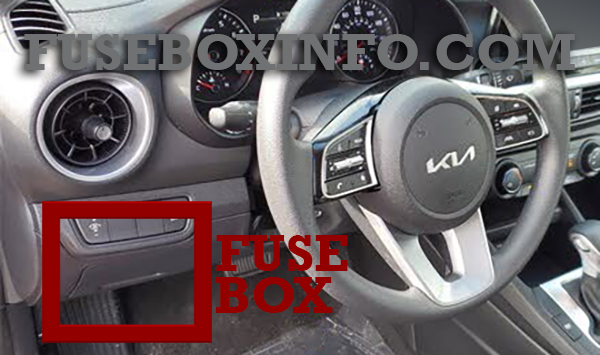

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MEMORY | 10A | Air Conditioner Control Module, Instrument Cluster |
| MODULE 1 | 10A | Key Interlock Switch, Multipurpose Check Connector, Data Link Connector, ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Hazard Switch, Driver/Passenger Smart Key Outside Handle, Mood Lamp Control Unit, Mood Lamp |
| TRUNK | 10A | Liftgate Relay |
| POWER WINDOWRH | 25A | Power Window Right Handle side Relay |
| POWER WINDOWLH | 25A | Power Window Left Handle side Relay, Driver Safety Power Window Module |
| POWER SEAT DRIVER | 25A | Driver Power Switch |
| MODULE 4 | 7.5A | Front View Camera, IBU (Integrated Body Control Unit), Front Radar, Mood Lamp |
| SEAT HEATER REAR | 15A | Rear Seat Warmer Control Module |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, ECM (Engine Control Module)/PCM (Power train Control Module) |
| SEAT HEATER FRONT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| AMP | 25A | AMP (Amplifier) |
| MULTI MEDIA | 15A | Audio/Video & Navigation Head Unit |
| MODULE 5 | 10A | Audio/Video & Navigation Head Unit, Audio, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Multipurpose Check Connector |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| IBU 1 | 15A | IBU (Integrated Body Control Unit) |
| BRAKE SWITCH | 10A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| IG1 | 25A | Engine Room Junction Block (Fuse - ABS, ECU, TCU, SENEOR) |
| WIPER (LO/HI) | 10A | Engine Room Junction Block (Front Wiper (Low) Relay), Front Wiper Motor, ECM (Engine Control Module)/PCM (Power train Control Module), IBU (Intergrated Body Control Unit) |
| AIR CONDITIONER1 | 7.5A | Engine Room Junction Block (PTC HEATER Relay), Air Conditioner Control Module |
| AIR BAG 2 | 10A | SRS (Supplemental Restraint System) Control Module |
| WASHER | 15A | Multifunction Switch |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| MODULE 7 | 7.5A | Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, ESG_Unit |
| SUNROOF | 15A | Sunroof Motor |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE 3 | 7.5A | Sport Mode Switch, Stop Lamp Switch |
| START | 7.5A | ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay), Transaxle Range Switch, Engine Room Junction Block (PDM 3 (IG1) Relay), IBU (Integrated Body Control Unit), ECM (Engine Control Module), PCM (Power train Control Module) |
| IBU 2 | 7.5A | IBU (Integrated Body Control Unit) |
| AIR BAG INDICATOR | 7.5A | Instrument Cluster, Air Conditioner Control Module |
| MODULE 6 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 2 | 10A | Audio, Audio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Rear USB Charger, Wireless Charger, Power Outside Mirror Switch, Engine Room Junction Block (Power Outlet), AMP |
| AIR BAG 1 | 15A | SRS (Supplemental Restraint System) Control Module |
| AIR CONDITIONER 2 | 10A | Engine Room Junction Block (BLOWER Relay), Air Conditioner Control Module, Blower Resistor, Blower Motor |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALTERNATOR | 150/200A | Fuse : BURGLAR ALARM, ABS1, ABS2, POWER OUTLET1, Alternator |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit |
| BATTERY 5 | 60A | Fuse : ECU3, A/CON, ECU4, WIPER, HORN, Engine Control Relay |
| BATTERY 2 | 60A | Instrument Panel Junction Block |
| BATTERY 3 | 60A | Instrument Panel Junction Block |
| BATTERY 4 | 50A | Instrument Panel Junction Block (Fuse :TRUNK, POWER WINDOW RH, POWER WINDOWLH, POWER SEAT DRIVER, SEAT HEATER FRONT, AMP, SUNROOF1) |
| COOLING FAN 1 | 60A | COOLING FAN 1 Relay |
| REAR HEATED | 40A | Rear Heated Relay |
| BLOWER | 40A | BLOWER Relay |
| IG1 | 40A | Ignition Switch, PDM 3 (IG1) Relay, PDM 2 (ACC) Relay |
| IG2 | 40A | Ignition Switch, START Relay, PDM 4 (IG2) Relay |
| VACUUM PUMP | 20A | Vacuum pump |
| EPB 1 | 60A | EPB (Electronic Parking Brake) |
| PTC HEATER | 50A | PTC Heater Relay |
| EPB 2 | 40A | EPB (Electronic Parking Brake) |
| POWER OUTLET 3 | 20A | Front Power Outlet |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| TCU 1 | 15A | TCM (Transmission Control Module) |
| FUEL PUMP | 20A | Fuel Pump Relay |
| COOLING FAN 2 | 30A | COOLING FAN 3 Relay, COOLING FAN 2 Relay |
| BATTERY 1 | 40A | Instrument Panel Junction Block (LONG TERM LOAD LATCH RELAY, Fuse : MODULE1,SEAT HEATER REAR, DOOR LOCK, IBU1, BRAKE SWITCH, AIR BAG2) |
| DCT 1 | 40A | TCM (Transmission Control Module) |
| DCT 2 | 40A | TCM (Transmission Control Module) |
| ABS 1 | 40A | ABS (Anti-lock brake system) Control Module, ESC (Electronic Stability Control) Control Module |
| ABS 2 | 30A | ABS (Anti-lock brake system) Control Module, ESC (Electronic Stability Control) Control Modu |
| POWER OUTLET 1 | 40A | Power Outlet Relay |
| SENSOR 2 | 10A | [(Gasoline) 2.0 MPI] Purge Control Solenoid Valve, Variable Intake Solenoid Valve, COOLING FAN 3 Relay, COOLING FAN 2 Relay, Oil Control Valve #1/#2, A/CON Relay, CCV, Air Flow Sensor, OCV #3 [(Gasoline) 1.6 T-GDi] Oil Control Valve #1/#2, CCV, Cooling Fan 1 Relay, PCSV, RCV |
| ECU 2 | 10A | [(Gasoline) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU 1 | 20A | [(Gasoline) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| INJECTOR | 15A | [(Gasoline) 2.0 MPI] INJECTOR #1~#4 |
| SENSOR 1 | 15A | [(Gasoline) 1.6 T-GDi] Oxygen Sensor (UP/Down) [(Gasoline) 2.0 MPI] Oxygen Sensor (UP/Down) |
| IGNITION COIL | 20A | [(Gasoline) 1.6 T-GDI, (Gasoline) 2.0 MPI] Ignition Coil #1~#4 |
| ECU 3 | 15A | [(Gasoline) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module) |
| AIRCONDITIONER | 10A | Air Conditioner Relay |
| ECU 5 | 10A | [(Gasoline) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| SENSOR 4 | 15A | [(Gasoline) 1.6 T-GDi] Electric Vacuum Pump |
| ABS 3 | 10A | ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module, EPB (Electronic Parking Brake) |
| TCU 2 | 15A | [(Gasoline) 2.0 MPI] Transaxle Range Switch [(Gasoline) 1.6 T-GDI] Transaxle Range Switch, TCM(Transmission Control Module) |
| SENSOR 3 | 10A | FUEL PUMP Relay |
| ECU 4 | 15A | [(Gasoline) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| WIPER | 25A | Wiper Relay |
| HORN | 15A | Horn Relay |
