Kia Forte 2020 Fuse Box Info

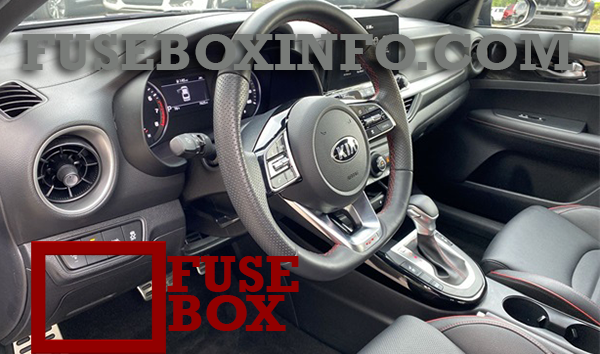

Passenger fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

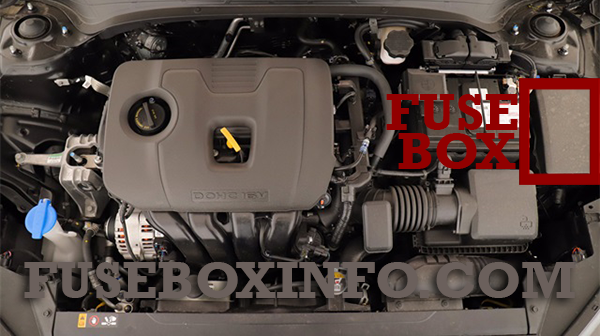

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MEMORY 1 | 10A | Driver IMS (Integrated memory system) Module,Air Conditioner Control Module, Instrument Cluster |
| MODULE 1 | 10A | Key Interlock Switch,Data Link Connector, Hazard Switch, Driver/Passenger Smart Key Outside Handle, ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Mood_LP_Unit |
| TRUNK | 10A | Trunk Relay |
| POWER WINDOW RH | 25A | Power Window Right Handle side Relay |
| POWER WINDOW LH | 25A | Power Window Left Handle side Relay, Driver Safety Power Window Module |
| POWER SEAT DRIVER | 25A | Driver Seat Manual Switch |
| MODULE 4 | 7.5A | Lane Keeping Assist Unit, IBU (Integrated Body Control Unit), Forward Collision Avoidance Assist Unit, Blind-Spot Collision Warning Unit Left Handle side/Right Handle side |
| SEAT HEATER REAR | 15A | Rear Seat Warmer Control Module |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, ECM (Engine Control Module)/PCM (Power train Control Module) |
| SEAT HEATER FRONT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| AMP | 25A | AMP (Amplifier) |
| MULTI MEDIA | 15A | Audio/Video & Navigation Head Unit |
| MODULE 5 | 10A | Crash Pad Switch, Head Lamp Left Handle side/Right Handle side, Auto Transmission Shift Lever Indicator, Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, ICM (Integrated Circuit Module) Relay Box (Two Turn Unlock Relay), Driver IMS (Intergrated memory system) Module |
| IBU 1 | 15A | IBU (Integrated Body Control Unit) |
| BRAKE SWITCH | 10A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| IG1 | 25A | Engine Room Junction Block (Fuse - ABS 3, ECU 5, SENSOR 4, TCU 2) |
| WIPER (LO/HI) | 10A | Engine Room Junction Block (Front Wiper (Low) Relay), Front Wiper Motor, ECM (Engine Control Module)/PCM (Power train Control Module), IBU (Integrated Body Control Unit) |
| AIR CONDITIONER1 | 7.5A | Engine Room Junction Block (Blower, PTC Heater), Air Conditioner Control Module |
| AIR BAG 2 | 10A | SRS (Supplemental Restraint System) Control Module |
| WASHER | 15A | Multifunction Switch |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| MODULE 7 | 7.5A | Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| SUNROOF 1 | 15A | Sunroof Motor, ESG_Unit |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE 3 | 7.5A | Sport Mode Switch, Stop Lamp Switch |
| START | 7.5A | ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay), Transmission Range Switch, IBU (Integrated Body Control Unit), ECM (Engine Control Module)/PCM (Power train Control Module), Engine Room Junction Block (Start) |
| IBU 2 | 7.5A | IBU (Integrated Body Control Unit) |
| AIR BAG INDICATOR | 7.5A | Instrument Cluster, Air Conditioner Control Module |
| MODULE 6 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 2 | 10A | Audio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Rear USB Charger, Wireless Charger, AMP (Amplifier), Power Outside Mirror Switch, Engine Room Junction Block (Power Outlet) |
| AIR BAG 1 | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| AIR CONDITIONER 2 | 10A | Engine Room Junction Block (BLOWER Relay), Air Conditioner Control Module, Blower Resistor, Blower Motor |
| POWER OUTLET | 20A | Cigarette Lighter |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALTERNATOR |
200A (NU 2.0L AKS) 150A (GAMMA 1.6L T-GDI) |
Fuse : BURGLAR ALARM, ABS1, ABS2, POWER OUTLET1, Alternator |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit |
| B+5 | 60A | Fuse : ECU 3, ECU 4, HORN, WIPER, A/C, Engine Control Relay |
| B+2 | 60A | Instrument Panel Junction Block |
| B+3 | 60A | Instrument Panel Junction Block |
| B+4 | 50A | Instrument Panel Junction Block (Fuse : POWER WINDOW LH, POWER WINDOW RH, TRUNK, SUNROOF 1, SEAT HEATER FRONT, AMP, POWER SEAT DRIVER) |
| COOLING FAN 1 | 60A | [GAMMA 1.6L T-GDI] Cooling Fan 1 Relay |
| REAR HEATED | 40A | Rear Heated Relay |
| BLOWER | 40A | BLOWER Relay |
| IG1 | 40A | Ignition Switch, PDM #2 (ACC) Relay, PDM #3 (IG1) Relay |
| IG2 | 40A | Ignition Switch, PDM #4 (IG2) Relay, START Relay |
| PTC HEATER | 50A | PTC Heater Relay |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| TCU 1 | 15A | [GAMMA 1.6L T-GDI] TCM (Transmission Control Module) |
| VACUUM PUMP | 20A | [GAMMA 1.6L T-GDI] Vacuum Pump |
| FUEL PUMP | 20A | Fuel Pump Relay |
| COOLING FAN 2 | 30A | [NU 2.0L AKS] Cooling Fan 2 Relay, Cooling Fan 3 Relay |
| B+1 | 40A | Instrument Panel Junction Block (Long Term Load Latch Relay, Fuse : (BRAKE SWITCH, IBU 1, AIR BAG 2, DOOR LOCK, SEAT HEATER REAR, MODULE 1)) |
| DCT 1 | 40A | [GAMMA 1.6L T-GDI] TCM (Transmission Control Module) |
| DCT 2 | 40A | [GAMMA 1.6L T-GDI] TCM (Transmission Control Module) |
| ABS 1 | 40A | ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module |
| ABS 2 | 30A | ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module |
| POWER OUTLET 1 | 40A | Power Outlet Relay |
| SENSOR 2 | 10A |
[NU 2.0L AKS] Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3, Canister Close Valve, Mass Air Folw Sensor, A/Con Relay, E/R Junction Block (Cooling Fan Relay 1), Variable Intake Sensor [GAMMA 1.6L T-GDI] Purge Control Solenoid Valve, Oil Control Valve #1/#2, Canister Close Valve, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan Relay 1) |
| ECU 2 | 10A | [GAMMA 1.6L T-GDI] ECM (Engine Control Module) |
| ECU 1 | 20A |
[NU 2.0L AKS] PCM (Power train Control Module) [GAMMA 1.6L T-GDI] ECM (Engine Control Module) |
| INJECTOR | 15A | [NU 2.0L AKS] Injector #1~#4 |
| SENSOR 1 | 15A |
[NU 2.0L AKS] Oxygen Sensor (Up), Oxygen Sensor (Down) [GAMMA 1.6L T-GDI] Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A |
[NU 2.0L AKS] Ignition Coil #1~#4 [GAMMA 1.6L T-GDI] Ignition Coil #1~#4 |
| ECU 3 | 15A |
[NU 2.0L AKS] PCM (Power train Control Module) [GAMMA 1.6L T-GDI] ECM (Engine Control Module) |
| A/CON COMP | 10A | [NU 2.0L AKS] A/Con Relay |
| ECU 5 | 10A |
[NU 2.0L AKS] PCM (Power train Control Module) [GAMMA 1.6L T-GDI] ECM (Engine Control Module) |
| SENSOR 4 | 15A | [GAMMA 1.6L T-GDI] Vacuum Pump |
| ABS 3 | 10A | ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module |
| TCU 2 | 15A |
[NU 2.0L AKS] Transaxle Range Switch [GAMMA 1.6L T-GDI] Transaxle Range Switch, TCM |
| SENSOR 3 | 10A |
[NU 2.0L AKS] Fuel Pump Relay [GAMMA 1.6L T-GDI] Fuel Pump Relay |
| ECU 4 | 15A |
[NU 2.0L AKS] PCM (Power train Control Module) [GAMMA 1.6L T-GDI] ECM (Engine Control Module) |
| WIPER | 25A |
[NU 2.0L AKS] Wiper Relay [GAMMA 1.6L T-GDI] Wiper Relay |
| HORN | 15A |
[NU 2.0L AKS] Horn Relay [GAMMA 1.6L T-GDI] Horn Relay |
