Kia Rondo 2017 Fuse Box Info

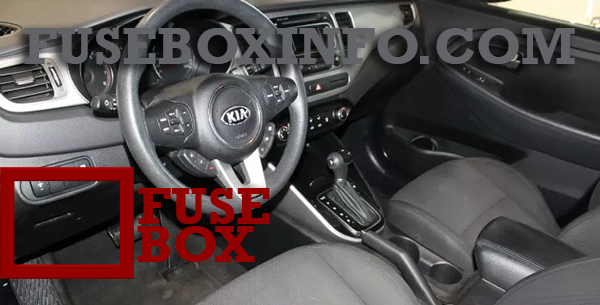

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

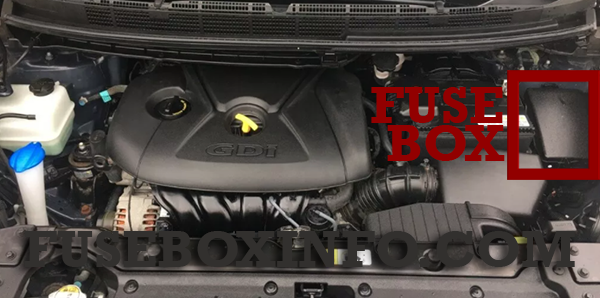

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° and Name | Rating | Functions |
| 1. PDM 2 | 10A | Start/Stop Button Switch, Immobilizer Module |
| 2. MULTI MEDIA | 15A | DC-DC Converter (Audio), A/V & Navigation Head Unit, Audio |
| 3. MODULE 3 | 7.5A | Seat Warmer Control Module, Rear Seat Warmer Module, Passenger Seat Warmer Module, DC-DC Converter (AMP), Auto Head Lamp Leveling Device Module, Rain Sensor, Head Lamp Leveling Device Actuator LH/RH, A/C Control Module, Electro Chromic Mirror, Head Lamp Leveling Device Switch, A/V Navigation Head Unit |
| 4. CLUSTER | 7.5A | Instrument Cluster, DC-DC Converter (Audio) |
| 5. MDPS | 7.5A | MDPS Unit |
| 6. START | 7.5A | ICM Relay Box (B/Alarm Relay), Ignition Lock Switch [A/T - Transaxle Range Switch], [M/T - E/R Junction Block (RLY. 10), ECM/PCM, Smart Key Control Module] |
| 7. INTERIOR LAMP | 10A | Driver/Passenger Power Outside Mirror, Driver/Passenger Foot Lamp, Ignition Key ILL. & Door Warning Switch, Overhead Console Lamp, Room Lamp, Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Luggage Lamp, Portable Lamp |
| 8. PDM | 20A | Smart Key Control Module |
| 9. MEMORY 2 | 7.5A | RF Receiver |
| 10. ECU | 10A | Smart Key Control Module, Immobilizer Module, Vehicle Speed Sensor, ECM/PCM, Air Flow Sensor (D4FD), Glow Relay Unit |
| 11. ABS | 10A | ABS/ESC Control Module |
| 12. TCU | 15A | TCM (D4FD), Transaxle Range Switch (A/T, DCT), E/R Junction Block (Fuse - F27) (M/T) |
| 13. MODULE 4 | 7.5A | BCM |
| 14. A/CON SW | 7.5A | A/C Control Module |
| 15. MEMORY 1 | 10A | Instrument Cluster, Auto Light & Photo Sensor, Tire Pressure Monitoring Module, Ultrasonic Instrusion Protection Sensor, A/C Control Module, Data Link Connector, Siren Control Module, Clock, BCM |
| 16. MODULE 1 | 7.5A | Smart Parking Assist Control Module, Stop Lamp Switch, Tire Pressure Monitoring Module, Clutch Sensor (M/T), Front Parking Assist Sensor (Center)/(Side) LH/RH, Front Parking Assist Sensor (In)/(Out) LH/RH, Rear Parking Assist Sensor Center LH/RH, Crash Pad Switch, Rear Parking Assist Sensor (In)/(Out) LH/RH, Sport Mode Switch, Parking Assist Buzzer, Multipurpose Check Connector, Electric Parking Brake Module, Lane Departure Warning Module, Blind Spot Detection Radar LH/RH |
| 17. POWER OUTLET 1 | 20A | Rear Power Outlet, Cigarette Lighter, Front Power Outlet |
| 18. MODULE 6 | 10A | A/V & Navigation Head Unit, DC-DC Converter (Audio/AMP), Audio, Clock, Smart Key Control Module, BCM, E/R Junction Block (RLY. 7), AMP, Power Outside Mirror Switch |
| 19. A/BAG | 15A | SBR Control Module, Seat Belt Reminder IND.,Instrument Cluster Door Lock & PAB On/Off IND., SRS Control Module, A/C Control Module |
| 20. P/WDW LH | 25A | Rear Safety Power Window Module LH, Driver/Passenger Safety Power Window Module, Power Window LH Relay |
| 21. HTD MIRR | 10A | A/C Control Module, ECM/PCM, Driver/Passenger Power Outside Mirror |
| 22. MODULE 5 | 7.5A | Portable Lamp, Rear Seat Warmer Module, Panorama Sunroof Assembly, Driver/Passenger CCS Control Module, Seat Warmer Control Module, Passenger Seat Warmer Module, E/R Junction Block (RLY. 8) |
| 23. MODULE 7 | 7.5A | BCM, Smart Key Control Module |
| 24. HTD STRG | 15A | Steering Wheel Heater |
| 25. S/HEATER RR | 15A | Rear Seat Warmer Module |
| 26. AMP | 25A | DC-DC Converter (AMP), AMP |
| 27. SUNROOF | 20A | Panorama Sunroof Assembly |
| 28. S/HEATER FRT | 20A | Driver/Passenger CCS Control Module, Seat Warmer Control Module, Passenger Seat Warmer Module |
| 29. MODULE 2 | 7.5A | ICM Relay Box (Turn Signal Lamp Sound Relay, Folding/Unfolding Relay), Key Solenoid, Sport Mode Switch, Console Switch LH/RH, Rear Power Window Switch LH/RH |
| 30. A/CON | 7.5A | Diesel Block (RLY. 2, RLY. 3), E/R Junction Block (RLY. 2), A/C Control Module, Cluster Ionizer |
| 31. WIPER | 15A | Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay), Multifunction Switch |
| 32. P/WDW RH | 25A | Rear Safety Power Window Module RH, Driver/Passenger Safety Power Window Module, Power Window RH Relay |
| 33. P/SEAT DRV | 30A | Driver Seat Manual Switch |
| 34. FOG LAMP RR | 10A | ICM Relay Box (Rear Fog Lamp Relay) |
| 35. DR LOCK | 20A | Tail Gate Open Relay, Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS Unit |
| B+1 | 60A | Smart Junction Block (IPS 1, IPS 2, IPS 3, IPS 4, Fuse - F2/F9/F22/F29/F36) |
| IG2 | 40A | RLY. 10 (Start Relay), Ignition Switch (W/O Button Start), RLY. 3 (PDM 3 (IG2) Relay, With Button Start) |
| ABS 1 | 40A | ABS/ESC Control Module |
| RR HTD | 40A | RLY. 6 (Rear Defogger Relay) |
| BLOWER | 40A | RLY. 2 (Blower Relay) |
| ABS 2 | 40A | ABS/ESC Control Module, Multipurpose Check Connector |
| B+2 | 60A | Smart Junction Block (IPS 5, IPS 6, IPS 7, IPS 8, Fuse - F31/F37/F38) |
| B+4 | 50A | E/R Junction Block (Fuse - F29/F30/F31) |
| EPB 1 | 30A | Electric Parking Brake Module |
| C/FAN | 50A | RLY. 1 (C/Fan 1 Relay), RLY. 5 (C/Fan 2 Relay) |
| EPB 2 | 30A | Electric Parking Brake Module |
| H/LP WASHER | 20A | RLY. 8 (Head Lamp Washer Relay) |
| BRAKE SWITCH | 10A | Stop Lamp Switch, Smart Key Control Module |
| POWER OUTLET 2 | 30A | RLY. 7 (Power Outlet Relay) |
| FUEL PUMP | 15A | RLY. 12 (Fuel Pump Relay) |
| DEICER | 15A | RLY. 4 (Deicer Relay) |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| B+3 | 50A | Smart Junction Block (Leak Current Autocut Device, Fuse - F30/F32/F33/F39) |
| IG1 | 40A | RLY. 9 (PDM 1 (ACC) Relay), RLY. 11 (PDM 2 (IG 1) Relay), Ignition Switch |
| ECU 5 | 40A | EMS Block (Fuse - F32/F33/F34, Engine Control Relay) |
| B/UP LP | 10A |
MT - Back-Up Lamp Switch, A/T - Rear Combination Lamp (In) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit, Audio, Instrument Cluster |
| WIPER (LH) | 25A | Front Wiper Motor LH |
| WIPER (RH) | 25A | Front Wiper Motor RH |
| ECU 4 | 15A | ECM/PCM |
| HORN | 15A | Horn Relay |
| ECU 3 | 15A | PCM (A/T), ECM (M/T) |
| B/ALARM | 10A | B/Alarm Horn Relay, Horn Relay |
| INJECTOR | 10A | G4NA : Injector #1/#2/#3/#4 |
| ECU 2 | 10A |
G4FD : PCM (A/T), ECM (M/T) G4NC : PCM (A/T), ECM (M/T) |
| IGN COIL 1 | 20A | Ignition Coil #1/#2/#3/#4, Condenser |
| SENSOR 2 | 10A |
G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Junction Block (RLY. 1, RLY. 5) G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust), Oil Level Sensor (G4NC), E/R Junction Block (RLY. 1, RLY. 5) |
| ECU 1 | 20A | PCM (A/T), ECM (M/T) |
| SENSOR 1 | 10A | Oxygen Sensor (Up/Down), Variable Intake Solenoid Valve, Purge Control Solenoid Valve |
