Kia Sedona 2021 Fuse Box Info

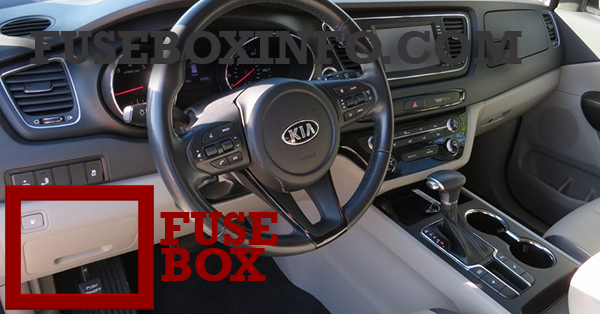

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| ECU | 10A | PCM, Smart Key Control Module/Immobilizer Module |
| MODULE4 | 7.5A | Head Lamp Leveling Device Actuator LH/RH, Multipurpose Check Connector, Bezel Switch, Electro Chromic, A/V & Navigation Head Unit, A/C Control Module, Heater Control Module, Passenger Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat Heater Control Module, Auto Head Leveling Device Module, ATM Shift Lever ILL. |
| MODULE3 | 10A | LDWS Module, Stop Lamp, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor LH/RH (CENTER), Rear Parking Assist Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor LH/RH (CENTER), Blind Spot Detection Radar LH/RH, FCA(Forward Collision-Avoidance Assist) |
| MODULE5 | 7.5A | Rear Seat Heater Control Module, AC Inverter Unit, Heater Control Module, Passenger Ventilation Seat Control Module, Portable Lamp, Around View Unit |
| MODULE6 | 7.5A | BCM, Smart Key Control Module |
| WIPER RR | 15A | Rear Wiper Motor, Wiper RR Relay |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE8 | 10A | DBL UNIT |
| A/CON1 | 7.5A | A/C Control Module, Ionizer, Rear A/C Control Switch, PCB Block (Blower Relay, Blower RR Relay) |
| MEMORY2 | 10A | Data Link Connector, Instrument Cluster, Digital Clock, A/C Control Module, BCM, Power Sliding Door Module, Driver Door Module, Passenger Safety Power Window Switch, Driver IMS Control Module |
| SMART KEY3 | 10A | Start/Stop Button Switch, Immobilizer Module |
| POWER OUTLET2 | 20A | Console Power Outlet |
| A/BAG IND | 7.5A | Instrument Cluster, Digital Clock, A/C Control Module(Auto) |
| WASHER | 15A | Multifunction Switch, BCM |
| HEATED STEERING | 15A | Clock Spring (Steering Wheel Switch) |
| MEMORY1 | 10A | Clock Spring (Steering Wheel Switch) |
| SMART KEY1 | 25A | Smart Key Control Module |
| POWER OUTLET3 | 20A | Rear Power Outlet |
| MODULE2 | 7.5A | BCM, Driver Door Module, Passenger Door Module |
| MULTIMEDIA | 15A | USB Charger #1/#2, A/V & Navigation Head Unit |
| S/ROOF FRT | 20A | Front Sunroof Motor |
| AMP | 25A | AMP |
| IG1 | 20A | PCB BLOCK (Fuse - ABS3, TCU, MDPS, CRUISE) |
| SMART KEY2 | 7.5A | Smart Key Control Module |
| INTERIOR LAMP | 10A | Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vinity Lamp Switch LH/RH, Glove Box Lamp, Key Warning Switch |
| START | 7.5A | With IMMO./Smart Key : Transmission Range Switch, W/O IMMO. : PCB Block (B/Alarm Relay) |
| S/ROOF RR | 25A | Rear Sunroof Motor |
| DOOR LOCK | 20A | Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay |
| FOG LAMP REAR | 10A | - |
| MODULE1 | 10A | Audio, A/V & Navigation Head Unit, Around View Unit, BCM, Overhead Console Lamp, MTS Module, Digital Clock, USB Charger #1/#2 |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| A/CON2 | 7.5A | A/C Control Module, Blower Resistor (Manual) |
| HEATED MIRROR | 10A | Passenger Power Outside Mirror, A/C Control Module |
| BRAKE SWITCH | 7.5A | Smart Key Control Module, Stop Lamp Switch |
| S/HEATER RR | 25A | Rear Seat Heater Control Module |
| P/WINDOW LH | 25A | Driver Safety Window Module, Driver Door Module, Rear Power Window Switch LH, Rear Safety Power Window Switch LH, Rear Safety Power Window Module LH |
| MODULE7 | 7.5A | Key Inter Lock Solenoid, Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch, Electro Chromic Mirror |
| POWER OUTLET1 | 20A | Front Power Outlet |
| P/SEAT (DRV) | 30A | Driver Manual Switch, Driver Lumbar Support Switch, Driver IMS Control Module |
| P/WINDOW RH | 25A | Passenger Safety Window Module, Passenger Power Window Motor, Passenger Door Module, Rear Power Window Switch RH, Rear Safety Power Window Switch RH, Rear Safety Power Window Module RH |
| S/HEATER FRT | 20A | Heater Control Module, Passenger Ventilation Seat Control Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| COOLING FAN | 80A | Cooling Fan Unit |
| ABS1 | 40A | ESC Module, Multipurpose Check Connector |
| ABS2 | 40A | ESC Module |
| INVERTER | 30A | AC Inverter Unit |
| H/LAMP HI | 10A | H/LAMP HI Solenoid |
| EPB1 | 15A | EPB Unit |
| EPB2 | 15A | EPB Unit |
| TCU | 15A | Transmission Unit |
| P/SEAT (PASS) | 30A | Passenger Manual Switch |
| B+4 | 50A | Smart Junction Block (IPS Control Module, IPS3, IPS4, IPS5, IPS6, Fuse - MODULE7) |
| POWER TAIL GATE | 40A | Power Tail Gate Module |
| B+2 | 50A | Smart Junction Block (Leak Current Autocut Device, Fuse - P/SEAT DRV, P/WDW RH), Seat Heater Rear, Interior Lamp, Multimedia, Memory |
| IG1 | 40A | With Smart Key : PDM1/2 Relay, W/O Smart Key : Ignition Switch |
| IG2 | 40A | Start Relay, With Smart Key : PDM3 Relay, W/O Smart Key : Ignition Switch |
| B+1 | 50A | Smart Junction Block (IPS Control Module, Fuse - P/WDW LH, S/HEATER FRT, DR LOCK) |
| BLOWER | 40A | Blower Relay |
| TRAILER | 30A | Trailer Power Outlet |
| B+5 | 50A | Smart Junction Block (Motor Driver, Power Outlet Relay, Fuse - S/ROOF FRT, S/ROOF RR, BRAKE SWITCH, SMART KEY1, SMART KEY3, AMP), Power Outlet1, Power Outlet2 |
| PSD1 | 40A | Power Sliding Door Module |
| PSD2 | 40A | Power Sliding Door Module |
| B+3 | 50A | Smart Junction Block (IPS Control Module, IPS1, IPS2) |
| MDPS | 125A | MDPS Unit (Rack) |
| BLOWER RR | 40A | Blower RR Relay |
| SENSOR (B+) | 10A | Battery Sensor |
| B/ALARM HORN | 15A | B/Alarm Horn Relay |
| FUEL LID | 10A | Fuel Lid Relay |
| DEICER | 15A | Deicer Relay |
| DRL | 10A | DRL Relay |
| FUEL PUMP | 15A | Fuel Pump Relay |
| HORN | 15A | Horn Relay |
| WIPER | 25A | Front Wiper (Low) Relay |
| ECU3 | 30A | Engine Control Relay, Fuse - ECU1 |
| FUEL HEATER | 30A | - |
| REAR HEATED | 40A | Rear Heated Relay |
| SENSOR5 | 10A | - |
| TCU | 10A | Transmission Range Switch |
| MDPS | 10A | MDPS Unit (Rack) |
| DCU | 10A | - |
| B/UP LAMP | 10A | Audio, A/V & Navigation Head Unit, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror |
| A/CON | 7.5A | Rear A/C Control Switch, A/C Control Module |
| ECU1 | 15A | PCM |
| ABS3 | 7.5A | ESC Module, Steering Angle Sensor |
| SENSOR4 | 10A | Fuel Pump Relay |
| ECU2 | 20A | ECU Unit |
| SENSOR1 | 15A | Oxygen Sensor #1/#2/#3/#4, PCM, E/R Junction Box (Cooling Fan1 Relay) |
| SENSOR2 | 10A | PCM, Canister Close Valve, Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake), Oil Control Valve #1/#2 (Exhaust) |
| SENSOR3 | 10A | PCM, Injector |
| IGN COIL | 20A | Ignition Coil #1~#6, Condensor #1/#2 |
| ECU3 | 20A | ECU Unit |
