Hyundai Creta 2023 Fuse Box Info

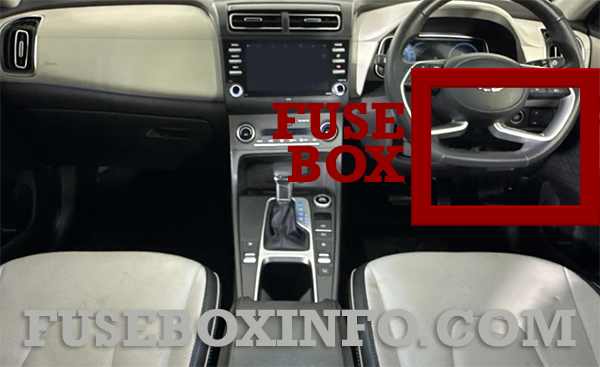

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

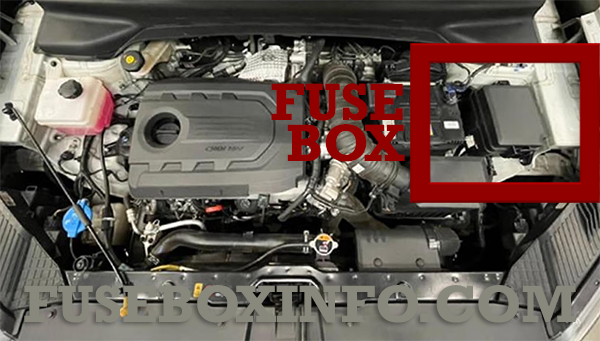

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| S/VENT FRT | 10A | VENTILATION SEAT |
| T/GATE | 10A | TAILGATE ACTUATOR |
| DOOR LOCK | 20A | DOOR ACTUATOR |
| A/BAG IND | 7.5A | CLUSTER |
| A/BAG | 15A | ACU |
| P/OUTLET 2 | 20A | POWER OUTLET |
| MODULE 6 | 7.5A | IBU |
| SAFETY P/ WINDOW LH |
25A | SAFETY ECU |
| SAFETY P/ WINDOW RH |
25A | SAFETY ECU |
| MODULE 1 | 7.5A | O/S MIRR SW |
| A/C 2 | 10A | MTC, FATC, ECU |
| MODULE 4 | 7.5A | CONSOLE SWITCH, ESC SWITCH |
| MODULE 3 | 7.5A | STOP SWITCH, ATM LEVER |
| USB CHARGE |
10A | REAR USB CHARGER |
| RR WIPER | 10A | REAR WIPER MOTOR |
| P/WINDOW RH |
25A | POWER WINDOW MOTOR |
| AMP | 25A | EXT. AMP |
| WIPER FRT 1 |
10A | FRONT WIPER MOTOR |
| IBU 1 | 15A | IBU (INTEGRATED BODY CONTROL UNIT) |
| MULTIMEDIA | 15A | AUDIO |
| ABS | 10A | ABS (ANTI-LOCK BRAKE SYSTEM) |
| CLUSTER | 7.5A | CLUSTER |
| MODULE 2 | 10A | O/S MIRR SW, AMP, IBU,AUDIO |
| A/C 1 | 7.5A | MTC,FATC |
| SUNROOF | 20A | SUNROOF MOTOR |
| P/WINDOW LH |
25A | POWER WINDOW MOTOR |
| P/SEAT(DRV) | 20A | DRIVE POWER SEAT |
| START | 7.5A | INHIBITOR SWITCH, IGNITION LOCK SWITCH |
| MODULE 5 | 10A | FATC, C/PAD SWITCH, AUDIO, CONSOLE SWITCH |
| MDPS | 7.5A | MDPS |
| P/OUTLET 1 | 20A | POWER OUTLET |
| MODULE 7 | 7.5A | IONIZER, SEAT ECU |
| WASHER | 15A | MULTI FUNCTION SWITCH |
| HEATED | 10A | RR HEATED MIRROR, ECU |
| BRAKE SWITCH |
10A | STOP SWITCH |
| MEMORY 2 | 10A | CLUSTER, FATC, MTC |
| IG 1 | 25A | ECU,PCU,SENSOR |
| IBU 2 | 7.5A | IBU (INTEGRATED BODY CONTROL UNIT) |
| WIPER FRT 2 |
25A | FRONT WIPER MOTOR |

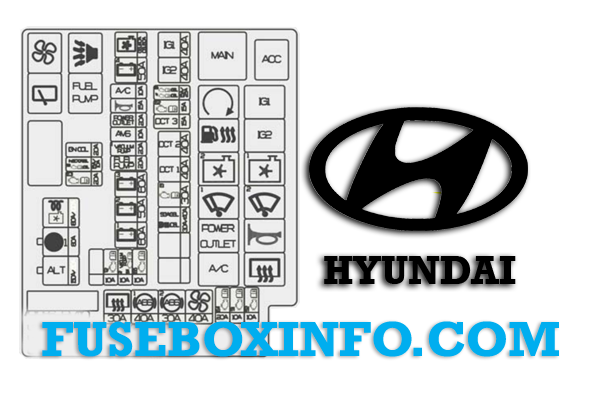

Engine compartment fuse box:
