Hyundai Atos 2021 Fuse Box Info

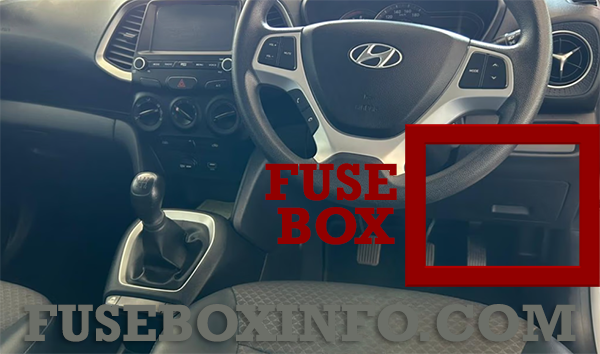

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

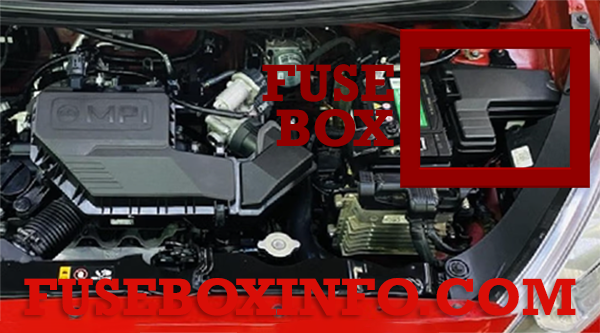

Engine compartment fuse box location:
Fuse Box Diagram | Layout

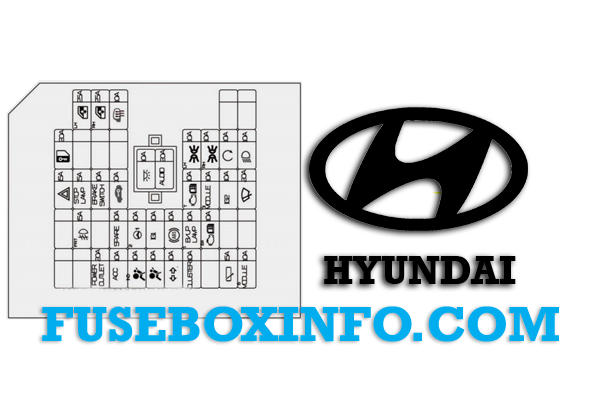

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| P/OUTLET | 20A | Power Outlet, Cigarette Lighter |
| ACC | 10A | Smart Phone Charger, Power Outside Mirror Switch, Audio, A/V & Navigation Head Unit, BCM |
| A/BAG IND | 10A | Instrument Cluster |
| AIR BAG | 10A | SRS Control Module |
| T/LAMP | 10A | Hazard Switch |
| CLUSTER | 10A | Instrument Cluster |
| RR WIPER | 15A | Rear Wiper Motor, Multifunction Switch |
| MODULE 6 | 10A | BCM |
| FRT FOG | 15A | I/P Junction Block (Front Fog Lamp Relay) |
| MDPS 2 | 10A | MDPS Unit |
| IG1 | 10A | BCM, Audio, A/V & Navigation Head Unit |
| ABS | 10A | ABS Control Module, ESP Control Module, ESP Switch |
| B/UP LAMP1 | 10A | Back-Up Lamp Switch, E/R Junction Block (RLY.3) |
| ECU 4 | 10A | ECM, Immobilizer Module |
| HAZARD | 15A | I/P Junction Block (Hazard Lamp Relay), Hazard Switch |
| STOP LAMP | 15A | Stop Signal Electronic Module |
| BRAKE SW | 10A | Stop Lamp Switch |
| IMMO | 10A | Immobilizer Module |
| TCU | 10A | TCM, Vehicle Speed Sensor, ATM Shift Lever IND. |
| MODULE 3 | 10A | Stop Lamp Switch |
| IG2 | 10A | I/P Junction Block (Power Window Relay), A/C Control Module, E/R Junction Block (RLY.12), Head Lamp Leveling Actuator LH/RH |
| FRT WIPER | 20A | Front Wiper Motor, Multifunction Switch |
| DR LOCK | 20A | I/P Junction Block (Door Lock Relay), Driver Door Lock Latch |
| ROOM | 10A | Room Lamp, Receiver Unit, BCM, Instrument Cluster, Data Link Connector |
| AUDIO | 20A | Audio, A/V & Navigation Head Unit |
| TAIL LH | 10A | Rear Combination Lamp LH, Head Lamp LH |
| TAIL RH | 10A | Rear Combination Lamp LH, Head Lamp LH Rear Combination Lamp RH, License Lamp, Haed Lamp RH, Clock Spring, Hazard Switch, ESP Switch, HLLD Switch, Instrument Cluster, A/C Control Module, ATM Shift Lever IND., Audio, A/V & Navigation Head Unit, USB Jack |
| START | 10A | ECM, E/R Junction Block (RLY.2) |
| H/LAMP | 10A | E/R Junction Block (RLY.5, RLY.6) |
| P/WDW LH | 25A | Front Power Window Switch |
| P/WDW RH | 25A | Front Power Window Switch |
| HTD MIRR | 10A | Driver/Passenger Power Outside Mirror, ECM, A/C Control Module |

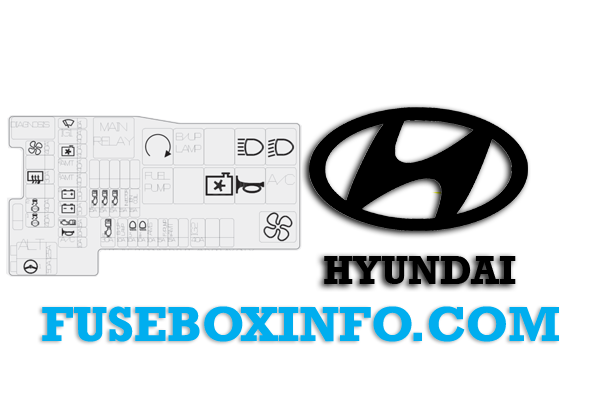

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BLOWER | 40A | E/R Junction Block (RLY.12) |
| RR HTD | 30A | I/P Junction Block (HTD RR Relay) |
| ABS 1 | 40A | ABS Control Module, ESP Control Module |
| ABS 2 | 40A | ABS Control Module, ESP Control Module |
| IG1 | 40A | Ignition Switch |
| C/FAN | 40A | E/R Junction Block (RLY.9) |
| AMT 2 | 40A | [G4HG] :TCM |
| AMT 1 | 40A | [G4HG] :TCM |
| BATT 2 | 50A | I/P Junction Block (F23, F24, F25, F26, F31, Power Window Relay) |
| BATT 1 | 50A | I/P Junction Block (Power Connector Fuse - F35,F36, Tail Lamp Relay) |
| ECU 3 | 15A | [G4HG] :ECM |
| HORN | 10A | E/R Junction Block (RLY.10) |
| A/CON | 10A | E/R Junction Block (RLY.11) |
| ECU 1 | 30A | E/R Junction Block (RLY.1) |
| B/UP LAMP | 10A | [G4HG] :E/R Junction Block (RLY.3) |
| H/LAMP LH | 10A | Head Lamp LH |
| H/LAMP RH | 10A | Head Lamp RH |
| AMS | 10A | [G3LA] :Battery Sensor |
| F/PUMP | 15A | E/R Junction Block (RLY.7) |
| AMT 3 | 15A | [G4HG] :TCM |
| IG2 | 40A | E/R Junction Block (RLY.2), Ignition Switch |
| ECU 2 | 15A | [G3LA] :E/R Junction Block (RLY.11), ECM, Purge Control Solenoid Valve, Oxygen Sensor (Up/Down), Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2 [G4HG] :E/R Junction Block (RLY.11), ECM, Purge Control Solenoid Valve |
| ECU 4 | 15A | [G4HG] :Oxygen Sensor (Up/Down), Front Wheel Sensor RH |
| ECU 5 | 15A | [G3LA] :E/R Junction Block (RLY.9) [G4HG] :E/R Junction Block (RLY.9), Camshaft Position Sensor, Crankshaft Position Sensor |
| INJECTOR | 15A | [G3LA] :E/R Junction Block (RLY.7), Injector #1/#2/#3, ECM [G4HG] :E/R Junction Block (RLY.7), Injector, ECM |
| IGN COIL | 15A | [G3LA] :Ignition Coil #1/#2/#3/#4 [G4HG] :Ignition Coil |
| ALT | 125A | Alternator, E/R Junction Block (F1, F3, F5, F6) |
| MDPS | 50A | MDPS Unit |
| WIPER | 10A | [G3LA]:ECM |
