Hyundai Grand i10 NIOS 2020 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover.

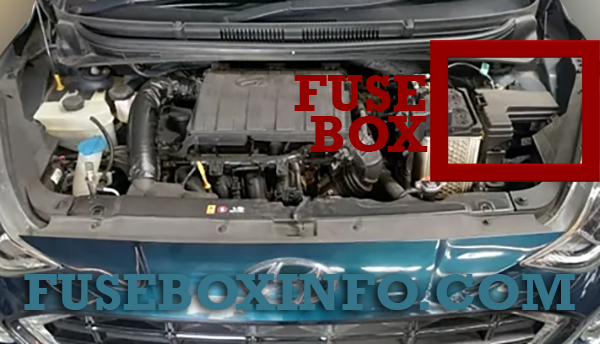

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Inner Compartment Fuse Panel (ICU) | ||
| ROOM LAMP | 10A | PCB/ICU: Room Lamp |
| OUTSIDE MIRROR HEATED |
10A | Outside Mirror Heated |
| POWER WINDOW LH |
25A | FRT Power Window LH |
| SENSOR | 10A | F_Water Sensor |
| POWER OUTLET FRONT |
20A | ICU/PCB: Front Power Outlet |
| IBU1 | 15A | ICU: BODY CONTROL MODULE (IBU) |
| MULTI MEDIA |
20A | ICU: AUDIO |
| POWER WINDOW RH |
25A | FRT Power Window RH |
| TCU | 15A | PCB/ICU: AT : Speed Sensor Out, Inhibit SW. |
| BRAKE SWITCH |
10A | PCB/ICU: Stop Switch |
| MEMORY | 10A | ICU: A/Con (FATC), Cluster |
| START | 7.5A | PCB: Inhibitor Switch, Start Relay |
| FOLDING MIRROR |
10A | ICU/PCB: Folding Mirror |
| MODULE1 | 7.5A | ICU/PCB: Stop Switch |
| Airbag | 10A | ICU/PCB: ACU |
| DOOR LOCK | 20A | ICU: Door Lock |
| ECU | 10A | ICU/PCB: ECU, A_FLOW_SNSR |
| DRL | 10A | ICU: DRL, DRL Position Lamp |
| MODULE6 | 10A | ICU/PCB: OBD |
| HAZARD | 15A | PCB: HAZARD Switch, ICU: IBU (Turn Signal) |
| MODULE2 | 10A | PCB: ESC Switch, ICU: BCM(IBU) *for CNG:CNG_SW:IGN1 |
| MODULE3 | 7.5A | PCB/ICU: FATC, AT Lever Indicator, Head Lamp Projection, Audio Compact, AVN |
| SPARE1 | 10A | ICU: Spare Fuse |
| REAR WIPER |
15A | PCB: RR Wiper Motor, ICU: Washer Motor |
| Airbag INDICATOR |
7.5A | PCB/ICU: Cluster |
| IBU2 | 10A | ICU: BCM (IBU) |
| ABS | 7.5A | PCB/ICU: ABS/ESC Unit |
| FRONT WIPER |
20A | PCB/ICU: MFSW, Wiper Motor |
| A/CON2 | 7.5A | PCB/ICU: MTC, FATC, Dual Switch |
| CLUSTER | 7.5A | PCB/ICU: Cluster |
| ACC | 10A | PCB/ICU: Crash_VDMS_Extension, USB Charger, Audio_B, IBU |
| MDPS | 7.5A | PCB/ICU: Motor Driven Power Steering Unit |
| MODULE5 | 10A | PCB/ICU: Crash_VDMS_Extension |
| MODULE4 | 7.5A | ICU: BCM (IBU) |
| REAR POWER OUTLET |
20A | PCB/ICU: RR Power Outlet |
| A/CON1 | 7.5A | PCB/ICU: FATC, Blower Motor |
| TAIL LH | 7.5A | PCB: Position Lamp LH, Head Lamp LH, RR Combi Lamp LH |
| OUTSIDE MIRROR HEATED |
10A | Outside Mirror Heated |
| POWER WINDOW LH |
25A | FRT Power Window LH |
| SENSOR | 10A | F_Water Sensor |
| POWER OUTLET FRONT |
20A | ICU/PCB: Front Power Outlet |
| TAIL RH | 7.5A | PCB: Position Lamp RH, Head Lamp RH, RR Combi Lamp RH |
| POWER WINDOW RH |
25A | FRT Power Window RH |
| TCU | 15A | PCB/ICU: AT : Speed Sensor Out, Inhibit SW AMT: AMT Lever. |
| BRAKE SWITCH |
10A | PCB/ICU: Stop Switch |
| STOP LAMP | 15A | PCB: Stop Lamp, RR Combi Lamp, HMSL |
| START | 7.5A | PCB: Inhibitor Switch, Start Relay |
| FOLDING MIRROR |
10A | ICU/PCB: Folding Mirror |
| MODULE1 | 7.5A | ICU/PCB: Stop Switch |
| IMMOBILIZER | 10A | PCB: Immobilizer Unit |
| Airbag | 10A | ICU/PCB: ACU |
| Inner Compartment Fuse Panel (PCB) | ||
| DOOR LOCK | 20A | ICU: Door Lock |
| ECU | 10A | ICU/PCB: ECU, A_FLOW_SNSR |
| MODULE6 | 10A | ICU/PCB: OBD |
| HAZARD | 15A | PCB: HAZARD Switch, ICU: IBU (Turn Signal) |
| MODULE2 | 10A | PCB: ESC Switch, ICU: BCM (IBU) |
| MODULE3 | 7.5A | PCB/ICU: FATC, AT Lever Indicator, Head Lamp Projection, Audio Compact, Infotainment system |
| HEAD LAMP | 10A | PCB: Head Lamp Relay |
| REAR WIPER | 15A | PCB: RR Wiper Motor, ICU : Washer Motor |
| Airbag INDICATOR |
7.5A | PCB/ICU: Cluster |
| TURN SIGNAL | 10A | PCB: Hazard Switch |
| ABS | 7.5A | PCB/ICU: ABS/ESC Unit |
| FRONT WIPER |
20A | PCB/ICU: MFSW, Wiper Motor |
| A/CON2 | 7.5A | PCB/ICU: MTC, FATC, Dual Switch |
| SPARE1 | 10A | PCB: Spare Fuse |
| CLUSTER | 7.5A | PCB/ICU: Cluster |
| ACC | 10A | PCB/ICU: Crash_VDMS_Extension, USB Charger, Audio_B, IBU |
| MDPS | 7.5A | PCB/ICU: Motor Driven Power Steering Unit |
| MODULE5 | 10A | PCB/ICU: Crash_VDMS_Extension |
| REAR POWER OUTLET |
20A | PCB/ICU: RR Power Outlet |
| A/CON1 | 7.5A | PCB/ICU: FATC, Blower Motor |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MAIN RELAY | 30A | ECU (MT, AT, CNG, BS6) |
| START | 20A | ECU, Start Solenoid |
| BLOWER | 35A | PCB, ICU |
| BURGLAR ALARM HORN |
20A | IBU |
| HEAD LAMP HI |
20A | Head Lamp Projection, Head Lamp |
| HEAD LAMP | 20A | Head Lamp Fuse |
| FUEL PUMP | 20A | ECU (MT, AT, CNG, BS6) |
| BACK UP LAMP VACUUM PUMP |
20A | VACUUM PUMP, ECU Relay |
| HORN | 20A | HORN |
| AIR CONDITIONER |
20A | A/CON, ECU (MT, AT, U2) |
| COOLING FAN | 35A | Radiator Fan Motor, ECU (AT, MT, U2) |
| ALTERNATOR |
125A 150A 180A |
K1.0T, K1.2 U2 (BS4) U2 (^BS4) |
| MDPS |
80A 50A |
DC type Economical type |
| BLOWER | 40A | Blower Relay |
| REAR HEATED | 40A | RR Heated Relay |
| COOLING FAN | GSL/DSL 30A/40A |
Cooling Fan Relay |
| IGNITION1 | 30A | Starting |
| BATTERY3 | 30A | ICU |
| BATTERY2 | 30A/50A | ICU, PCB |
| BATTERY1 | 30A/40A | ICU, PCB |
| BATTERY4 | 50A | ICU |
| ABS/ESC2 | 40A | ABS/ESC Unit |
| POWER OUTLET |
40A | ICU, PCB |
| ABS/ESC1 | 40A | ABS/ESC Unit |
| ECU1 | 30A | ECU |
| IGNITION2 | 30A | Starting, Start Relay |
| BACK UP LAMP1 | 10A | Back Up Relay |
| FRONT WIPER | 10A | Front Wiper, ECU |
| ECU3 | 15A | ECU (MT, AT, BS6) |
| HORN | 15A | Horn Relay |
| AIR CONDITIONER |
10A | A/Con Relay |
| HEAD LAMP LH | 10A | Head Lamp LH, Head Lamp Projection LH |
| HEAD LAMP RH | 10A | Head Lamp RH, Head Lamp Projection RH |
| ECU7 | 10A | Main Relay *for CNG:ECU7 |
| ECU8 | 10A | Main Relay |
| HEAD LAMP HI | 10A | Cluster |
| ECU2 | 15A | Main Relay *for CNG:SHUTOFF VALVE111 |
| ECU5 | 15A | Main Relay *for CNG:ECU4 |
| ECU4 | 15A | Main Relay *for CNG:INJECTOR_3&4 |
| ECU6 | 15A | Main Relay, Ignition Coil Extension |
| BACK UP LAMP2 | 10A | Back Up Relay |
| HEAD LAMP | 20A | Head Lamp Relay |
| HEAD LAMP HI | 20A | Head Lamp HI Relay |
| ALTERNATOR MANAGEMENT SYSTEM |
10A | ECU (U2) |
| FUEL PUMP3 | 15A | Fuel Pump Relay |
| VACUUM PUMP | 10A | Main Relay |
