Honda CR-V 2024 Fuse Box Info
Passenger compartment fuse box location:

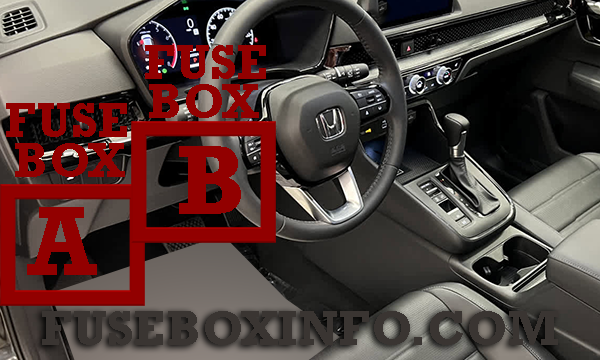

The interior fuse boxes are located under the dashboard on the driver’s side. The fuse box A (Main fuse box) is on the left side, The fuse box B (Sub fuse box) is on the right side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse Box A):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | P/W DR |
| 2 | 20A | P/W AS |
| 3 | 20A | P/W RR R |
| 4 | 20A | P/W RR L |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | (10A) | T/G MTR / TRUNK ACT* |
| 8 | 10A | RVU* |
| 9 | 20A | FR ACC SOCKET |
| 10 | 20A | DOOR LOCK |
| 11 | 10A | METER |
| 12 | 10A | OPTION 3 (ST CUT) |
| 13 | 10A | OPTION 2 |
| 14 | 10A | OPTION 6 (VB SOL) |
| 15 | (10A) | DR DOOR UNLOCK |
| 16 | 10A | IMG |
| 17 | (20A) | YOP TRAILER* |
| 18 | (20A) | HAC OP* |
| 19 | - | - |
| 20 | 10A | USB CHG* |
| 21 | 20A | CARGO ACC SOCKET |
| 22 | 10A | SMART |
| 23 | (10A) | DR DOOR LOCK |
| 24 | 20A | E-DPS* |
| 25 | - | - |
| 26 | 10A | SRS |
| 27 | 10A | ACG |
| 28 | 10A | OPTION 5 (ABS) |
| 29 | 20A | FUEL PUMP |
| 30 | 10A | L SIDE DOOR UNLOCK |
| 31 | 10A | R SIDE DOOR UNLOCK |
| 32 | 20A | SUN ROOF* |
| 33 | - | - |
| 34 | - | - |
| 35 | 20A | SUN SHADE* |
| 36 | (20A) | RR H/SEAT* |
| 37 | - | - |
| 38 | 20A | RR BLOWER* |
| 39 | 10A | R SIDE DOOR LOCK |
| 40 | 20A | DR P/SEAT SLIDE* |
| 41 | 20A | DR P/SEAT REC* |
| 42 | 5A | ETHANOL* |
| 43 | 10A | A/C |
| 44 | 5A | DRL |
| 45 | 10A | ACC |
| 46 | - | - |
| 47 | 10A | L SIDE DOOR LOCK |
| 48 | (20A) | H/SEAT* |
| 49 | 20A | AS P/SEAT REC* |
| 50 | 10A | P/LUMBAR DR/AS* |
| 51 | - | - |
| 52 | (20A) | PTG CLOSER* |
| 53 | 20A | AS P/SEAT SLI* |
| 54 | 10A | OPTION1 |
| 55 | - | - |
| 56 | - | - |
* Not available on all models
Passenger compartment fuse box (Fuse Box B):
| Fuse/Relay N° | Rating | Functions |
| A | (5A) | ACC |
| B | (10A) | EOP* |
| C | - | - |
| D | (10A) | METER |
| E | (10A) | OPTION |
| F | - | - |
| G | - | - |
| H | - | - |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | MAIN FUSE |
| 2 |
(30A) 40A 60A (40A) 60A 60A 60A |
I/S2 - F/BOX OPTION1 PTC HTR1* F/BOX OPTION2* - F/BOX MAIN1 |
| 3 |
(30A) 30A (40A) 30A 40A 40A (40A) |
AUDIO AMP* ST MAGNETIC SW PTC HTR3* RR DEF - HTR MTR PTG MTR* |
| 4 |
40A 40A 40A 40A 30A 40A 30A |
ABS/VSA FSR ABS/VSA MTR - E BOOSTER IG1 MAIN1 - IG1 MAIN2 |
| 5 |
(30A) 30A 70A 30A 40A 30A 60A |
I/S1 WIPER EPS - - MAIN FAN F/BOX MAIN2 |
| 6 | 30A | SUB FAN |
| 7 | 20A | SRM2 |
| 8 | - | - |
| 9 | 10A | BACK UP |
| 10 | (15A) | FR WIPER DEICER* |
| 11 | (10A) | RR FOG* |
| 12 | - | - |
| 13 | 7.5A | AUDIO SUB |
| 14 | - | - |
| 15 | (10A) | FR FOG |
| 16 | - | - |
| 17 | 10A | A/C MG CLUTCH |
| 18 | 15A | HORN |
| 19 | 15A | FR WASHER |
| 20 | 15A | AUDIO* |
| 21 | 20A | SRM1 |
| 22 | 15A | DBW |
| 23 | 10A | HAZARD |
| 24 | 10A | VBU |
| 25 | 15A | IGP |
| 26 | 10A | TCU |
| 27 | 20A | LCM L |
| 28 | 20A | INJ |
| 29 | 10A | STOP |
| 30 | 20A | LCM R |
| 31 | 15A | IG COIL |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | (15A) | AUDIO MAIN VST |
| 37 | (7.5A) | AUDIO SUB VST* |
| 38 | - | - |
| 39 | 7.5A | IGPS VBACT |
| 40 | 7.5A | IGPS FAN |
| 41 | 7.5A | IGPS LAF |
| 42 | 5A | IG1 MON2 |
* Not available on all models
