Honda HR-V 2023 Fuse Box Info

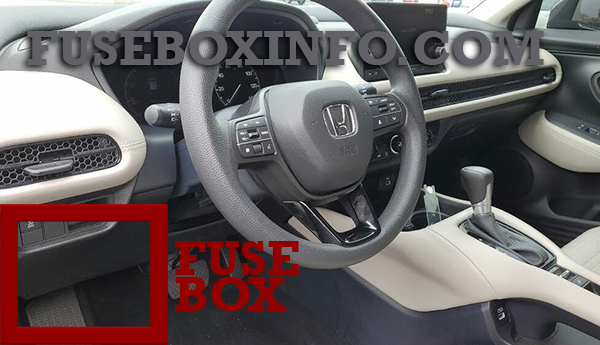

Passenger compartment fuse box location:
The interior fuse box is located under the dashboard on the driver’s side.

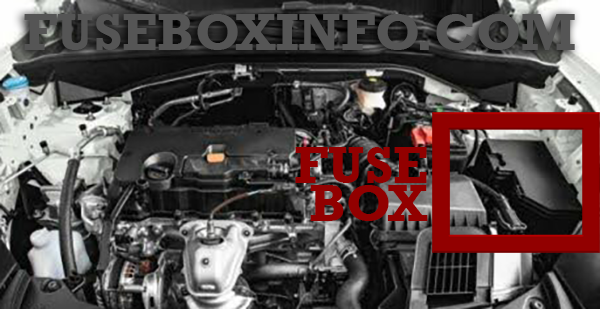

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | P/W DR |
| 2 | 20A | P/W AS |
| 3 | 20A | P/W RR R |
| 4 | 20A | P/W RR L |
| 5 | 10A | OPTION |
| 6 | 10A | SRS |
| 7 | (10A) | T/G MTR |
| 8 | - | - |
| 9 | 20A | - |
| 10 | 20A | DOOR LOCK |
| 11 | 10A | METER |
| 12 | 10A | ST CUT RLY |
| 13 | 10A | OPTION2 |
| 14 | 10A | OPTION6 (VB SOL) |
| 15 | (10A) | DR DOOR UNLOCK |
| 16 | (20A) | SUNROOF* |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | 10A | - |
| 21 | 20A | CARGO ACC SOCKET |
| 22 | 10A | SMART |
| 23 | (10A) | DR DOOR LOCK |
| 24 | - | - |
| 25 | 10A | IMG |
| 26 | 10A | SRS |
| 27 | 10A | ACG |
| 28 | 10A | ABS/VSA |
| 29 | 20A | FUEL PUMP |
| 30 | 10A | L SIDE DOOR UNLOCK |
| 31 | 10A | R SIDE DOOR UNLOCK |
| 32 | - | - |
| 33 | 10A | USB CHG |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | 20A | E-PT L |
| 38 | - | - |
| 39 | 10A | R SIDE DOOR LOCK |
| 40 | (20A) | P SEAT REC / RR HI* |
| 41 | (20A) | P SEAT SLIDE / FR HI* |
| 42 | - | - |
| 43 | 10A | A/C |
| 44 | 10A | DRL |
| 45 | 10A | ACC |
| 46 | 10A | ACC KEY LOCK |
| 47 | 10A | L SIDE DOOR LOCK |
| 48 | 20A | H/SEAT* |
| 49 | - | - |
| 50 | - | - |
| 51 | - | - |
| 52 | (20A) | E-DPS* |
| 53 | - | - |
| 54 | 10A | OPTION1 / FUEL LID |
| 55 | - | - |
| 56 | - | - |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 125A | BATTERY |
| 2 |
40A 40A 60A 40A 40A (30A) 60A |
- - F/BOX OPTION - F/BOX OPTION2 - F/BOX MAIN |
| 3 |
30A 30A 70A 30A (40A) 30A 40A |
- - - RR DEFROSTER - - HTR MTR |
| 4 |
30A 40A (30A) 30A 30A 30A 30A |
- ABS/VSA MTR - - IG MAIN - IG MAIN2 |
| 5 |
30A 30A 70A 30A 40A 30A 40A |
ST MAGNETIC SW WIPER EPS - ABS/VSA FSR MAIN FAN F/BOX MAIN2 |
| 6 | 30A | SUB FAN |
| 7 | 40A | BOOSTER MTR |
| 8 | (30A) | - |
| 9 | (20A) | - |
| 10 | (7.5A) | AUDIO SUB* |
| 11 | (15A) | FR DEICER* |
| 12 | - | - |
| 13 | (10A) | H/STRG* |
| 14 | (10A) | - |
| 15 | (15A) | - |
| 16 | 10A | MG CLUTCH |
| 17 | 15A | WASHER |
| 18 | 10A | HORN |
| 19 | 15A | BACK UP |
| 20 | (15A) | AUDIO |
| 21 | 20A | R/M1 |
| 22 | 15A | DBW |
| 23 | 20A | R/M2 |
| 24 | 10A | BACKUP FI-ECU |
| 25 | 15A | IGP |
| 26 | 10A | TCU |
| 27 | 20A | LCM L |
| 28 | (20A) | - |
| 29 | 10A | STOP |
| 30 | 20A | LCM R |
| 31 | 15A | IG COIL |
| 32 | - | - |
| 33 | 15A | HAZARD |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | (30A) | - |
| 38 | - | - |
| 39 | - | - |
| 40 | (7.5A) | - |
| 41 | 10A | IGPS [LAF] |
| 42 | 10A | IG1 MON2 |
* Not available on all models
