Honda Insight 2006 Fuse Box Info
Passenger compartment fuse box location:
The interior fuse is underneath the dashboard on the driver’s side.

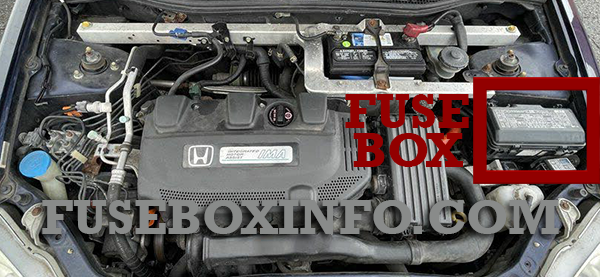

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | SRS |
| 2 | 15A | Fuel Pump, SRS |
| 3 | 20A | Front Wiper |
| 4 | 7.5A | FI-ECU |
| 5 | 7.5A | Turn Light |
| 6 | 7.5A | Meter |
| 7 | 15A | IG Coil |
| 8 | 20A | Power Window, Passenger |
| 9 | 7.5A | Starter Signal |
| 10 | 20A | Power Window, Driver |
| 11 | 7.5A | ACC Radio |
| 12 | 10A | ACC Socket |
| 13 | - | Not used |
| 14 | 20A | LAF Heater |
| 15 | 10A | Small Light |
| 16 | 7.5A | Air Conditioning, R/C Mirror |
| 17 | 7.5A | Daytime Running Light* |
| 18 | 7.5A | Back Up Light |
| 19 | 7.5A | Interior Light |
| 20 | 10A | Radio |
| 21 | 10A | Daytime Running Light* |
| 22 | 20A | Door Lock |
| 23 | 7.5A | Tailgate Lock |
| 24 | 7.5A | IMA |
| 25 | - | Not used |
| 26 | 10A | Rear Wiper |
| 27 | 7.5A | Back Light |
* Canadian model only
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A | IG1 Main |
| 2 | 80A | Battery |
| 3 | 30A | ABS Motor |
| 4 | 10A | Hazard |
| 5 | 15A | IMA |
| 6 | 10A | Horn Stop |
| 7 | 15A | Fuel Pump |
| 8 | 15A | Left Headlight |
| 9 | - | Not used |
| 10 | 15A | Right Headlight |
| 11 | 30A | Cooling Fan |
| 12 | 40A | Heater Motor |
| 13 | 30A | Rear Defroster |
| 14 | 20A | ABS F/S |
| 15 | 40A | Power Steering |
| 16 | 30A | Back Up, ACC |
| 17 | 40A | Power Window |
| 18 | 7.5A | IMA ECU |
| 19 | 20A | Condenser Fan |
| 20 | - | Spare Fuse |
