Honda CR-V 2016 Fuse Box Info

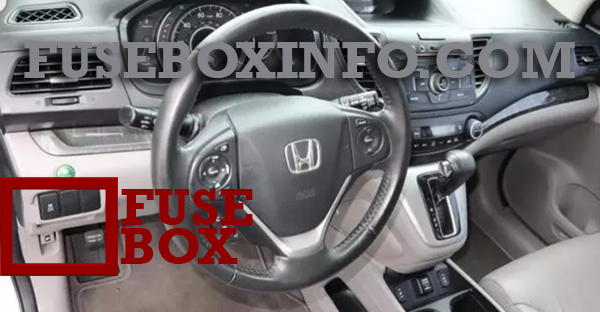

Passenger compartment fuse box location:
The interior fuse box is located under the dashboard on the driver’s side.

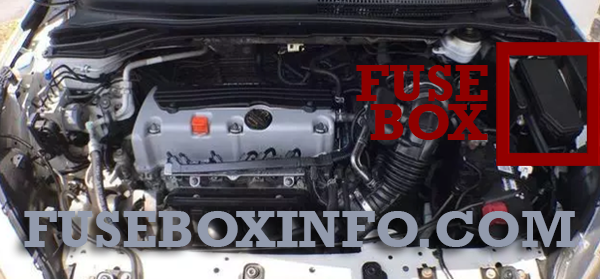

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 10A | ACG |
| 3 | 10A | SRS |
| 4 | 15A | Fuel Pump |
| 5 | 10A | Meter |
| 6 | 7.5A | Power Window |
| 7 | 7.5A | VB SOL |
| 8 | 15A | Passenger’s Side Door Lock Motor 2 (Unlock) |
| 9 | 15A | Driver’s Side Door Lock Motor 1 (Unlock) |
| 10 | (7.5A) | Trailer* |
| 11 | (20A) | Moonroof* |
| 12 | (15A) | Accessory Power Socket (Center Console) |
| 13 | (15A) | Washer Main* |
| 14 | (20A) | Seat Heaters* |
| 15 | 10A | Driver’s Door Lock Motor (Unlock) |
| 16 | (20A) | Driver's Power Seat Sliding* |
| 17 | (20A) | Driver's Power Seat Reclining* |
| 18 | (20A) | Front Passenger’s Seat Sliding* |
| 19 | 7.5A | ACC |
| 20 | 7.5A | ACC Key Lock |
| 21 | 7.5A | Daytime Running Lights |
| 22 | 7.5A | A/C |
| 23 | 10A | Wiper |
| 24 | 7.5A | ABS/VSA |
| 25 | 10A | Audio |
| 26 | (20A) | Power Tailgate* |
| 27 | 15A | Accessory Power Socket (Front) |
| 28 | 15A | Washer* |
| 29 | 7.5A | OPDS |
| 30 | 10A | Driver’s Door Lock Motor (Lock) |
| 31 | (10A) | Smart* |
| 32 | 15A | Passenger’s Side Door Lock Motor 2 (Lock) |
| 33 | 15A | Driver’s Side Door Lock Motor 1 (Lock) |
| 34 | 10A | Small Lights |
| 35 | 7.5A | llumination |
| 36 | (10A) | Rear Wiper Main* |
| 37 | (20A) | Front Fog Lights* |
| 38 | 10A | Left Headlight High Beam |
| 39 | 10A | Right Headlight High Beam |
| 40 | - | - |
| 41 | 20A | Door Lock |
| 42 | 20A | Driver’s Power Window |
| 43 | 20A | Rear Passenger’s Side Power Window |
| 44 | 20A | Front Passenger’s Side Power Window |
| 45 | 20A | Rear Driver’s Side Power Window |
| 46 | - | - |
* Not available on all models
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
70A (40A) 20A 40A (30A) 100A |
EPS Power Tailgate ABS/VSA FSR ABS/VSA Motor E-DPS* Main Fuse |
| 2 |
50A 60A 60A 30A (30A) 30A - 40A 30A 20A 20A |
Main Fuse Box Main Fuse Box Main 2 Headlight High Beam Main ST Magnetic Switch Rear Defogger - Heater Motor Front Wiper Main Sub Fan Motor Main Fan Motor |
| 3 |
(30 A) (30 A) (30 A) (30 A) |
DC/DC1 DC/DC2 IG MAIN IG MAIN2 |
| 4 | - | - |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | 7.5A | Sub Fan Rly CL |
| 9 | 7.5A | VSA ECU |
| 10 | (7.5A) | Heated Door Mirror* |
| 11 | 7.5A | STRLD |
| 12 | 20A | Injector |
| 13 | (20A) | Premium Amp* |
| 14 | 10A | Horn |
| 15 | 10A | Hazard |
| 16 | 10A | Stop |
| 17 | 15A | IG Coil |
| 18 | 15A | IGP2 |
| 19 | (10A) | Daytime Running Lights |
| 20 | (20A) | Passenger’s Power Seat Reclining |
| 21 | (15A) | Deicer |
| 22 | 15A | DBW |
| 23 | 15A | IGP |
| 24 | 10A | Left Headlight Low Beam |
| 25 | 10A | Right Headlight Low Beam |
| 26 | 20A | SMALL |
| 27 | 7.5A | MG Clutch |
| 28 | 7.5A | Interior Lights |
| 29 | 10A | Backup |
* Not available on all models
