Honda Pilot 2015 Fuse Box Info
Passenger compartment fuse box location:
The interior fuse box is underneath the dashboard on the driver’s side.

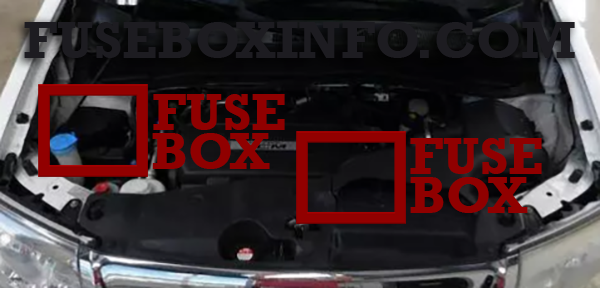

Engine compartment fuse box location:
Luggage compartment fuse box location:
The rear fuse box is located at the left side of cargo area.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | VTM-4 |
| 2 | 15A | Fuel Pump |
| 3 | 10A | ACG |
| 4 | 7.5A | VSA |
| 5 | - | Not Used |
| 6 | - | Not Used |
| 7 | 10A | Auto Light |
| 8 | 7.5A | Auto Light |
| 9 | 7.5A | ODS |
| 10 | 7.5A | Meter |
| 11 | 10A | SRS |
| 12 | 10A | Right Daytime Running Light |
| 13 | 10A | Left Daytime Running Light |
| 14 | 7.5A | Small Lights (Interior) |
| 15 | 15A | Small Lights (Exterior) |
| 16 | 15A | Right Head Light Low |
| 17 | 15A | Left Head Light Low |
| 18 | 20A | Daytime Running Light Main |
| 19 | 15A | Small Lights Main |
| 20 |
- 7.5A |
Not Used TPMS |
| 21 | 20A | Head Light Low Main |
| 22 | 7.5A | VBSOL2 |
| 23 | 7.5A | STRLD |
| 24 | - | Not Used |
| 25 | - | Not Used |
| 26 | 20A | Driver’s Power Window |
| 27 | 20A | HAC OP |
| 28 | 20A | Moonroof |
| 29 | 20A | Door Lock |
| 30 | 20A | Front Passenger’s Power Window |
| 31 | 30A | Audio Amp |
| 32 | 20A | Passenger’s Side Rear Power Window |
| 33 | 20A | Driver’s Side Rear Power Window |
| 34 | - | Not Used |
| 35 | 10A | ACC |
| 36 | 10A | HAC |
| 37 | 7.5A | Day Light |
| 38 | 30A | Wiper |
Engine compartment fuse box (Primary):
| Fuse/Relay N° | Rating | Functions |
| 1 |
120A - |
Main Fuse Not Used |
| 2 |
80A 50A |
OP Main IG Main |
| 3 |
40A 30A |
Blower AC Inverter |
| 4 |
50A 40A |
Head Light Main Power Window Main |
| 5 | - | Not Used |
| 6 | 30A | Condenser Fan |
| 7 | 30A | Cooling Fan |
| 8 | 30A | Rear Defogger |
| 9 | - | Not Used |
| 10 | 20A | Fog Lights |
| 11 | 15A | Sub |
| 12 | 10A | ACM |
| 13 | 20A | Front Passenger’s Power Seat Reclining |
| 14 | 20A | Front Passenger’s Power Seat Slide |
| 15 | 7.5A | Oil Level |
| 16 | 7.5A | FI ECU |
| 17 | 20A | Radio |
| 18 | 15A | IG Coil |
| 19 | 15A | Main |
| 20 | 7.5A | MG Clutch |
| 21 | 15A | DBW |
| 22 | 10A | Interior Light |
| 23 | 10A | Back UP |
Engine compartment fuse box (Secondary):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Power Tail Gate Motor |
| 2 | 20A | VTM-4 |
| 3 | 30A | Trailer Main |
| 4 | 40A | VSA FSR |
| 5 | 30A | Rear Blower |
| 6 | 30A | VSA Motor |
| 7 | 15A | Hazard |
| 8 | 20A | Power TailGate Closer |
| 9 | 20A | Driver’s Power Seat Reclining |
| 10 | 20A | Driver’s Power Seat Slide |
| 11 | 20A | Stop & Horn |
| 12 | 15A | Rear Console Accessory Socket |
| 13 | 10A | Rear Wiper |
| 14 | 20A | Trailer E-Brake |
| 15 | 20A | Front Heated Seat |
| 16 | 15A | Center Console Accessory Socket |
| 17 | 20A | Trailer Charge |
| 18 | 15A | Front Accessory Socket |
| 19 | 15A | Rear Accessory Socket |
| 20 | 20A | Glass Hatch Motor |
| 21 | 15A | Rear Heated Seat |
| 22 | 30A | Head Light Washer Motor |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Small Light |
| 2 | 7.5A | Stop Lamp |
| 3 | 7.5A | Back Lamp |
| 4 | 7.5A | Turn Light Hazard |
