Ford Expedition 2004 Fuse Box Info
Fuse box location:

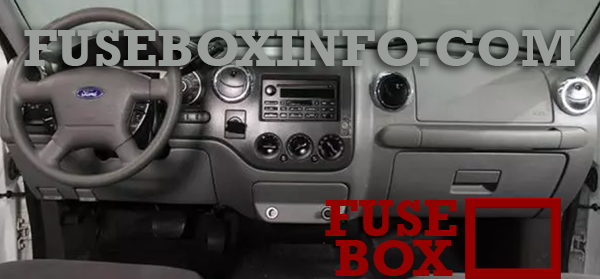

The fuse box is located under the right-hand side of the instrument panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Run/Accessory - Front wiper motor, Instrument cluster, Rear wiper motor, Tire Pressure Monitor System (TPMS) module |
| 2 | 20A | Turn signal/Hazard flasher, Stoplamp switch, IVD (AdvanceTrac) stoplamps relay, Stoplamps, Center high-mount stop light (CHMSL), Turn signal lamps |
| 3 | 7.5A | Power mirror switch, Power mirrors (non-memory), Driver seat switch (memory), Memory module (logic power) |
| 4 | 15A | DVD player, Rear seat audio controls, CDDJ (navigation radio) |
| 5 | 7.5A | Powertrain Control Module (PCM) (KA power), Speed control deactivation switch, Manual climate control mode switch, Stoplamp switch, Brake-shift interlock (BSI) solenoid, EATC control head, Body Security Module (BSM) (KA power), Speed control servo, 3rd row seat relay coils, SecuriLock LED |
| 6 | 15A | Headlamp switch (parklamps and switch backlight feed), Parklamps, License plate lamps, Foglamp relay coil, Trailer tow electric brake controller (illumination), BSM (autolamp, parklamps) Foglamp indicator |
| 7 | 7.5A | Radio (start signal) |
| 8 | 10A | Rear window defroster switch, Rear window defroster indicator (climate control head), Heated outside mirrors |
| 9 | - | Not used |
| 10 | 20A | Trailer tow back-up lamps relay, Trailer tow 7–wire connector (back-up lamps), Trailer tow parklamp relay, Trailer tow 7– and 4–pin connectors (parklamps) |
| 11 | 10A | A/C compressor clutch relay, A/C compressor clutch solenoid, Air suspension compressor relay, 4x4 Integrated Wheel Ends (IWE) solenoid |
| 12 | 10A | Speed control servo, Speed control relay |
| 13 | 10A | Manual climate control mode switch, Rear window defroster relay coil, A/C refrigerant containment switch, A/C compressor thermistor, DEATC control head, DEATC solenoids, DEATC blower control, Trailer tow battery charge relay coil |
| 14 | 10A | Daytime Running Lamps (DRL) ignition relay coil, Digital Transmission Range Sensor (DTRS) back-up lamps, Trailer tow back-up lamps relay coil, Electrochromatic mirror, Navigation radio, Manual A/C blend door actuator |
| 15 | 5A | AdvanceTrac switch, Instrument cluster (Run/Start feed) |
| 16 | 10A | ABS/AdvanceTrac module (Run/Start feed) |
| 17 | 15A | Foglamps |
| 18 | 10A | Auxiliary A/C temperature blend door actuator, Auxiliary A/C front auxiliary control, Turn signal flasher, Electrochromatic mirror, Auxiliary mode motor, Climate controlled seat modules |
| 19 | 10A | Restraints Control Module (RCM) |
| 20 | 30A | Air suspension module (air spring solenoids and height sensors), 4x4 module |
| 21 | 15A | Instrument cluster (B+), Interior (courtesy) lamps, Puddle lamps (outside mirrors), Tire Pressure Monitoring System (TPMS) module |
| 22 | 10A | Moonroof switch illumination, Radio (delayed accessory feed), Flip window switch, Flip window motors, EHAM antenna amplifier (navigation radio) |
| 23 | 10A | RH low beam |
| 24 | 15A | Interior demand lamps (front map/dome lamp, 2nd row dome/map lamp, glove compartment lamp, cargo lamp, roof rail lamps, vanity mirror lamps), Battery saver relay coil, Battery saver relay power |
| 25 | 10A | LH low beam |
| 26 | 20A | Horn relay, Horns |
| 27 | 5A | Compass module, Reverse sensing system module, Brake shift interlock (BSI) solenoid, Overdrive cancel switch, Air suspension module (Run/Start sense) |
| 28 | 5A | PCM relay coil, Speed control relay coil, SecuriLock transceiver |
| 29 | 30A | Trailer tow electric brake controller, Trailer tow 7–wire connector (electric brake) |
| 30 | 30A | BSM (door locks, liftgate glass release relay), Liftgate glass release motor, Door/Liftgate lock motors |
| 31 | 20A | Radio (B+), Subwoofer |
| 32 | 15A | Catalyst Monitor Sensors (CMS), Transmission solenoids |
| 33 | 20A | Canister vent solenoid, HEGO sensors, VMV solenoid, Intake Manifold Tuning Valve (IMTV-4.6L engine) solenoid, A/C compressor clutch relay coil, EGR vacuum regulator (EVR) solenoid |
| 34 | 20A | PCM, Fuel injectors, Fuel pump relay, Fuel pump shut-off switch, Fuel pump motor, Idle air control (IAC) solenoid, Mass Air Flow (MAF) sensor |
| 35 | 20A | Instrument cluster high beam indicator, High beam headlamps |
| 36 | 10A | Trailer tow right turn/stop lamps |
| 37 | 20A | Cargo area power point |
| 38 | 25A | Rear wiper motor, Washer pump (rear window wash) |
| 39 | 20A | Console power points (front and rear of console), Instrument panel power point (bench seat) |
| 40 | 20A | DRL relays, DRL foglamps, DRL headlamp relay coil, Headlamp switch (headlamps), Multifunction switch (flash-to-pass), BSM (autolamp headlamps relay), High beam relay coil, Fuse 25 (LH low beam), Fuse 23 (RH low beam) |
| 41 | 20A | Cigar lighter, OBD II diagnostic connector |
| 42 | 10A | Trailer tow left turn/stop lamps |
| 101 | 30A | Starter motor relay, Starter motor solenoid |
| 102 | 30A | Ignition switch power |
| 103 | 30A | ABS/AdvanceTrac module (pump motor) |
| 104 | 30A | LH 3rd row seat relay, LH 3rd row seat switch, LH 3rd row seat motor |
| 105 | 40A | Spare |
| 106 | 30A | Trailer tow battery charge relay, Trailer tow 7–way connector (battery charge) |
| 107 | 30A | Auxiliary A/C blower relay, Auxiliary A/C blower motor |
| 108 | 30A | Passenger seat motor switch |
| 109 | 30A | Driver seat motor switch (non-memory), Memory module, Power memory mirrors, Adjustable pedals switch and motor |
| 110 | 30A | Spare |
| 111 | 50A | Air suspension compressor, Air suspension compressor relay |
| 112 | 30A | ABS/AdvanceTrac module (valves) |
| 113 | 30A | Front wiper motor, Washer pump (windshield wash) |
| 114 | 40A | Rear window defroster relay, Rear window defroster grid, Heated mirrors (Fuse 8) |
| 115 | 30A | 4x4 module, Transfer case shift motor |
| 116 | 40A | Front blower relay, Front blower motor |
| 117 | 30A | RH 3rd row seat relay, RH 3rd row seat switch, RH 3rd row seat motor |
| 118 | 30A | Driver and passenger climate control seat module |
| 401 | 30A | Power windows (circuit breaker), Main window switch, Window motors, Window switches, Moonroof module |
| R01 | - | Starter motor solenoid |
| R02 | - | Fuse 22, CB 401, Power windows, Switch backlighting, Radio, Moonroof, Flip windows, DVD, Navigation antenna amplifier |
| R03 | - | Fuse # 35, Hi-beam headlamps, Hi-beam indicator |
| R04 | - | Fuse 8 (heated mirrors), Rear window defroster, Heated outside mirrors, Rear window defroster indicator (climate control head) |
| R05 | - | Trailer tow 7–wire connector (battery charge) |
| R06 | - | Front blower motor |
| R201 | - | Trailer tow 7–wire and 4–wire connectors (park lamps) |
| R202 | - | Front foglamps |
| R203 | - | Fuse 32, Fuse 33, Fuse 34, Fuel pump relay, Fuel pump, PCM solenoids and sensors |
| R301 | Trailer tow 7–wire connector (back-up lamps) | |
| R302 | Speed control servo | |
| R303 | Fuel pump shut-off switch, PCM (fuel pump monitor), Fuel pump | |
| R304 | Roof rail lamps, Vanity mirror lamps, Map/Dome lamp, Glove box lamp, Cargo area lamp, Outside mirror puddle lamps, Instrument cluster (interior lamps) | |
| R305 | Dual note horn |
