Ford Puma 2024 Fuse Box Info
Passenger compartment fuse box location:

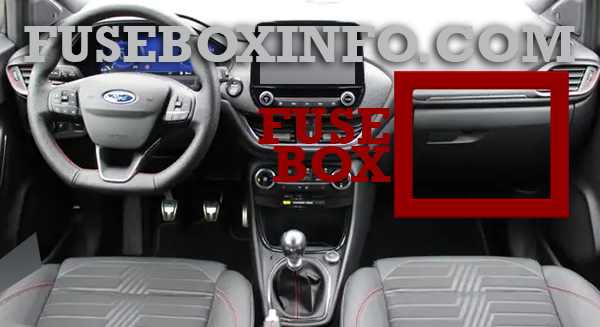

The interior fuse box is located behind the glove box (LHT).

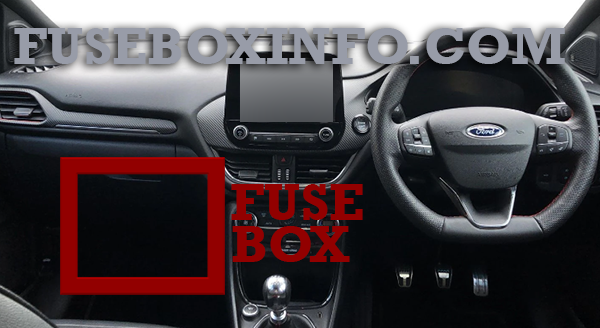

The interior fuse box is located below the glove box (RHT).
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Restraints control module, In-vehicle temperature and humidity sensor |
| 2 | 10A | Parking assist control module |
| 3 | 10A | Ignition switch, Push button ignition switch, Telematics modem |
| 4 | 20A | Lock, Unlock |
| 5 | 10A | Moonroof |
| 6 | 30A | Right-hand front power windows |
| 7 | 5A | Passenger airbag deactivation indicator, Auto-dimming interior mirror |
| 8 | 10A | Not used |
| 9 | 5A | Central security module, Hands-free liftgate, Power liftgate |
| 10 | 15A | Child safety locks, Fuel filler door |
| 11 | 30A | Left-hand front power windows |
| 12 | 15A | Heated steering wheel, Headlamp control module |
| 13 | 15A | Voice control, Compact disc player |
| 14 | 7.5A | Battery back-up sounder, Wireless charging module |
| 15 | 10A | Anti-theft alarm horn |
| 16 | 7.5A | Climate control, Steering wheel module, Instrument cluster, Data link connector |
| 17 | 20A | Audio unit |
| 18 | 20A | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 60A | Intake air heater |
| 3 | 10A | Windshield heated washer jets |
| 4 | 40A | Left-hand heated windshield element |
| 5 | - | Not used |
| 6 | 30A | Starter motor |
| 7 | 40A | Intake air heater |
| 8 | - | Not used |
| 9 |
40A 60A |
Dual-clutch transmission - Diesel Glow plug control module - Diesel |
| 10 | - | Not used |
| 11 | 20A | Steering column lock |
| 12 | 10A | Air conditioning clutch |
| 13 | - | Not used |
| 14 | - | Not used |
| 15 | - | Not used |
| 16 | 15A | Belt integrated starter generator - MHEV |
| 17 | 5A | Powertrain control module |
| 18 | 10A | Integrated heated steering wheel |
| 19 | 5A | Electronic power assist steering |
| 20 | 7.5A | Transmission control module |
| 21 | - | Not used |
| 22 | - | Not used |
| 23 | 10A | Passenger multi-contour seat module |
| 24 | 10A | Driver multi-contour seat module |
| 25 | 10A | Coolant pump, Exhaust valve |
| 26 | 15A | Evaporative emission canister purge valve, Camshaft position sensor, Fuel injection control pressure sensor, Turbocharger variable vane control solenoid, Exhaust gas recirculation cooler bypass valve, Wastegate control valve solenoid, Heated oxygen sensor |
| 27 | 20A | Powertrain control module |
| 28 | 15A | Active grille shutter, Oil pump, Air conditioning compressor, Wastegate control valve solenoid, Water-in-fuel sensor |
| 29 | 15A | Ignition coil, Noise suppression capacitor |
| 30 | 10A | Air conditioning pressure relief valve |
| 31 | 10A | Battery energy control module - MHEV |
| 32 | 30A | Body control module |
| 33 | 10A | Blind spot information system, Cruise control module, Front parking aid camera, Rear parking aid camera, Parking assist control module |
| 34 |
10A 5A |
Transmission control module Reductant dosage control module |
| 35 | 10A | Headlamps |
| 36 | 5A | Anti-lock brake system |
| 37 | - | Not used |
| 38 | 40A | Blower motor |
| 39 | - | Not used |
| 40 | 10A | Battery energy control module - MHEV |
| 41 | 20A | Heated seats |
| 42 | - | Not used |
| 43 | 40A | Trailer tow module |
| 44 | 40A | Right-hand heated windshield element |
| 45 | 30A | Left-hand rear door module |
| 46 | 5A | Headlamp leveling |
| 47 | 15A | Audio unit amplifier |
| 48 | 20A | Moonroof |
| 49 | 60A | Anti-lock brake pump |
| 50 | 60A | High-speed cooling fan |
| 51 | - | Not used |
| 52 | 10A | Data link connector |
| 53 | - | Not used |
| 54 | 30A | Right-hand rear door module |
| 55 | 30A | Anti-lock brake valve |
| 56 | 5A | Brake on-off switch |
| 57 | 15A | Audio unit amplifier |
| 58 | 30A | Power liftgate |
| 59 | 40A | Body control module |
| 60 | - | Not used |
| 61 | 5A | Lumbar support |
| 62 | - | Not used |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | - | Not used |
| 66 | - | Not used |
| 67 | - | Not used |
| 68 | 20A | Fuel pump |
| 69 | 15A | LPG (liquefied petroleum gas) injectors, LPG safety valve |
| 70 | - | Not used |
| 71 | - | Not used |
| 72 | - | Not used |
| 73 | 5A | Rain sensor |
| 74 | 30A | Windshield wiper motor |
| 75 | - | Not used |
| 76 | - | Not used |
| 77 | 25A | Heated rear window |
| 78 | - | Not used |
| 79 | 20A | Horn |
| 80 | - | Not used |
| 81 | 25A | Diesel fuel heater |
| 82 | 15A | Rear window washer pump |
| 83 | 20A | Cigar lighter, Front auxiliary power points |
| 84 | 20A | Rear auxiliary power points |
| 85 | 40A | Low-speed cooling fan |
| 86 | 20A | Rear window wiper |
| 87 | - | Not used |
| 88 | - | Not used |
| 89 | - | Not used |
