Fiat Strada 2011 Fuse Box Info

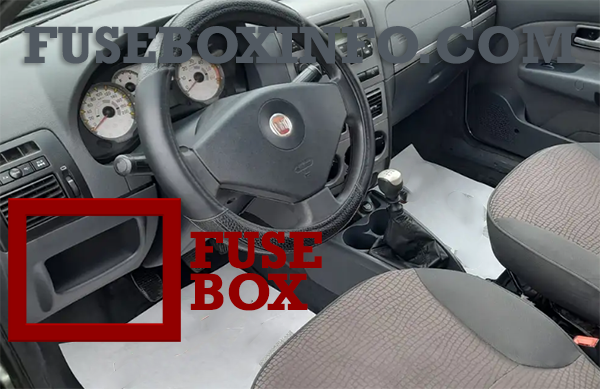

Passenger compartment fuse box location:
The fuse box is located on the left side of the dashboard.

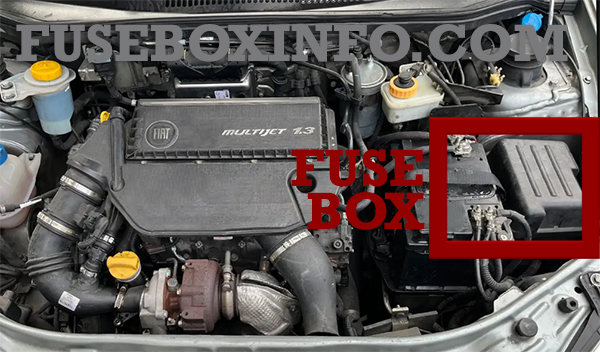

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F12 | 15A | Right dipped headlight |
| F13 | 15A | Left dipped headlight, headlight alignment corrector |
| F31 | 7.5A | Supply for reversing light, relay switch coils on engine compartment fuse box, manual climate control system |
| F32 | 15A | +30 exterior lighting control supply |
| F35 | 10A | Brake light switch supply (NC signal) |
| F37 | 10A | Brake lights, instrument panel node |
| F38 | 20A | Central locking |
| F39 | 15A | +30 supply for roof light, glove compartment light, radio |
| F42 | 7.5A | ABS control unit |
| F43 | 30A | Windscreen wiper, two-way pump |
| F44 | 20A | Power socket - cigar lighter |
| F47 | 30A | Front left electric window |
| F48 | 30A | Front right electric window |
| F49 | 7.5A | +15 services supply for radio, electric mirrors, central and side control panel lighting, electric mirror control lighting |
| F50 | 7.5A | Airbag system |
| F51 | 7.5A | + supply for number plate lights, heater control lighting, power socket – cigar lighter lighting, radio lighting |
| F53 | 10A | Direction indicators, hazard warning lights, instrument panel node |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F00 | 60A | Plug preheating |
| F01 | 70A | Dashboard fuse box - basic |
| F02 | 40A | Dashboard fuse box - optional |
| F03 | 20A | Ignition switch |
| F04 | 50A | Anti-slip system |
| F06 | 30A/40A | Single speed – Radiator fan first speed |
| F07 | 40A/60A | Single speed – Radiator fan second speed |
| F08 | 40A | Climate control fan |
| F10 | 15A | Horn |
| F11 | 15A | Speedometer generator, canister solenoid valve, preheating control unit, secondary loads, engine management system |
| F14 | 10A | Right main beam headlight |
| F15 | 10A | Left main beam headlight |
| F16 | 7.5A | Engine management control unit, engine management system relay switch, engine cooling system remote control switch |
| F17 | 10A | Engine management control unit (supply), diesel pump solenoid valve unit |
| F18 | 7.5A | Engine management control unit |
| F19 | 7.5A | Climate control compressor |
| F20 | 20A | Heated filter |
| F21 | 15A | Fuel pump, cut-off system |
| F23 | 15A | Additional headlights |
| F24 | 10A | Ignition-operated +15 positive pole |
| F30 | 15A | Fog lights |
