Fiat 500e 2024 Fuse Box Info

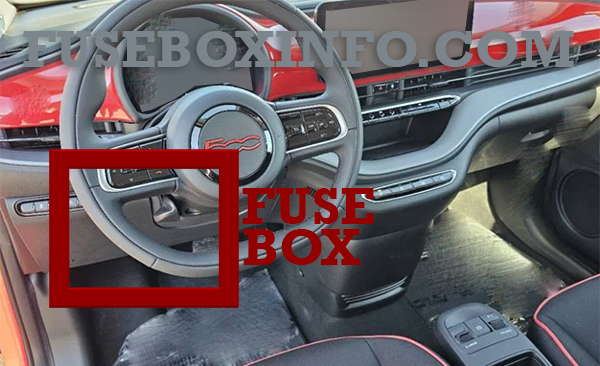

Passenger compartment fuse box location:
The fuse box is located on the driver’s side under the instrument panel.

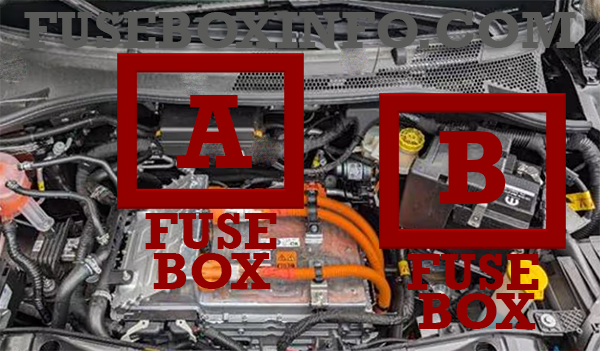

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F31 | 7.5A | KL15A Power Electric Bay (PEB), HVAC Blower |
| F36 | 15A | HVAC, Radio-Display, USB, EOBD, EPB LED |
| F37 | 10A | KL15 Instrument Panel Cluster (IPC), Front Radar |
| F38 | 15A | Trunk Unlock |
| F42 | 7.5A | KL15 Electric Power Steering (EPS), Braking System Module (BSM) |
| F43 | 20A | Bi-Directional Washer Pump |
| F47 | 20A | Driver Window |
| F48 | 20A | Passenger Window |
| F49 | 7.5A | KL15 Parking AID Module (PAM), Humidity-Rain Light Sensor, Auto-Dimming Inside Rear View Mirror – If Equipped, USB Charge Outlet, Wireless Charging Pad Module, HVAC Control Panel Module |
| F50 | 7.5A | Airbag |
| F51 | 7.5A | KL15 Power Electric Bay (PEB), Rear Window Defrost, Heated Mirrors If Equipped, HVAC, Left Stack Switch |
| F53 | 7.5A | Instrument Panel Cluster (IPC), USB Charge Outlet, Telematic Box Module (TBM), Control Panel in the Tunnel Area |
| F94 | 15A | 12V Power Outlet |
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| F01 | 70A | Body Control Module (BCM1) |
| F02 | 60A | Body Control Module (BCM2) |
| F03 | 20A | Ignition Switch for Body Computer Module (BCM) |
| F04 | 40A | Brake System Module Valves |
| F05 | 70A | Electric Power Steering (EPS) |
| F06 | 50A | MCO Supply |
| F07 | 50A | MCO Supply |
| F08 | 40A | MCO Supply |
| F09 | 15A | Battery Coolant Heater (BCH) |
| F10 | 10A | Horn |
| F14 | 15A | Power Electric Coolant Pump (PECP) |
| F15 | 70A | BSM Pump |
| F18 | 15A | Battery Coolant Pump (BCP) |
| F19 | 7.5A | EAC and PWM Fan Enable |
| F20 | 15A | Electric Air Heater (EAH) |
| F21 | 5A | Coolant Proportional Valve (CPV) |
| F23 | 20A | Heated Seats – If Equipped |
| F30 | 20A | Windshield Heater – If Equipped |
| F83 | 40A | HVAC Blower |
| F88 | 7.5A | Heated Mirrors – If Equipped |
| F89 | 20A | Rear Window Defrost |
| F90 | 5A | Intelligent Battery Sensor (IBS) |
| T07 | 50A | MCO Supply |
| T17 | 30A | Rear Window Defrost Heated Mirrors |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| F01 | 5A | PEB_1 |
| F02 | 10A | E-Latch Driver |
| F03 | 5A | PEB_2 |
| F04 | 5A | Electronic Shifter (ESM) |
| F05 | 20A | PEB_6 |
| F06 | 5A | IDCM |
| F07 | 20A | PEB_4 |
| F08 | 20A | PEB_3 |
| F09 | 10A | E-Latch Passenger |
| F10 | 20A | PEB_5 |
| F12 | 15A | AMPLI Hi-Fi – If Equipped |
| F14 | 10A | Battery Pack (BPCM) |
| F16 | 5A | Charge Port (CPIM) |
| F17 | 20A | PEB_7 |
| F18 | 5A | Pedestrian (QVPM) |
| F19 | 15A | AMPLI Hi-Fi – If Equipped |
| T02 | 30A | Heated Seats – If Equipped |
| T03 | 20A | Horn |
| T05 | 20A | EAC and PWM Fan Enable |
| T06 | 30A | Heated Seats – If Equipped |
| T08 | 30A | HVAC Fan |
| T10 | 30A | Electrical Air Heater (EAH) |
| T31 | 20A | Coolant Proportional Valve (CPV) |
| T89 | 30A | Battery Coolant Heater (BCH) |
| T90 | 30A | Windshield Heater – If Equipped |
