Fiat Linea 2011 Fuse Box Info
Passenger compartment fuse box location:

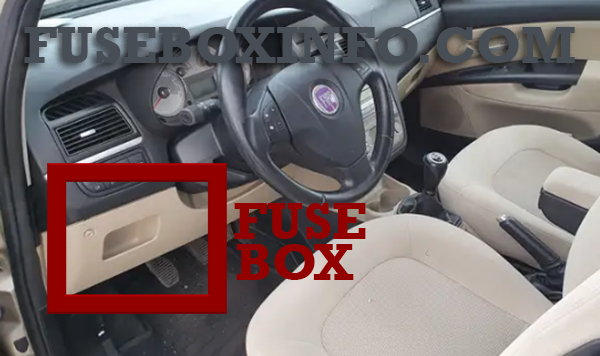

The fuse box is located on the left side of the dashboard.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F12 | 7.5A | Right dipped beam headlight |
| F13 | 7.5A | Left dipped beam headlight, headlight corrector |
| F31 | 7.5A | INT/A for relay coils (T08, T17) in engine compartment fuse box and body computer node |
| F32 | 15A | Heated Seats |
| F33 | 20A | Power windows control unit (left rear window motor) |
| F34 | 20A | Power windows control unit (right rear window motor) |
| F35 | 7.5A | +15 reversing lights, NC brake lights control, flow meter, glow plug preheating unit, water in diesel fuel sensor,speedometer generator |
| F36 | 7.5A | Power window unit (+30 for electronics) |
| F37 | 7.5A | +15 control panel, NO brake lights control |
| F38 | 20A | Body computer node |
| F39 | 10A | Radio node, climate control node, node Blue&Me node |
| F40 | 30A | Heated rear window |
| F41 | 7.5A | Mirror defrosters |
| F43 | 20A | Windscreen wiper control (two-way pump) |
| F44 | 15A | Cigar lighter or power socket |
| F45 | 10A | Boot lock actuator |
| F47 | 20A | Electric window unit (driver’s side front window motor) |
| F48 | 20A | Electric window unit (passenger’s side front window motor) |
| F49 | 7.5A | +15 control lighting: radio on steering wheel, control panels, electric mirrors, window control unit, chromic mirror and rain sensor |
| F51 | 7.5A | +15 cruise control, provision for radio, provision for Blue&MeTM, parking sensors, climate control system node |
| F52 | 15A | Electric window unit, driver’s seat adjustment motor |
| F53 | 7.5A | Body computer and instrument panel node |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F10 | 15A | Horn |
| F14 | 7.5A | Right main beam headlight |
| F15 | 7.5A | Left beam headlight |
| F19 | 7.5A | Air conditioning compressor |
| F21 | 15A | Fuel pump |
| F23 | 20A | Windscreen wiper motor |
| F24 | 10A | Free |
| F30 | 15A | Fog lights |
