Fiat 500 2020 Fuse Box

Fiat 500 2020 Fuse Box Info

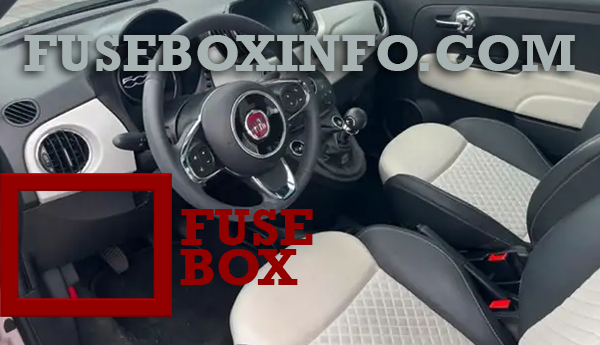

Passenger compartment fuse box location:

The fuse box is located on the driver’s side under the instrument panel, in the lower area next to the pedal board.



Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
13 5A Headlight alignment corrector
36 15A Diagnosis socket, radio, climate control, EOBD
37 5A Brake light switch, instrument panel node
38 15A Central door locking
43 15A Windscreen/rear window washer pump
47 20A Driver side electric window
48 20A Passenger side electric window
49 5A Parking sensor, control backlighting, electric mirrors
51 7.5A Climate control, brake lights, clutch, electric sunroof, electric
mirrors
53 5A Instrument panel node




Engine compartment fuse box:

Fuse/Relay N° Rating Functions
02 20A HI-FI
08 30A Climate control electric fan
09 30A Headlight washers
10 10A Horns
14 15A Main-beam headlights
15 20A Electric roof motor
16 7.5A Dualogic transmission control unit power supply (+ ignition)
20 30A Heated rear window
30 15A Fog lights
84 10A Dualogic transmission control unit
85 20A Front power socket (with or without cigar lighter)
