Fiat 500 2017 Fuse Box

Fiat 500 2017 Fuse Box Info



Passenger compartment fuse box location:

The fuse box is located on the driver’s side under the instrument panel.



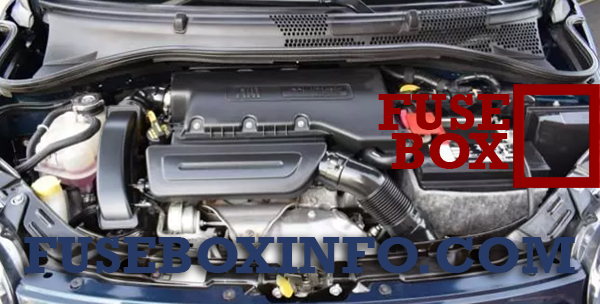

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Cavity Fuse/Relay N° Rating Functions
1 12 7.5A Right Low Beam
2 32 5A Front and Rear Ceiling Lights Trunk and Door Courtesy Lights
3 53 5A Instrument Panel Node
4 38 20A Central Door Locking
5 36 10A Diagnostic Socket, Vehicle Radio, Climate Control System
6 43 20A Bi-Directional Washer
7 48 20A Passenger Power Window
8 13 7.5A Left Low Beam, Headlamp Leveling
9 50 7.5A Airbag
10 51 5A Vehicle Radio Switch, Climate Control System, Stop Light, Clutch
11 37 5A Stop Light Switch, Instrument Panel Node
12 49 5A Exterior Mirror, GPS, Electric Mirror, Parking Sensor
13 31 5A Ignition, Climate Control
14 47 20A Driver Power Window






Engine compartment fuse box:

Fuse/Relay N° Rating Functions
01 60A Body Controller
02 20A Audio Amplifier
03 20A Ignition Switch
04 40A Anti-Lock Brake Pump
05 70A Electric Power Steering
06 20A Radiator Fan - Single Speed
06 30A Radiator Fan - Low Speed
07 40A Radiator Fan - High Speed
08 30A Blower Motor
09 10A Powertrain
10 10A Horn
11 15A Powertrain
11 10A Powertrain (Multiair – If Equipped)
14 5A High beam (Shutter)
15 15A Cigar Lighter
16 7.5A Transmission
17 25A Powertrain (Multiair – If Equipped)
17 15A Powertrain
18 15A Powertrain
18 5A Powertrain (Multiair – If Equipped)
19 7.5A Air Conditioning
20 15A Heated Seats – If Equipped
21 15A Fuel Pump
22 20A Powertrain
23 20A Anti-Lock Brake Valves
24 7.5A Stability Control System
30 15A Fog Lamps
82 30A Sunroof/ Convertible Top
83 20A Cooling Pump – If Equipped
84 10A Transmission
85 30A Rear Defroster
87 5A Rear Defroster
90 5A Heated Mirrors – If Equipped
