Fiat Punto 2019 Fuse Box Info

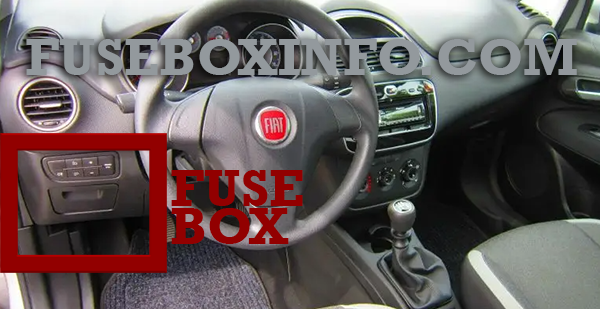

Passenger compartment fuse box location:
The fuse box is located on the driver's side under the instrument panel.

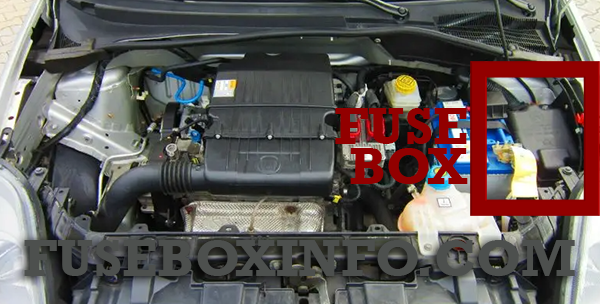

Engine compartment fuse box location:

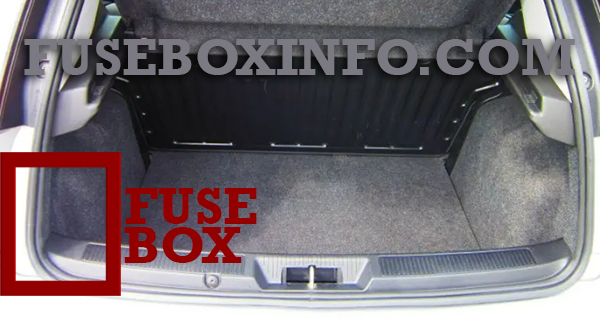

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1* | 7.5A | Right dipped beam headlight |
|
8* 8 |
7.5A 5A |
Lift dipped beam headlight Headlamp alignment corrector |
| 13 | 5A | Power supply for relay switch coils on engine fuse box and relay switch coils on Body Computer control unit |
| 2* | 5A | Front ceiling light, rear ceiling light, visor lights, door marker lights, luggage compartment light, glove box light |
| 5 | 10A | Power supply and battery for EOBD diagnosis, automatic climate control system control unit, alarm, radio, Blue&Me™ control unit |
| 11 | 5A | INT supply for instrument panel, switch on brake pedal (NO contact), third brake light |
| 4 | 20A | Door locking/unlocking motors, dead lock activation motors, tailgate unlocking motor |
| 6 | 20A | Windscreen/rear window washer pump |
| 14 | 20A | Electric window motor on driver-side front door |
| 7 | 20A | Electric window motor on passenger-side front door |
| 12 | 5A | INT supply for dashboard control lights, parking control unit, tyre pressure measurement control unit, electric door mirror movement, rain sensor, sunroof control unit, My Port infotelematic system socket, electrochromic rear view mirror |
| 3 | 5A | Instrument panel |
| 10 | 7.5A | Power supply for brake pedal switch (NC contact), clutch pedal switch, internal heater unit, Blue&Me™ control unit, radio setup system, voltage stabiliser control unit, reversing light on bumper, water in diesel filter sensor, plug preheating control unit, brake servo sensor, relay switch coils on engine fuse box, flow meter |
* Some versions only
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 09 | 20A | Hi-Fi sound system with control unit and subwoofer |
| 10 | 10A | Single tone horn |
| 14 | 15A | Left main beam headlight, right main beam headlight |
| 15 | 30A | Additional heater |
| 19 | 7.5A | Air conditioning compressor |
| 20 | 30A | Heated rear window |
| 21 | 15A | Electric fuel pump in tank |
| 30 | 15A | Left fog light, right fog light |
| 84 | 7.5A | Methane system supply management solenoid valves |
| 85 | - | Socket (set-up) |
| 86 | 15A | Passenger compartment socket, cigarette lighter |
| 87 | 5A | Battery charge status sensor |
| 88 | 7.5A | Defroster on driver-side door mirror, defroster on passenger-side door mirror |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 17 | 20A | Electric sun roof opening system |
| 14 | 7.5A | Alarm system management control unit |
| 04 | 10A | Electric lumbar movement on driver’s seat |
| 10 | 20A | Electric windows system (motor, control unit) on right-hand door |
| 16 | - | Available |
| 08 | 10A | Driver’s seat heater control unit |
| 07 | - | Tow hook system (capability for aftermarket fuse assembly) |
| 05 | 15A | Luggage compartment power socket |
| 11 | 20A | Electric windows system (motor, control unit) on left-hand door |
| 13 | 5A | iTPMS (tyre pressure monitoring system) control unit |
| 09 | 10A | Front passenger seat heater control unit |
| 01 | - | Available |
| 02 | - | Available |
| 03 | - | Available |
| 06 | - | Available |
| 15 | - | Available |
