Fiat Fullback 2017 Fuse Box Info

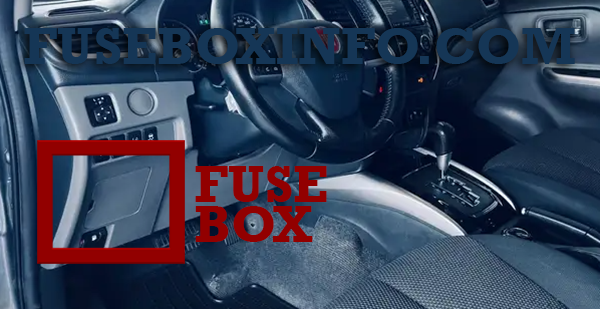

Passenger compartment fuse box location:
The fuse box is located on the driver's side under the instrument panel (LHD vehicles). The fuse box is located in the glove box (RHD vehicles).

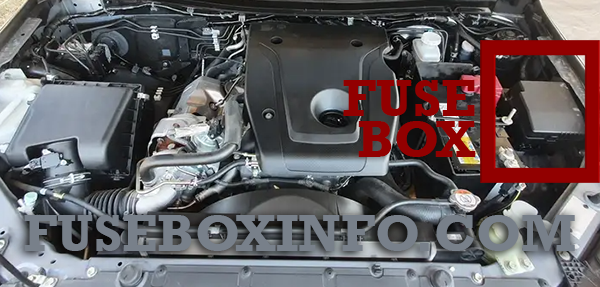

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Tail lamp (left) |
| 2 | 15A | Cigarette lighter |
| 3 | 10A | Ignition coil |
| 4 | 7.5A | Starter motor |
| 5 | 20A | Sunroof |
| 6 | 15A | Accessory socket |
| 7 | 7.5A | Tail lamp (right) |
| 8 | 7.5A | Outside rear view mirrors |
| 9 | 7.5A | Engine control unit |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog lamp |
| 12 | 15A | Central door lock |
| 13 | 15A | Room lamp |
| 14 | 15A | Rear window wiper |
| 15 | 10A | Gauge |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seat |
| 18 | 10A | Option |
| 19 | 7.5A | Heated door mirror |
| 20 | 20A | Windscreen wiper |
| 21 | 7.5A | Reversing lamps |
| 22 | 30A | Demister |
| 23 | 30A | Heater |
| 24 | 40A | Power seat |
| 25 | 10A | Radio |
| 26 | 20A | Electronic controlled unit |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| SBF1 | 30A | Fuse (+B) |
| SBF2 | 30A | Anti-lock braking system |
| SBF3 | 40A | Ignition switch |
| SBF4 | 30A | Electric window control |
| BF1 | - | - |
| BF2 | 30A | DC-DC (AUDIO) |
| F1 | 15A | Headlamp low beam (left) |
| F2 | 15A | Headlamp low beam (right) |
| F3 | 10A | Headlamp high beam (left) |
| F4 | 10A | Headlamp high beam (right) |
| F5 | 10A | Horn |
| F6 | 15A | Front fog lamps |
| F7 | 10A | Daytime running lamps |
| F8 | 20A | Radiator fan motor |
| F9 | 20A | T/F |
| F10 | - | - |
| F11 | 20A | Headlamp washer |
| F12 | 15A | Stop lamps (Brake lamps) |
| F13 | 10A | Ignition coil |
| F14 | 7.5A | Engine control |
| F15 | 7.5A | Alternator |
| F16 | 15A | Hazard warning flasher |
| F17 | 20A | Automatic transmission |
| F18 | 20A | Air conditioning |
| F19 |
15A 20A |
ETV Fuel line heater |
| F20 | 7.5A | Starter |
| F21 | - | - |
| F22 | 15A | Fuel pump |
| F23 | 20A | Engine |
| F24 | - | - |
| #1 | 20A | Spare fuse |
| #2 | 30A | Spare fuse |
