Dodge Viper 2004 Fuse Box Info

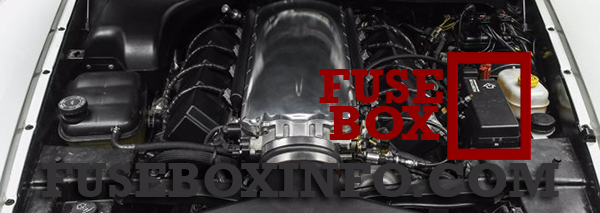

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Batt-Relay Contact, High Blower Motor Module ABS Pump Feed |
| 2 | 40A | ABS Pump Feed |
| 3 | 30A | Battery |
| 4 | 30A | Fused Feed to RS Amplifier or Power Amplifie |
| 5 | 30A | Ignition Switch (Run & Accessory)-(Downstream) |
| 6 | 40A | Batt |
| 7 | 30A | Batt-Relay Contact, ABS Pump Motor |
| 8 | 30A | Batt-Motor, Wiper |
| 9 | 40A | Batt-Fuseblock |
| 10 | 30A | Batt-Switch, Ignition (Run/Start/Accy) |
| 11 | 20A | Batt-Relay Contact, Auto Shutdown |
| 12 | 20A | Secondary Power Outlet Feed |
| 13 | 15A | Batt-Flasher, Hazard |
| 14 | 15A | Rear 02 Sensor to Heater Relay |
| 15 | 20A | Electric Heated RR. WDO (EBL) |
| 16, 17 | 20A | Fused Feed-Cigar Lighter |
| 18 | 15A | Batt-Locks, Power Door |
| 19 | 15A | Batt |
| 20 | 15A | Feed-Courtesy, Dome, Visor, Illuminated Entry, Reading |
| 21 | 15A | Fuse Feed to Stop Lamp Switch |
| 22 | 15A | Battery to AC Clutch Relay |
| 23, 24 | 10A | Airbag, Ignition Run |
| 25-29 | - | Batt-Relay Contact, High Blower Motor |
| 30-34 | - | Batt-Relay-Starter Contact to Solenoid |
| 35-39 | - | Feed-Auto Shutdown Relay Coil |
| 40-44 | - | Feed-Horn (From Relay) |
| 45-49 | - | Batt-Relay-Headlamps |
| 50-54 | - | Relay-A/C Clutch Output from Relay Contact (B+) |
| 55-59 | - | Left/Right Downstream Oxygen Sensor Output Feed FR |
| 60, 61 | 15A | Ignition Start/Run Relay Coil |
| 62, 63 | 15A | Ignition Start/Run Gauges |
| 64, 65 | 10A | Ignition Start/Run Airbag |
| 66, 67 | 20A | Feed-Ign Run/Acc Wiper Switch |
| 68, 69 | 20A | Left HID Headlamp |
| 70, 71 | 20A | Right HID Headlamp |
| 72-76 | - | Batt-Run/Acc Relay |
| 82-86 | - | Heated Rear Window (EBL) Relay |
| 87-91 | - | Batt-Motor, Fuel Pump Relay |
