Dodge Challenger 2016 Fuse Box Info

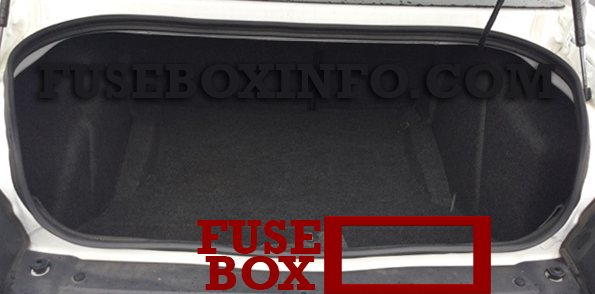

Luggage fuse box location:
The interior fuse box is located in the rear compartment under the spare tire access panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 60A | Front PDC Feed #1 |
| 3 | - | Spare |
| 4 | 60A | Front PDC Feed #2 |
| 5 | 30A | Sunroof / Dome Lamp – Police |
| 6 | 40A | Exterior Lighting #1 |
| 7 | 40A | Exterior Lighting #2 |
| 8 | 30A | Interior Lighting |
| 9 | 40A | Power Locks |
| 10 | 30A | Driver Door Control Module |
| 11 | 30A | Passenger Door Control Module |
| 12 | 20A | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
| 15 | 40A | HVAC Blower |
| 16 | 20A | Left Spot Lamp – Police |
| 17 | - | Spare |
| 18 | 30A | Mod Network Interface – Police |
| 19 | - | Spare |
| 20 | - | Spare |
| 21 | 30A | Fuel Pump |
| 22 | 20A | Right Spot Lamp – Police |
| 23 | 10A | Fuel Door/Diagnostic Port |
| 24 | 15A | Integrated Center Stack |
| 25 | 10A | Tire Pressure Monitor |
| 26 | 15A | Cygnus Transmission Module (Charger/300)/ Electronic Shift Module (Charger/300) |
| 27 | 25A | Amplifier – If Equipped |
| 31 | 25A | Power Seats – If Equipped |
| 32 | 15A | HVAC Module/ Cluster |
| 33 | 15A | Ignition Switch/RF Hub Module/Steering Column Lock (300) – If Equipped |
| 34 | 10A | Steering Column Module/Clock (300) |
| 35 | 5A | Battery Sensor |
| 36 | 15A | Electronic Exhaust Valve – If Equipped |
| 37 | 20A | Radio |
| 38 | 20A | Power Outlet Inside Arm Rest/Console Media Hub |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | 30A | Rear Defrost |
| 43 | 20A | Comfort Seat And Steering Wheel Module (Heated Steering Wheel/RR Heated Seats) |
| 44 | 10A | Park Assist / Blind Spot / Rear View Camera |
| 45 | 15A | Cluster / Rearview Mirror / Compass (Charger/ 300) / Humidity Sensor |
| 46 | - | Spare |
| 47 | 10A | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps- If Equipped |
| 48 | 20A | Active Suspension – If Equipped |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Front Heated Seats – If Equipped |
| 52 | 10A | Heated Cupholders/Rear Heated Seat Switches – If Equipped |
| 53 | 10A | HVAC Module/In Car Temperature Sensor |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | 10A | Airbag Module |
| 59 | 20A | Adjustable Pedals – Police |
| 60 | 5A | Heated Washer Nozzles (Charger) |
| 61 | - | Spare |
| 62 | - | Spare |
| 63 | - | Spare |
| 64 | 25A | Rear Windows (Charger/ 300) |
| 65 | 10A | Airbag Module |
| 66 | - | Spare |
| 67 | 15A | Rain and Light Sensor / Sunroof / Inside RR View Mirror / Power Outlet Illumination (Center Console) / Police Run Acc Relay |
| 68 | 15A | Dual USB Power Outlet – R/A Sense (Charger/300) Rear Sunshade (Charger/ 300) |
| 69 | - | Spare |
| 70 | - | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | 40A | Radiator Fan #1 – (Non 6.2L Supercharged) |
| 3 | 50A | Electric Power Steering #1 – If Equipped / Radiator Fan (6.2L Supercharged) – If Equipped |
| 4 | 30A | Starter |
| 5 | 40A | Electronic Stability Control |
| 6 | 30A | Electronic Stability Control |
| 7 | 20A | Police Ignition Run / ACC #1 |
| 8 | 20A | Police Ignition Run / ACC #2 |
| 9 | 20A | All-Wheel Drive Module – If Equipped |
| 10 | 10A | Security – If Equipped / Under hood Lamp – Police |
| 11 | 20A | Horns |
| 12 | 10A | Air Conditioning Clutch |
| 13 | - | Spare |
| 14 | - | Spare |
| 15 | 25A | Left HID – If Equipped |
| 16 | 20A | Right HID – If Equipped |
| 18 | 50A | Radiator Fan #2 – (Non 6.2L Supercharged) |
| 19 | 50A | Electric Power Steering #2 – If Equipped / Radiator Fan (6.2L Supercharged) |
| 20 | 30A | Wiper Motor |
| 21 | 30A | Headlamp Washers – If Equipped Police Bat Feed #2 |
| 22 |
40A 20A – Police |
Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 – If Equipped |
| 23 | 20A | Police Bat Feed # 1 |
| 24 | 20A | Police Ignition Run/ACC Feed # 3 |
| 28 | - | - |
| 29 | 15A | Transmission Control Module (Challenger/Charger Police) / Electronic Shift Module (Challenger) |
| 30 | - | Spare |
| 31 | 25A | Engine Module |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 25A | Powertrain #1 |
| 35 | 20A | Powertrain #2 |
| 36 | 10A | Anti-Lock Brake Module |
| 37 | 10A | Engine Controller / Rad Fan Relays (Charger/300) / Electric Power Steering Module (Charger/300) / Fuel Pump Relay (Charger/300) / 5–Speed |
| 38 | 10A | Airbag Module |
| 39 | 10A | EPS (Challenger) / EHPS (Police)/AC Clutch Relay / Vacuum Pump Relay / Fuel Pump Relay (Challenger) / Rad Fan Relays (Challenger) |
| 48 | 10A | AWD Module (Charger/300) / Front Axle Disconnect (Charger/300) / Adaptive Cruise (Challenger) – If Equipped |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Vacuum Pump |
| 52 | 5A | Adaptive Cruise (Charger/300) – If Equipped |
| 53 | - | Spare |
