Chrysler 300 2023 Fuse Box Info
Luggage compartment fuse box location:
The interior fuse box is located in the trunk under the spare tire access panel.

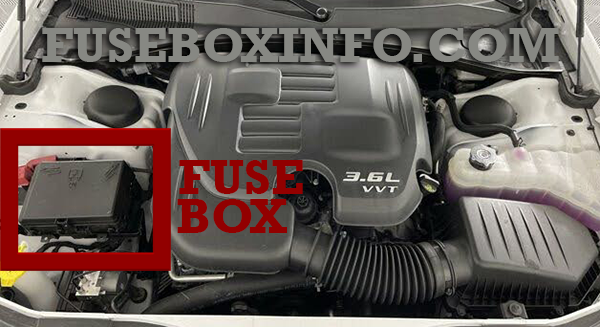

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 02 | 60A | Front PDC Feed #1 |
| 03 | - | Spare |
| 04 | 60A | Front PDC Feed #2 |
| 05 |
30A 20A – Police |
Sunroof* Dome Lamp – Police |
| 06 | 40A | Exterior Lighting #1 |
| 07 | 40A | Exterior Lighting #2 |
| 08 | 30A | Interior Lighting |
| 09 | 40A | Power Locks |
| 10 | 30A | Driver Door Control Module |
| 11 | 30A | Passenger Door Control Module |
| 12 | 20A | Cigar Lighter / IP APO / RR USB (Selectable Fuse)* |
| 15 | 40A | HVAC Blower |
| 16 | 20A | Left Spot Lamp – Police |
| 17 | 20A | Right Spot Lamp – Police |
| 18 | 30A | VISM Mod (Police) |
| 19 | - | Spare |
| 20 | - | Spare |
| 21 | 30A | Fuel Pump (Non 6.2L ADR) |
| 22 | 5A | Cyber Gateway Module |
| 23 | 10A | Fuel Door SW* / Diagnostic Port |
| 24 | 10A | Integrated Center Stack |
| 25 | 10A | Tire Pressure Monitor System |
| 26 | 15A | Trans Mod (Charger / 300) |
| 27 | 25A | Amplifier* |
| 31 | 25A | Power Seats* |
| 32 | 15A | HVAC Module/ Cluster |
| 33 | 15A | IGN SW / Wireless Mod / Steer Clmn Lock Mod / Remote Start* |
| 34 | 10A | Steering Column Module/Clock (300) |
| 35 | 5A | Battery Sensor |
| 36 | 15A | Active Exhaust Valve* |
| 37 | 20A | Radio |
| 38 | 20A | Media Hub / Console APO |
| 40 | 30A | Fuel Pump #1 (6.2L ADR) |
| 41 | 30A | Fuel Pump #2 (6.2L ADR) |
| 42 | 30A | Rear Defrost |
| 43 | 20A | Rear Heated Seats* / Heated Steering Wheel* |
| 44 | 10A | Park Assist*/ Blind Spot*/ Rear View Camera* |
| 45 | 15A | Cluster / Rearview Mirror / Lane Departure* |
| 46 | - | Spare |
| 47 | 10A | Adaptive Front Lighting*/ Day Time Running Lamps* |
| 48 | 20A | Active Suspension – (6.4L*/ 6.2L) |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Front Heated*/ Vented Seats* |
| 52 | 10A | Heated Cup Holders*/ Rear Heated Seat Switches* |
| 53 | 10A | HVAC Module / In Vehicle Temperature Sensor |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | 10A | Airbag Module |
| 59 | 20A | Adjustable Pedals – Police |
| 60 | - | Spare |
| 61 | - | Spare |
| 62 | - | Spare |
| 63 | - | Spare |
| 64 | 25A | Rear Windows (Charger/300) |
| 65 | 10A | Airbag Module |
| 66 | - | Spare |
| 67 | 10A | Rain & Light Sensor*/ Sunroof*/ Inside RearView Mirror / Police Run Acc |
| 68 | 10A | Rear USB Timer / Rear Sunshade* |
| 69 | - | Spare |
| 70 | - | Spare |
* If Equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 |
40A 50A |
Radiator Fan #1 – (Non 6.2L & Non – Police) Radiator Fan (6.2L & Police) |
| 03 | 50A | Electric Power Steering #1* |
| 04 | 30A | Starter |
| 05 | 40A | Anti Lock Brake |
| 06 | 30A | Anti Lock Brake |
| 07 | 20A | Police Ignition Run / ACC #1 |
| 09 | 20A | All-Wheel Drive Module* |
| 10 | 10A | Intrusion MOD (300)* / Under Hood Lamp – Police |
| 11 | 20A | Horns |
| 12 | 10A | Air Conditioning Clutch |
| 13 | - | Spare |
| 14 | - | Spare |
| 15 | 20A | Left HID Headlamp* |
| 16 | 20A | Right HID Headlamp* |
| 18 | 50A | Radiator Fan #2 |
| 19 | 50A | Electric Power Steering #2* |
| 20 | 30A | Wiper Motor |
| 21 |
30A 20A |
Headlamp Washers* Police Bat Feed #2 |
| 22 |
40A 20A |
LTR Cooling Pump (6.2L Eng) Police Bat Feed # 3 |
| 23 | 20A | Police Bat Feed # 1 |
| 24 | 20A | Police Ignition Run/ACC Feed # 3 |
| 28 | - | Spare |
| 29 | 15A | Auto Trans (Challenger / Police) |
| 30 | - | Spare |
| 31 | 25A | Engine Module |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 25A | ASD Feed #1 |
| 35 | 20A | ASD Feed #2 |
| 36 | 10A | Anti-Lock Brake Module / Steering Column Lock Module* |
| 37 | 10A | Engine Controller |
| 38 | 10A | Airbag Module |
| 39 | 10A | A/C Clutch / EPS*/ Vacuum Pump* |
| 48 | 10A | AWD Module / Front Axle Disconnect* |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Vacuum Pump* |
| 52 | 5A | Adaptive Cruise Control* |
| 53 | - | Spare |
* If Equipped
