Chrysler Pacifica 2027 Fuse Box Info
Engine compartment fuse box location:

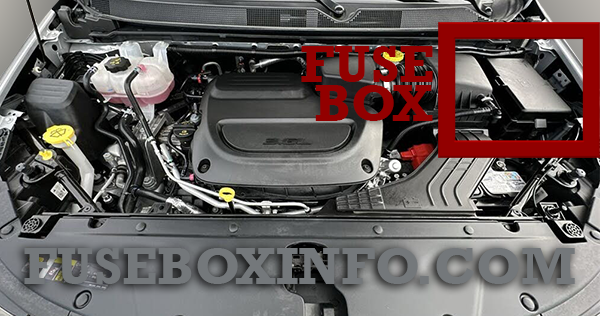

The Power Distribution Center is located in the engine compartment near the battery.
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | BOLT | PHEV: JUMP POST ONLY |
| 02 | BOLT | PHEV: ELECTRIC POWER STEERING |
| 03 | BOLT | NOT POPULATED |
| 04 | BOLT | NOT POPULATED |
| 05 | BOLT | PHEV: RADIATOR FAN |
| 06 | BOLT | BASE: INPUT FROM BATTERY PHEV: INTEGRATED DUAL CHARGE MODEULE (IDCM) |
| 07 | BOLT | NOT CONNECTED |
| 08 | BOLT | NOT CONNECTED |
| 09 | BOLT | NOT CONNECTED |
| 10 | BOLT | NOT CONNECTED |
| 11 | BOLT | NOT CONNECTED |
| 12 | 15A | BASE: (26MY) HID HEADLAMP RT PHEV: LOW TEMP ACTIVE PUMP (100 W) / ENABLE |
| 13 | 30A | (26MY) STOP / START (SPARE FOR NON-ESS) |
| 14 | - | NOT CONNECTED |
| 15 | - | NOT CONNECTED |
| 16 | 5A | PHEV: SW BANK PHEV MODE /BATTERY CHARGE INDICATOR |
|
17A 17B |
10A | BASE: ECM PHEV: ECM / PIM BASE: SPARE TERMINAL ONLY PHEV: SPARE |
| 18 | 20A | NAFTA: TT PARK LAMPS |
| 19 | - | NOT CONNECTED |
| 20 | 5A | INTELLIGENT BATTERY SENSOR (IBS) |
| 21 | 5A | PHEV : ELECTRONIC BOOST CONTROL MODULE (EBCM) (B+) |
| 22 | 20A | ECM |
|
23A 23B |
10A | FRT & RR HVAC CONTROL MOD /OCM / ESCL ESC (ELECTRIC STABILITY CONTROL) / EPS |
| 24 | 5A | PHEV: INTEGRATED DUAL CHARGE MODULE (IDCM) |
| 25 | 10A | BASE: DRIVE TRAIN CONTROL MODULE (DTCM) / POWER TRANSFER UNIT (PTU) PHEV: NOT POPULATED |
| 26 | - | NOT CONNECTED |
| 27 | 30A | POWER LIFTGATE MODULE |
| 28 | 25A | RR SLIDING DOOR MODULE - RT |
| 29 | 25A | RR DOOR CONTROL MODULE LT / POWER WINDOW MOTOR (RR-LT) |
| 30 | 30A | BASE: DRIVE TRAIN CONTROL MODULE (DTCM) PHEV: SPARE |
| 31 | 40A | CBC FEED (EXTERIOR LIGHTING #1) |
| 32 | 25A | RR SLIDING DOOR MODULE - LT |
| 33 | 30A | BASE: TT - 7-WAY CONNECTOR RECEPTICLE PHEV: SPARE |
| 34 | 30A | BASE: BRAKE VACUUM PUMP PHEV: NOT POPULATED |
| 35 | 25A | SUNROOF CONTROL MODULE |
| 36 | 40A | CBC FEED (EXTERIOR LIGHTING #2) |
| 37 | 30A | CBC FEED (INTERIOR LIGHTS) |
| 38 | 30A | DRIVER DOOR MODULE (DDM) /POWER WINDOW MOTOR (DR) /MIRROR HEATER (DR) / POWER MIRROR MOTORS (DR) / POWER FOLD MIRROR MOTOR (DR) /TURN SIGNAL INDICATOR (DR) |
| 39 | 25A | RR DOOR NODE - RT / PWR WINDOW MTR RR RT |
| 40 | 10A | ICS / FRT&RR HVAC / SCCM /EPB / SWS |
| 41 | 10A | DIAGNOSTIC PORT / MOD DATA RECORDER |
| 42 | 10A | ECM: ESS ONLY |
| 43 |
20A 15A |
BASE: TRAILER TOW RT STOP/TURN LAMPS (NAFTA ONLY) PHEV: HI TEMP AUX PUMP(50W) / ENABLE HV ELECTRIC COOLANT HEATER |
| 44 | 10A | HALF / PTS / DASM |
| 45 | 15A | IPC / SGW |
| 46 | 20A | PHEV: POWER INVERTER MODULE (PIM) - MAIN (B+) |
| 47 | 20A | FUEL PUMP MOTOR |
| 48 | 20A | (27MY) SLM FEED_LT |
| 49 | 20A | UCONNECT / DCSD / TBM |
| 50 | 20A | RR CARGO APO (12V) |
| 51 | 25A | AMPLIFIER / ACTIVE NOISE CONTROL (ANC) |
| 52 | 20A | RR WIPER MOTOR |
| 53 | 20A | BASE: TRAILER TOW LT STOP/TURN LAMPS (NAFTA) PHEV: POWER INVERTER MODULE (PIM) - REDUNDANT (B+) |
| 54 | 10A | ORC (AIRBAGS) |
| 55 | 15A | RF HUB / KIN / (ESL: BUX ONLY) |
| 56 | 20A | (27MY) SLM FEED_RT |
| 57 |
60A 40A |
BASE: VACUUM CLEANER PHEV: FRT HVAC BLOWER MOTOR |
| 58 | - | NOT CONNECTED |
| 59 | 40A | BASE: FRT HVAC BLOWER MOTOR PHEV: NOT POPULATED |
| 60 | 30A | PASS DOOR MODULE (PDM) /POWER WINDOW MOTORS (PASS) / MIRROR HEATER (PASS) / POWER MIRROR MOTORS (PASS) / POWER FOLD MIRROR MOTOR (PASS) / TURN SIGNAL INDICATOR (PASS) |
| 61 |
25A 20A |
BASE: FOLD FLAT SEAT LT (2ND RO2 STOW N GO) PHEV: PIM - PARK PAWL MOTOR |
| 62 | 30A | NOT POPULATED |
| 63 | 20A | FRONT HEATED SEATS |
| 64 | 20A | RR HEATED SEATS |
| 65 | 10A | (26MY) ORC (AIRBAGS) |
| 66 |
BASE: 15A PHEV (26MY) 10A/ 27(MY) 15A
|
LUMBAR SUPPORT DR + PASS |
| 67 | 20A | HORN |
| 68 | 10A | USB+AUX (UCI) PORT(IP) / VIDEO USB PORT / OVERHEAD DVD PLAYER (AFTERMARKET) |
| 69 | 10A | ACTIVE GRILL SHUTTER (EXCEPT PCO) / POWER MIRRORS (PCO ONLY) / HUMIDITY RAIN LIGHT SENSOR (HRLS) |
| 70 | 25A | IGNITION COIL / FUEL INJECTOR / IGNITION COIL CAPACITORS |
| 71 | 20A | CIGAR LIGHTER |
| 72 |
15A 10A |
BASE: (26MY) HID HEADLAMP LT PHEV: LOW TEMP PASSIVE PUMP (50W) / ENABLE |
| 73 | 15A | VENTILATED SEAT MOTORS DR+PASS / CSWM / HTD STEERING WHEEL |
| 74 | 20A | NOT POPULATED |
| 75 | 25A | RR HVAC BLOWER MOTOR |
| 76 |
BASE: 15A PHEV: 10A
|
MEDIA HUB 1,2 |
| 77 | 15A | DVD / BLU-RAY PLAYER |
| 78 |
20A 15A |
BASE: POWER TRANSFER UNIT (PTU) (B+) PHEV: FUEL TANK ISOLATION VALVE (FTIV) / EVAPORATIVE LEAK CHECK MODULE (ELCM) |
| 79 | 20A | ECM |
| 80 | 30A | PWR INVERTER (115V / 230V AC) |
| 81 | 40A | ESC - MOTOR PUMP |
| 82 | 30A | BASE: TT MODULE PHEV: SPARE |
| 83 | 40A | ESC - ECU & VALVES |
| 84 | 10A | HANDSFREE (LT RR DOOR / HFRM / RMS / VRM |
| 85 | 10A | BASE: NOT POPULATED PHEV: (27MY) ELECTRIC AC COMPRESSOR |
| 86 | 40A | BASE: FOLDING SEAT MODULE PHEV: ELECTRONIC BOOST CONTROL MODULE (EBCM) - MOTOR |
| 87 | 30A | 8-WAY POWER SEAT SWITCHES (PASS) / MEMORY SEAT (PASS) / POWER SEAT MOTOR (PASS) |
| 88 | 40A | CBC FEED (POWER LOCKS) |
| 89 | 30A | 8-WAY POWER SEAT SWITCHES (DR) / MEMORY SEAT (DR) / POWER SEAT MOTOR (DR) |
| 90 | 25A | BASE: FOLD FLAT SEAT (RT) (2ND ROW STOW 'N' GO |
| 91 | 5A | SECURITY GATEWAY |
| 92 | 20A | BASE: TRAILER TOW BACKUP LAMPS (NAFTA) PHEV: TRANS OIL PUMP (150W) / ENABLE |
| 93 | 30A | FRT WIPER HI/LO SPD |
| 94 | 10A | BASE/PHEV: NOT POPULATED |
| 95 | 15A | NOT POPULATED |
| 96 | 10A | BASE: A/C COMPRESSOR CLUTCH PHEV: 3-WAY VALVE - HI TEMP CABIN VALVE / BATTERY CHILLER VALVE |
| 97 | - | NOT CONNECTED |
|
98A 98B |
10A | USB CHARGE ONLY PORT (RUN/ACC) SELECTABLE FUSE LOCATION (CUSTOMER USAGE) - BATTERY |
|
99A 99B |
10A | PHEV: AHLM / HEADLAMP SWITCH RR CAMERA / LBSS / RBSS / CVPM / HUMIDITY SENSOR / IN CAR TEMP SENSOR |
|
100A 100B |
15A | BASE: NOT POPULATED PHEV: BPCM PHEV: BPCM - REDUNDANT |
| 101 | 5A | OVERHEAD CONSOLE / RR ICS |
| 102 | 30A | BASE: (26MY) FRT DRIVER & PASS POWER WINDOWS W/O DOOR NODES / RR POWER WINDOW LOCKOUT PHEV: NOT POPULATED |
| 103 | 30A | REAR DEFROSTER (EBL) |
|
104A 104B |
15A | TCM-EP2 (ZF) / E-SHIFTER INSTRUMENT CLUSTER |
|
105A 105B |
10A | REAR ENTERTAINMENT SCREEN RES + MEDIA HUB 1, 2 / 3RD ROW RECLINE ST SWITCH / LT&RT 3RD ROW RECLINE ST SWITCH / LT&RT STOW N GO ST SWITCH / LT&RT SLIDING DOOR SWITCH BACKLIGHT SUNROOF / CRVMM / OVER HEAD DVD PLAYER / INTERIOR MONITOR CAMERA / WIRELESS CHARGING PAD |
