Chrysler 300 2015 Fuse Box Info
Fuse box location:
The interior fuse box is located in the trunk under the spare tire access panel.

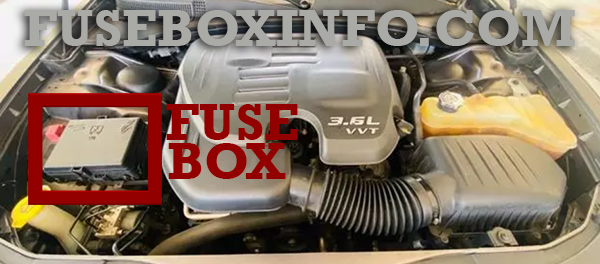

Engine compartment fuse box:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 2 | 60A | Front PDC Feed #1 |
| 3 | - | Spare |
| 4 | 60A | Front PDC Feed #2 |
| 5 | 30A | Sunroof / Dome Lamp – Police |
| 6 | 40A | Exterior Lighting #1 |
| 7 | 40A | Exterior Lighting #2 |
| 8 | 30A | Interior Lighting |
| 9 | 40A | Power Locks |
| 10 | 30A | Driver Door Control Module |
| 11 | 30A | Passenger Door Control Module |
| 12 | 20A | Dual USB Center Console Rear/Cigar Lighter IP – If Equipped |
| 15 | 40A | HVAC Blower |
| 16 | 20A | Left Spot Lamp – Police |
| 17 | - | Spare |
| 18 | 30A | Mod Network Interface – Police |
| 19 | - | Spare |
| 20 | - | Spare |
| 21 |
30A (6.2L Supercharged) 25A (LD STD) |
Fuel Pump (6.2L Supercharged) Fuel Pump (LD STD) |
| 22 |
20A – Police 10A – LA |
Right Spot Lamp – Police Integrated Center Stack – LA |
| 23 | 10A | Fuel Door/Diagnostic Port |
| 24 | 15A | Integrated Center Stack – LD/LX |
| 25 | 10A | Tire Pressure Monitor |
| 26 |
15A – LD/LX 25A – LA 30A – LA 6.2L Supercharged |
Transmission / Electronic Shift Module (LD/LX) Fuel Pump (LA) Fuel Pump (LA 6.2L Supercharged) |
| 27 | 25A | Amplifier – If Equipped |
| 31 | 25A | Power Seats |
| 32 | 15A | HVAC Module/ Cluster |
| 33 | 15A | Ignition Switch/RF hub Module/Steering Column Lock-LX If Equipped |
| 34 | 10A | Steering Column Module/ Clock/Spare – Police |
| 35 | 5A | Battery Sensor |
| 36 | 15A | Electronic Exhaust Valve – If Equipped |
| 37 | 15A | Radio |
| 38 |
15A – LD/LX 20A – LA |
Console Power Outlet/ Console Media Hub (LD/LX) Power Outlet Inside Arm Rest/Console Media Hub (LA) |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | 30A | Rear Defrost |
| 43 | 20A | Rear Heated Seats/ Steering Wheel |
| 44 | 10A | Park Assist / Blind Spot / Rear View Camera |
| 45 | 15A | Cluster / Rearview Mirror / Compass(LDLX)/Humidity Sensor |
| 46 | - | Spare |
| 47 | 10A | Adaptive Front Lighting / Auto High BEAM / Day Time Running Lamps- If Equipped |
| 48 | 20A | Active Suspension – SRT |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Front Heated Seats – If Equipped |
| 52 | 10A | Heated Cupholders/Rear Heated Seat Switches – If Equipped |
| 53 | 10A | HVAC Module/In Car Temperature Sensor |
| 54 | 10A | Airbag Module (LA) |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | 10A | Airbag Module (LD/LX) |
| 59 | 20A | Adjustable Pedals – Police |
| 60 | 5A | Heated Washer Nozzles (LD) |
| 61 | 20A | Cigar Lighter (LA) – If Equipped |
| 62 | - | Spare |
| 63 | - | Spare |
| 64 | 25A | Rear Windows (LD/LX) |
| 65 | 10A | Airbag Module |
| 66 | - | Spare |
| 67 | 10A | Rain and Light Sensor/ Sunroof |
| 68 | 15A | Dual USB Power Outlet – R/A Sense (LD/LX) Rear Sunshade (LD/LX) |
| 69 | - | Spare |
| 70 | - | Spare |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | 40A | Radiator Fan #1 – If Equipped |
| 3 | 50A | Power Steering #1 / Radiator Fan (6.2L Supercharged) – If Equipped |
| 4 | 30A | Starter |
| 5 | 40A | Electronic Stability Control |
| 6 | 30A | Electronic Stability Control |
| 7 | - | Spare |
| 8 | 20A | Police Ignition Run / ACC # 2 |
| 9 | 20A | All-Wheel Drive Module – If Equipped |
| 10 | 10A | Security – If Equipped / Under hood Lamp – Police |
| 11 | 20A | Horns |
| 12 | 10A | Air Conditioning Clutch |
| 13 | - | Spare |
| 14 | - | Spare |
| 15 | 20A | Left HID – If Equipped |
| 16 | 20A | Right HID – If Equipped |
| 18 | 50A | Radiator Fan #2 – If Equipped |
| 19 | 50A | Power Steering #2 / Radiator Fan (6.2L Supercharged) |
| 20 | 30A | Wiper Motor |
| 21 | 30A | Headlamp Washers – If Equipped / Police Feed |
| 22 |
40A 20A – Police |
Engine Cooling Pump (6.2L Supercharged) / Police Bat Feed # 3 – If Equipped |
| 23 | 20A | Police Bat Feed # 1 – If Equipped |
| 24 | 20A | Police Bat Feed # 3 – If Equipped |
| 28 | - | Spare |
| 29 | 15A | Transmission Control Module (LA/LD Police) |
| 30 | - | Spare |
| 31 | 25A | Engine Module |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 25A | Powertrain #1 |
| 35 | 20A | Powertrain #2 |
| 36 | 10A | Anti-Lock Brake Module |
| 37 | 10A | Engine Controller/Rad Fan Relays – If Equipped |
| 38 | 10A | Airbag Module |
| 39 | 10A | Power Steering Module/AC Clutch Relay |
| 48 | 10A | AWD Module/Front Axle Disconnect (LX) / Adaptive Cruise (LA) – If Equipped |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 20A | Vacuum Pump |
| 52 | 5A | Adaptive Cruise (LD/LX) – If Equipped |
| 53 | - | Spare |
