Chevrolet Cruze 2019 Fuse Box Info

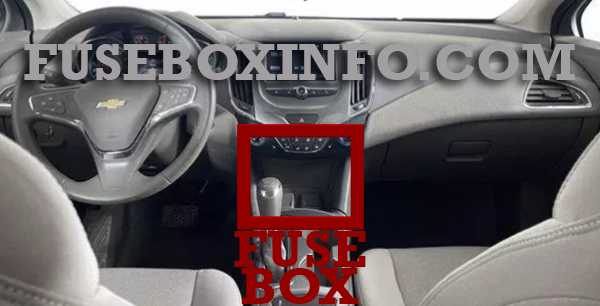

Passenger compartment fuse box location:
The instrument panel fuse box is in the center of the console, under the heater, ventilation, and air conditioning controls.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | Blower |
| 3 | Driver power seat |
| 4 | Front power outlet |
| 5 | - |
| 6 | Front power windows |
| 7 | ABS valves |
| 8 | Cyber gateway module |
| 9 | Body control module 8 |
| 10 | Rear power windows |
| 11 | Sunroof |
| 12 | Body control module 4 |
| 13 | Heated front seats |
| 14 | Exterior mirrors/Lane keep assist/ High-beam headlamp auto control |
| 15 | Body control module 1 |
| 16 | Body control module 7 |
| 17 | Body control module 6 |
| 18 | Body control module 3 |
| 19 | Data link connector |
| 20 | Airbag |
| 21 | A/C |
| 22 | Trunk release |
| 23 | Passive entry/ Passive start |
| 24 | AOS (Automatic Occupant Sensing) system |
| 25 | Steering wheel illumination switch |
| 26 | Ignition switch |
| 27 | Body control module 2 |
| 28 | Amplifier |
| 29 | USB charge |
| 30 | Shift lever illumination |
| 31 | Rear wiper |
| 32 | Virtual key system |
| 33 | DC AC converter |
| 34 | Parking assist/Side blind zone alert/ Infotainment/USB |
| 35 | OnStar |
| 36 | Display/Cluster |
| 37 | Radio |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Starter |
| 2 | Starter |
| 3 | O2 sensor |
| 4 | Engine control module |
| 5 | Aero shutter/ Fuel flex |
| 6 | Transmission control module |
| 7 | - |
| 8 | Engine control module |
| 9 | A/C |
| 10 | Canister vent |
| 11 | Heated seats |
| 12 | CGM |
| 13 | - |
| 14 | Diesel NOx/CVT8 transmission |
| 15 | O2 sensor |
| 16 | Fuel injection |
| 17 | Fuel injection |
| 18 | SCR module |
| 19 | Diesel NOx/Coolant motor |
| 20 | - |
| 21 | DC/AC converter |
| 22 | ABS system |
| 23 | Windshield washer/ Rear windows |
| 24 | - |
| 25 | Diesel fuel heating |
| 26 | Transmission |
| 27 | - |
| 28 | - |
| 29 | Rear window defogger |
| 30 | Mirror defogger |
| 31 | - |
| 32 | Display LED/DC DC converter/FPPM/ Electrical heater/A/C module |
| 33 | Anti-theft warning horn |
| 34 | Horn |
| 35 | Trunk power outlet |
| 36 | Right high-beam headlamp |
| 37 | Left high-beam headlamp |
| 38 | - |
| 39 | Front fog lamps |
| 40 | AIR solenoid |
| 41 | Switchable water pump/Water in fuel sensor |
| 42 | Manual headlamp leveling |
| 43 | Fuel pump |
| 44 | Interior rearview mirror/Rear vision camera/Trailer |
| 45 | Heated steering wheel |
| 46 | Instrument cluster |
| 47 | Steering column lock |
| 48 | Rear wiper |
| 49 | - |
| 50 | - |
| 51 | - |
| 52 | Engine/Transmission control module |
| 53 | - |
| 54 | Windshield wiper |
| 55 | - |
| 56 | - |
| 57 | - |
| Relays | |
| K01 | Starter |
| K02 | A/C control |
| K03 | Engine functions |
| K04 | - |
| K05 | Starter |
| K06 | Diesel fuel heating/ Secondary air induction |
| K07 | Right low-beam headlamp/Right daytime running lamp |
| K08 | Transmission |
| K09 | Diesel NOx |
| K10 | Fuel pump |
| K11 | - |
| K12 | High-beam headlamps |
| K13 | Left daytime running lamp/Left low-beam headlamp |
| K14 | Run/Crank |
| K15 | Mirror defogger/Rear window defogger/ Anti-theft warning sensor |
Additional fuses located near the vehicle battery:
| Fuse/Relay N° | Functions |
| 1 | Engine control module |
| 2 | Fuel pump |
| 3 | Transmission control module |
| 4 | Power supply |
