Chevrolet Cruze 2011 Fuse Box Info

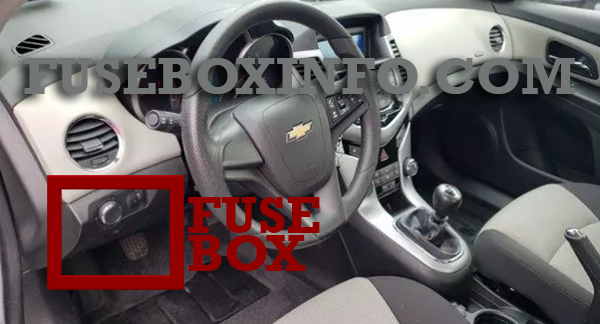

Passenger compartment fuse box location:
The instrument panel fuse box is in the driver side of instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Infotainment System/Hands ‐free Phone |
| 2 | Not Used |
| 3 | Body Control Module |
| 4 | Infotainment System |
| 5 | Information Display/ Parking Assist |
| 6 | Cigarette Lighter |
| 7 | Power Outlet |
| 8 | Body Control Module |
| 9 | Body Control Module |
| 10 | Body Control Module |
| 11 | Interior Fan |
| 12 | Not Used |
| 13 | Power Seat |
| 14 | Diagnostic Connector |
| 15 | Airbag |
| 16 | Central Locking System/Tailgate |
| 17 | Air Conditioning System |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Not Used |
| 21 | Instrument Cluster |
| 22 | Ignition/Electronic Key System |
| 23 | Body Control Module |
| 24 | Body Control Module |
| 25 | Steering Column Lock |
| 26 | Not Used |
| Relays | |
| 1 | Trunk Open |
| 2 | Logistics Module |
| 3 | Power Outlet |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Transmission Control Module |
| 2 | Engine Control Module |
| 3 | Not Used |
| 4 | Canister Vent Solenoid |
| 5 | Ignition |
| 7 | Not Used |
| 8 | Fuel Injection |
| 9 | Fuel Injection/ Ignition System |
| 10 | Engine Control Module |
| 11 | Lambda Sensor |
| 13 | Canister Vent Solenoid |
| 14 | Not Used |
| 15 | Rear Wiper |
| 16 | Ignition/Air Quality Sensor/Aero‐Shutter |
| 17 | Ignition/Airbag |
| 18 | Fuel Control Module |
| 19 | Not Used |
| 20 | Fuel Pump |
| 23 | Not Used |
| 29 | Not Used |
| 30 | Antilock Brake System |
| 31 | Body Control Module |
| 32 | Body Control Module |
| 33 | Front Seat Heating |
| 34 | Sunroof (If Equipped) |
| 35 | Infotainment System/Amplifier |
| 36 | Not Used |
| 37 | High Beam Right Side |
| 38 | High Beam Left Side |
| 39 | Not Used |
| 40 | Not Used |
| 46 | Cooling Fan |
| 47 | Lambda Sensor |
| 48 | Fog Lights |
| 49 | Not Used |
| 50 | Not Used |
| 51 | Horn |
| 52 | Ignition |
| 53 | Automatic Dimming Rearview Mirror |
| 54 | Light Switch/Light Control |
| 55 | Mirror Folding |
| 56 | Windshield Washer |
| 57 | Steering Column Lock |
| 58 | Not Used |
| 60 | Heated Mirror |
| 61 | Heated Mirror |
| 62 | Air Conditioning |
| 63 | Rear Window Sensor |
| 64 | Air Quality Sensor |
| 65 | Rear Fog Lamp |
| 66 | Rear Washer |
| 67 | Fuel System Control Module |
| 68 | Not Used |
| 69 | Battery Voltage Sensor |
| 70 | Rain Sensor |
| 71 | Not Used |
| J‐Case Fuses | |
| 6 | Front Wipers |
| 12 | Starter Solenoid |
| 21 | Rear Power Windows |
| 22 | Not Used |
| 24 | Front Power Windows |
| 25 | Electronic Vacuum Pump |
| 26 | Antilock Brake System Pump |
| 27 | Electronic Key System |
| 28 | Rear Window Defogger |
| 41 | Not Used |
| 42 | Cooling Fan K2 |
| 43 | Not Used |
| 44 | Not Used |
| 45 | Cooling Fan K1 |
| 59 | Not Used |
| Micro Relays | |
| 1 | A/C Clutch |
| 2 | Starter Solenoid |
| 4 | Front Wiper Speed |
| 5 | Front Wiper On |
| 6 | Not Used |
| 10 | Cooling Fan K3 |
| 12 | Cooling Fan K3 |
| 14 | Not Used |
| U‐Micro Relays | |
| 3 | Cooling Fan K7 |
| 8 | Fuel Pump |
| 11 | Not Used |
| HC Relays | |
| 9 | Cooling Fan K2 |
| 13 | Cooling Fan K1 |
| Mini Relays | |
| 7 | Ignition 87 Main |
| 15 | Ignition 15 |
| 16 | Not Used |
| 17 | Not Used |
