Chevrolet Volt 2017 Fuse Box Info

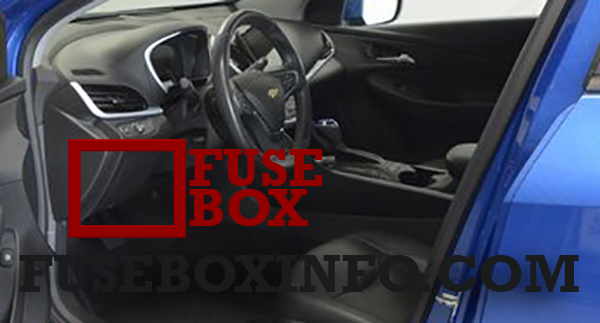

Passenger compartment fuse box location:
The instrument panel fuse box is on the left side of the instrument panel.

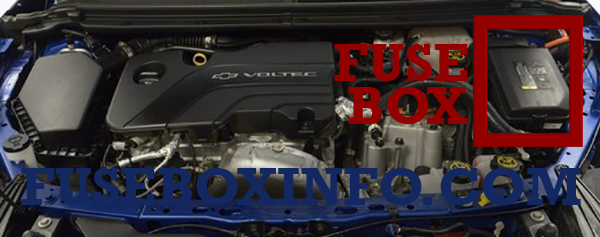

Engine compartment fuse box location:

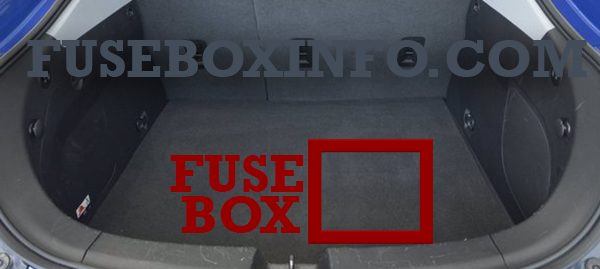

Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | - |
| 2 | - |
| 3 | - |
| 4 | HVAC blower |
| 5 | Body control module 2 |
| 6 | - |
| 7 | - |
| 8 | Body control module 3 |
| 9 | Fuel power pump module |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | Data link connector |
| 18 | Body control module 7 |
| 19 | Cluster |
| 20 | Body control module 1 |
| 21 | Body control module 4 |
| 22 | Body control module 6 |
| 23 | OnStar |
| 24 | Airbag |
| 25 | Display |
| 26 | Infotainment |
| 27 | - |
| 28 | - |
| 29 | Overhead console |
| 30 | Radio |
| 31 | Steering wheel controls |
| 32 | Body control module 8 |
| 33 | HVAC/Integrated light solar sensor |
| 34 | Passive entry/ Passive start |
| 35 | Rear closure |
| 36 | Charger |
| 37 | - |
| 38 | - |
| 39 | - |
| 40 | - |
| 41 | - |
| 42 | - |
| Circuit Breakers | |
| CB1 | Front auxiliary power outlet |
| CB2 | Rear auxiliary power outlet |
| Relays | |
| R1 | - |
| R2 | Retained accessory power |
| R3 | Hatch |
| R4 | - |
| R5 | - |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 01 | - |
| 02 | - |
| 03 | Non walk home |
| 04 | Engine control module |
| 05 | Aeroshutter |
| 06 | Traction power inverter module 1 |
| 07 | Traction power inverter module 2 |
| 08 | Engine control module |
| 09 | A/C module |
| 10 | Vehicle integration control module |
| 11 | Electric brake boost |
| 12 | Rechargeable energy storage system |
| 13 | Cabin heater control module |
| 14 | Coolant heater control module |
| 15 | Emissions |
| 16 | Ignition coils |
| 17 | Engine control module |
| 18 | - |
| 19 | - |
| 20 | Electric brake boost |
| 21 | Front wiper |
| 22 | ABS pump |
| 23 | Front windshield wiper |
| 24 | - |
| 25 | - |
| 26 | - |
| 27 | ABS module |
| 28 | Left power window |
| 29 | Rear window defogger |
| 30 | Heated mirrors |
| 31 | - |
| 32 | Variable functions |
| 33 | - |
| 34 | Horn |
| 35 | Coolant rechargeable energy storage system pump |
| 36 | Right high-beam headlamp |
| 37 | Left high-beam headlamp |
| 38 | - |
| 39 | - |
| 40 | - |
| 41 | Miscellaneous run/ Crank |
| 42 | Run/Crank 3 |
| 43 | - |
| 44 | Voltage current temperature module run/Crank |
| 45 | Heated steering wheel |
| 46 | Vehicle integration control module run/ Crank |
| 47 | - |
| 48 | - |
| 49 | - |
| 50 | - |
| 51 | - |
| 52 | Engine control module/Traction power inverter module |
| 53 | Left cooling fan |
| 54 | Right cooling fan |
| 55 | Electric pump |
| 56 | - |
| 57 | - |
| Relays | |
| K01 | - |
| K02 | - |
| K03 | Engine control module |
| K04 | - |
| K05 | - |
| K06 | - |
| K07 | - |
| K08 | - |
| K09 | - |
| K10 | - |
| K11 | - |
| K12 | High-beam headlamps |
| K13 | - |
| K14 | Run/Crank |
| K15 | Rear window defogger |
| K16 | Horn PCB relay |
| K17 | - |
| K18 | - |
| K19 | Coolant pump PCB relay |
| K20 | - |
| K21 | - |
| K22 | Front washer |
| K23 | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | - |
| 2 | - |
| 3 | - |
| 4 | - |
| 5 | Pedestrian protection |
| 6 | On-board charger module |
| 7 | Front heated seat |
| 8 | Front heated seat |
| 9 | Driver door/Mirror switches |
| 10 | - |
| 11 | Amplifier |
| 12 | Steering wheel switch backlighting |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | Obstacle detection |
| 20 | Fuel |
| 21 | Rear heated seat |
| 22 | Right power windows |
| Relays | |
| K1 | - |
| K2 | - |
| K3 | - |
| K4 | - |
| K5 | - |
