Chevrolet Volt 2011 Fuse Box Info
Passenger compartment fuse box location:
Driver’s Side Instrument Panel Fuse Box is on the end of the instrument panel, on the driver side of the vehicle.
Passenger’s Side Instrument Panel Fuse Box is on the end of the instrument panel, on the passinger side of the vehicle.

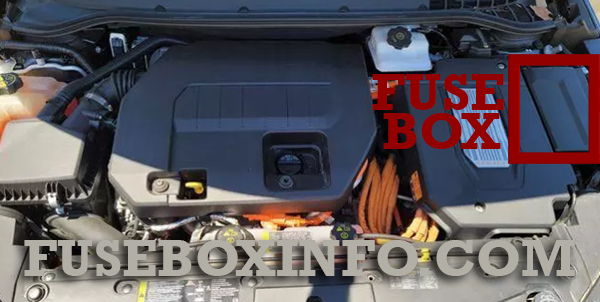

Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s Side):
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Power Outlet – Top of IP Storage Bin |
| 2 | Radio |
| 3 | Instrument Cluster |
| 4 | Infotainment Display |
| 5 | Heating, Ventilation & Air Conditioning/ Integrated Center Stack Switches |
| 6 | Airbag (Sensing Diagnostic Module/ Passenger Sensing Module) |
| 7 | Data Link Connector 1/Data Link Connector 2 |
| 8 | Empty |
| 9 | Empty |
| 10 | Body Control Module 1/Body Control Module Electronics/Keyless Entry/Power Moding/ Center High Mount Stoplamp/License Lamps/Left Daytime Running Lamp/Left Front Parking Lamp/ Right Rear Taillamp/ Hatch Release Relay Control/ Washer Pump Relay Control/Switch Indicator Lights |
| 11 | Body Control Module 4/Left Headlamp |
| 12 | Empty |
| 13 | Empty |
| 14 | Empty |
| 15 | Power Outlet (Inside Floor Console/Rear of Floor Console) |
| 16 | Empty |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | Retained Accessory Power Relay for Power Outlets |
| R2 | Empty |
| R3 | Empty |
| R4 | Empty |
| Diodes | |
| DIODE | Empty |
Passenger compartment fuse box (Passenger’s Side):
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Steering Wheel Switch Backlighting |
| 2 | Empty |
| 3 | Empty |
| 4 | Body Control Module 3/Right Headlamp |
| 5 | Body Control Module 2/Body Control Module Electronics/Hatch Lamp/Right Daytime Running Lamp/ Shifter Lock/Switch Backlighting |
| 6 | Body Control Module 5/Retained Accessory Power Relay Control/Right Front Turn Signal Lamp/Left Rear Stop and Turn Signal Lamp/Right Front Parking Lamp/Left Rear Taillamp |
| 7 | Body Control Module 6/ Map Lights/ Courtesy Lights/ Back – up Lamp |
| 8 | Body Control Module 7/Left Front Turn Signal/Right Rear Stop and Turn Signal Lamp/Child Security Lock Relay Control |
| 9 | Body Control Module 8/Locks |
| 10 | OnStar® |
| 11 | Universal Garage Door Opener (If Equipped) |
| 12 | Blower Motor |
| 13 | Empty |
| 14 | Empty |
| 15 | Empty |
| 16 | Empty |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | Empty |
| R2 | Empty |
| R3 | Empty |
| R4 | Empty |
| Diodes | |
| DIODE | Empty |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Mini Fuses | |
| 1 | Engine Control Module – Switched Power |
| 2 | Emissions |
| 3 | Not Used |
| 4 | Ignition Coils/ Injectors |
| 5 | Empty |
| 6a | Empty |
| 6b | Rear Defogger (Lower Grid) |
| 7 | Empty |
| 8 | Empty |
| 9 | Heated Mirrors |
| 10 | Air Conditioning Control Module |
| 11 | Traction Power Inverter Module – Battery |
| 12 | Cabin Heater Pump and Valve |
| 13 | Empty |
| 14 | Empty |
| 15 | Traction Power Inverter Module and Transmission Control Module – Battery |
| 17 | Engine Control Module – Battery |
| 22 | Left High‐Beam Headlamp |
| 24 | Empty |
| 25 | Empty |
| 26 | Empty |
| 31 | Rechargeable Energy Storage System (High Voltage Battery) Coolant Pump |
| 32 | Sensing Diagnostic Module – Run/Crank |
| 33 | Run/Crank for Fuel System Control Module/Vehicle Integration Control Module |
| 34 | Vehicle Integration Control Module – Battery |
| 35 | Power Electronics Coolant Pump |
| 36 | Empty |
| 37 | Cabin Heater Control Module |
| 38 | Empty |
| 39 | Rechargeable Energy Storage System (High Voltage Battery) Control Module |
| 40 | Front Windshield Washer |
| 41 | Right High‐Beam Headlamp |
| 46 | Empty |
| 47 | Empty |
| 49 | Empty |
| 50 | Rear Vision Camera – Run/ Crank (If Equipped) |
| 51 | Run/Crank for ABS/Rechargeable Energy Storage System (High Voltage Battery)/ Charger |
| 52 | Engine Control Module/ Transmission Control Module – Run/Crank |
| 53 | Traction Power Inverter Module – Run/Crank |
| 54 | Run/Crank for Air Conditioning Control Module/Instrument Cluster/Passenger Airbag Display/ Accessory Power Module |
| J‐Case Fuses | |
| 16 | Empty |
| 18 | Empty |
| 19 | Power Window – Front |
| 20 | Empty |
| 21 | Antilock Brake System Electronic Control Unit |
| 23 | Charge Port Door |
| 27 | Empty |
| 28 | Empty |
| 29 | Empty |
| 30 | Antilock Brake System Motor |
| 42 | Cooling Fan – Right |
| 43 | Front Wipers |
| 44 | Charger |
| 45 | Empty |
| 48 | Cooling Fan – Left |
| Mini Relays | |
| 3 | Powertrain |
| 4 | Rear Defog (Lower Grid)/Heated Mirrors |
| 5 | Charge Port Door |
| 7 | Empty |
| 9 | Empty |
| 11 | Empty |
| 12 | Empty |
| 13 | Empty |
| 14 | Run/Crank |
| Micro Relays | |
| 1 | Empty |
| 2 | Empty |
| 6 | Empty |
| 8 | Empty |
| 10 | Empty |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Empty |
| 2 | Fuel System Control Module |
| 3 | Passive Start Module |
| 4 | Heated Seats (If Equipped) |
| 5 | Driver Door Switches (Outside Rearview Mirror/ Charge Port Door Release/Refuel Request/Driver Window Switch) |
| 6 | Fuel (Diurnal Valve and Evap. Leak Check Module) |
| 7 | Accessory Power Module Cooling Fan |
| 8 | Amplifier (If Equipped) |
| 9 | Empty |
| 10 | Regulated Voltage Control/Ultrasonic Front and Rear Parking Assist (If Equipped) |
| 11 | Horn |
| 12 | Rear Power Windows |
| 13 | Electric Parking Brake |
| 14 | Rear Defog (Upper Grid) |
| 15 | Empty |
| 16 | Hatch Release |
| 17 | Empty |
| 18 | Empty |
| Relays | |
| R1 | Rear Defog (Upper Grid) |
| R2 | Hatch Release |
| R3 | Empty |
| R4 | Empty |
| R5 | Empty |
| R6 | Empty |
| R7 | Empty |
| R8 | Horn |
| Diodes | |
| DIODE | Empty |
