Chevrolet Silverado 1500 2016 Fuse Box Info
Passenger compartment fuse box location:
The left instrument panel fuse box is located on the driver side edge of the instrument panel.
The right instrument panel fuse box is located on the passenger side edge of the instrument panel.

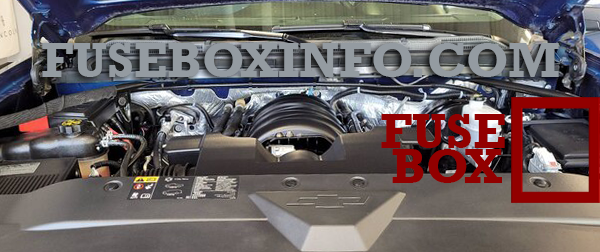

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left):
| Fuse/Relay N° | Functions |
| 1 | Accessory Power Outlet 2 |
| 2 | SEO Retained Accessory Power |
| 3 | Universal Garage Door Opener/Inside Rearview Mirror |
| 6 | Body Control Module 3 |
| 7 | Body Control Module 5 |
| 8 | Driver Window Switch/Mirror Switch |
| 9 | - |
| 10 | Accessory Power Outlet Retained Accessory Power |
| 11 | Accessory Power Outlet Battery |
| 12 | Accessory Power Outlet 1/Cigarette Lighter |
| 13 | Discrete Logic Ignition Switch |
| 14 | Switch Backlighting |
| 17 | Body Control Module 1 |
| 19 | - |
| 20 | - |
| 22 | HVAC/Auxiliary HVAC/Ignition |
| 23 | Instrument cluster/ Ignition sensing diagnostic module/ Ignition |
| 24 | - |
| 25 | Data Link Connector/ Driver Seat Module |
| 26 | Passive entry/Passive start/HVAC |
| 27 | - |
| 28 | - |
| 29 | Park Enable/ Electrically Adjustable Pedals |
| 30 | SEO |
| 31 | Accessory/Run Crank |
| 32 | Heated Steering Wheel |
| 33 | - |
| 34 | Instrument Cluster |
| 36 | - |
| 37 | - |
| 38 | 4WD TREC |
| 40 | Left Doors |
| 41 | Driver Power Seat |
| 43 | Left heated, cooled or ventilated seats (if equipped) |
| 44 | Right heated, cooled or ventilated seats (if equipped) |
| 45 | - |
| 49 | Retained Accessory Power |
| 50 | Run/Crank |
Passenger compartment fuse box (Right):
| Fuse/Relay N° | Functions |
| 1 | Accessory Power Outlet 3 |
| 2 | Accessory Power Outlet 4 |
| 7 | Body Control Module 4 |
| 8 | Body Control Module 8 |
| 9 | Rear Seat Entertainment |
| 10 | Cargo Lamp |
| 15 | Steering Wheel Controls |
| 18 | Radio |
| 19 | - |
| 20 | Sunroof |
| 23 | Airbag/Info |
| 26 | Export/Power Take Off/SEO Battery 1 |
| 27 | Obstacle Detection/ USB Ports |
| 28 | Body Control Module 2 |
| 32 | SEO Battery 2 |
| 35 | AC Inverter |
| 36 | Amplifier |
| 37 | - |
| 39 | Rear Sliding Window |
| 42 | Right Door Window Motor |
| 43 | Front Blower |
| 44 | SEO |
| 45 | Body Control Module 6 |
| 46 | Body Control Module 7 |
| 47 | Passenger Seat |
| 50 | Retained Accessory Power |
| 51 | Rear Sliding Window Open |
| 52 | Rear Sliding Window Close |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Trailer Brake |
| 2 | Trailer Battery |
| 3 | ABS Pump |
| 4 | Instrument Panel BEC 1 |
| 5 | MSB passenger |
| 6 | 4WD transfer case electronic control |
| 7 | Electronic park brake |
| 8 | Instrument Panel BEC 2 |
| 9 | MSB driver |
| 10 | Rear Window Defogger |
| 11 | Starter |
| 12 | Cooling Fan 1 |
| 13 | Cooling Fan 2 |
| 14 | Left trailer stop/ Turn lamps |
| 15 | Trailer parking lamps |
| 16 | Trailer reverse lamps |
| 17 | Right trailer stop/ Turn lamps |
| 18 | Fuel Pump |
| 19 | Integrated Chassis Control Module |
| 20 | Electronic Suspension Control Module |
| 21 | Fuel Pump Power Module |
| 22 | Upfitter 1 |
| 23 | Upfitter 2 |
| 24 | Front Wiper |
| 25 | ABS Valves |
| 26 | Upfitter 2 |
| 27 | Upfitter 3 |
| 28 | Right parking lamps |
| 29 | Left parking lamps |
| 30 | Upfitter 3 |
| 31 | Upfitter 4 |
| 32 | Upfitter 4 |
| 33 | Reverse lamps |
| 34 | Engine control module/Ignition |
| 35 | A/C Clutch |
| 36 | Heated Mirrors |
| 37 | Upfitter 1 |
| 38 | Center High-Mounted Stoplamp |
| 39 | Miscellaneous/ Ignition |
| 40 | Transmission/ Ignition |
| 41 | Fuel Pump 2 |
| 42 | Cooling Fan Clutch |
| 43 | Engine |
| 44 | Fuel injectors A-odd |
| 45 | Fuel injectors B-even |
| 46 | O2 Sensor B |
| 47 | Throttle Control |
| 48 | Horn |
| 49 | Fog Lamp |
| 50 | O2 Sensor A |
| 51 | Engine Control Module |
| 52 | Interior Heater |
| 53 | Accessory power module/TPM pump |
| 54 | Front washer |
| 55 | A/C/Battery regulated voltage control |
| 56 | A/C module/ Battery pack |
| 57 | Transmission control module/ Engine control module |
| 58 | Headlamps |
| 59 | Fuel pump |
| 60 | Upfitter 2 |
| 61 | Upfitter 3 |
| 62 | Upfitter 4 |
| 63 | Trailer parking lamps |
| 64 | Run/Crank |
| 65 | Upfitter 1 |
| 66 | Fuel pump 2 |
| 67 | A/C control |
| 68 | Starter |
| 69 | Rear window defogger |
| 70 | Engine control module |
| 71 | Cooling fan clutch |
| 72 | CKT 95 |
| 73 | CKT 92 |
