Chevrolet Silverado 1500 2014 Fuse Box Info
Passenger compartment fuse box location:

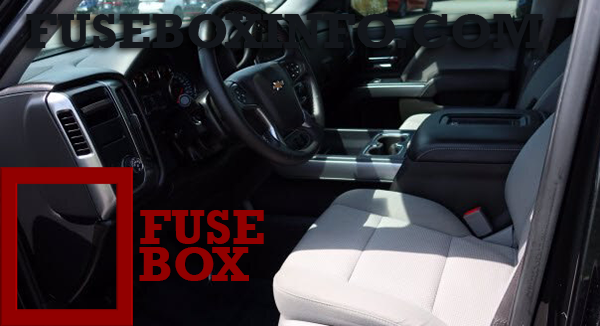

The left instrument panel fuse box is located on the driver side edge of the instrument panel.

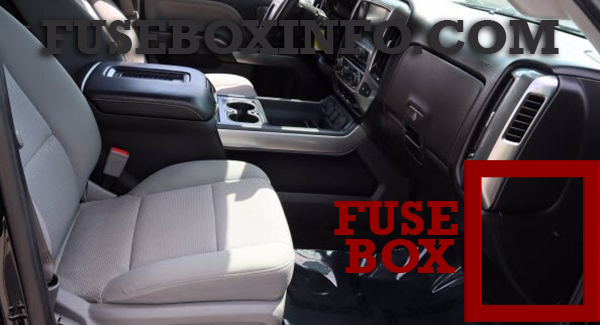

The right instrument panel fuse box is located on the passenger side edge of the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left):
| Fuse/Relay N° | Functions |
| 1 | Accessory Power Outlet 2 |
| 2 | SEO Retained Accessory Power |
| 3 | Universal Garage Door Opener/Inside Rearview Mirror |
| 6 | Body Control Module 3 |
| 7 | Body Control Module 5 |
| 8 | Driver Window Switch/Mirror Switch |
| 9 | Spare |
| 10 | Accessory Power Outlet Retained Accessory Power |
| 11 | Accessory Power Outlet Battery |
| 12 | Retained Accessory Power/Accessory |
| 13 | Discrete Logic Ignition Switch |
| 14 | Switch Backlighting |
| 17 | Body Control Module 1 |
| 19 | Spare |
| 20 | Spare |
| 22 | Heater, Ventilation and Air Conditioning/ Auxiliary Heater, Ventilation and Air Conditioning Ignition |
| 23 | Instrument Cluster Ignition/Sensing Diagnostic Module Ignition |
| 24 | Spare |
| 25 | Data Link Connector/ Driver Seat Module |
| 26 | Passive Entry Passive Start/Heater, Ventilation and Air Conditioning |
| 27 | Spare |
| 28 | Spare |
| 29 | Park Enable/ Electrically Adjustable Pedals |
| 30 | SEO |
| 31 | Accessory/Run Crank |
| 32 | Heated Steering Wheel |
| 33 | Spare |
| 34 | Instrument Cluster |
| 36 | Spare |
| 37 | Spare |
| 40 | Left Doors |
| 41 | Driver Power Seat |
| 43 | Left Front Heated/ Cooled Seat |
| 44 | Right Front Heated/ Cooled Seats |
| 45 | Spare |
| 49 | Accessory Power Outlet 1/Cigarette Lighter |
| 50 | Run/Crank |
Passenger compartment fuse box (Right):
| Fuse/Relay N° | Functions |
| 1 | Accessory Power Outlet 3 |
| 2 | Accessory Power Outlet 4 |
| 7 | Body Control Module 4 |
| 8 | Body Control Module 8 |
| 9 | Rear Seat Entertainment |
| 10 | Cargo Lamp |
| 15 | Steering Wheel Controls |
| 18 | Radio |
| 19 | Spare |
| 20 | Sunroof |
| 23 | Airbag/Info |
| 26 | Export/Power Take Off/SEO Battery 1 |
| 27 | Obstacle Detection/ USB Ports |
| 28 | Body Control Module 2 |
| 32 | SEO Battery 2 |
| 35 | AC Inverter |
| 36 | Amplifier |
| 37 | Spare |
| 39 | Rear Sliding Window |
| 42 | Right Door Window Motor |
| 43 | Front Blower |
| 44 | TPIM2/SEO |
| 45 | Body Control Module 6 |
| 46 | Body Control Module 7 |
| 47 | Passenger Seat |
| 50 | Retained Accessory Power/Accessory |
| 51 | Rear Sliding Window Open |
| 52 | Rear Sliding Window Close |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Trailer Brake |
| 2 | Trailer Battery |
| 3 | Antilock Brake System Pump |
| 4 | Instrument Panel BEC 1 |
| 5 | Spare |
| 6 | 4WD Trec |
| 7 | Spare |
| 8 | Instrument Panel BEC 2 |
| 9 | Spare |
| 10 | Rear Window Defogger |
| 11 | Starter |
| 12 | Cooling Fan 1 |
| 13 | Cooling Fan 2 |
| 14 | Trailer Stop/Turn Lamps, Left |
| 15 | Trailer Park Lamps |
| 16 | Trailer Back-up Lamp |
| 17 | Trailer Stop/Turn Lamps, Right |
| 18 | Fuel Pump |
| 19 | Integrated Chassis Control Module |
| 20 | Electronic Suspension Control Module |
| 21 | Fuel Pump Power Module |
| 22 | Upfitter Switch 1 |
| 23 | Upfitter 2 |
| 24 | Front Wiper |
| 25 | Antilock Brake System Valves |
| 26 | Upfitter SW 2 |
| 27 | Upfitter SW 3 |
| 28 | Parking Lamps, Right |
| 29 | Parking Lamps, Left |
| 30 | Upfitter 3 |
| 31 | Upfitter SW 4 |
| 32 | Upfitter 4 |
| 33 | Back-up Lamps |
| 34 | Engine Control Module Ignition |
| 35 | Air Conditioning Compressor Clutch |
| 36 | Heated Mirrors |
| 37 | Upfitter 1 |
| 38 | Center High-Mounted Stoplamp |
| 39 | Miscellaneous Ignition |
| 40 | Transmission Ignition |
| 41 | Fuel Pump 2 |
| 42 | Cooling Fan Clutch |
| 43 | Engine |
| 44 | Fuel Injectors A, Odd |
| 45 | Fuel Injectors B, Even |
| 46 | Oxygen Sensor B |
| 47 | Throttle Control |
| 48 | Horn |
| 49 | Fog Lamp |
| 50 | Oxygen Sensor A |
| 51 | Engine Control Module |
| 52 | Interior Heater |
| 53 | Spare |
| 54 | Aeroshutter |
| 55 | Front Washer |
| 56 | Air Conditioning Compressor/ Battery Regulated Voltage Control |
| 57 | Air Conditioning Compressor Module/ Battery Pack |
| 58 | Transmission Control Module/ Engine Control Module |
| 59 | Euro Trailer |
| 60 | Headlamps |
| 61 | Upfitter 2 |
| 62 | Upfitter 3 |
| 63 | Upfitter 4 |
| 64 | Trailer Park Lamps |
| 65 | Run/Crank |
| 66 | Upfitter 1 |
| 67 | Fuel Pump 2 |
| 68 | Air Conditioning Control |
| 69 | Starter |
| 70 | Rear Window Defogger |
| 71 | Engine Control Module |
| 72 | Cooling Fan Clutch |
