Cadillac SRX 2014 Fuse Box Info

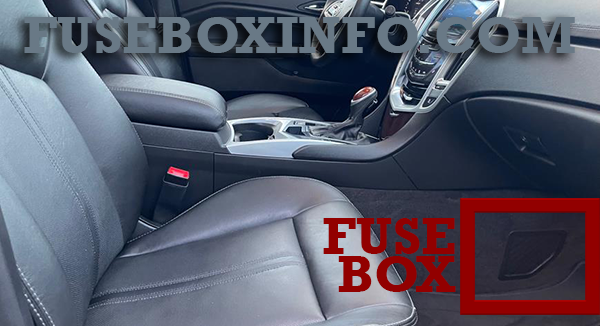

Passenger compartment fuse box location:
The instrument panel fuse box is inside the center console on the passenger side of the vehicle.

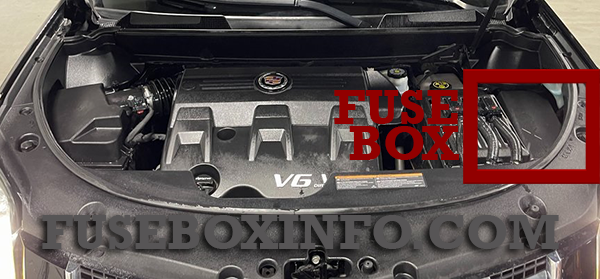

Engine compartment fuse box location:

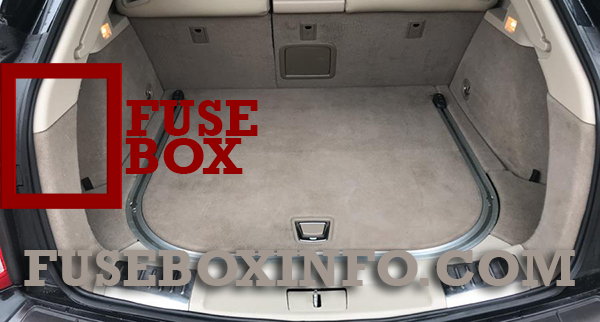

Luggage compartment fuse box location:
The rear compartment fuse box is behind a trim panel on the driver side of the rear storage compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Functions |
| Mini Fuses | |
| DISPLY | Display |
| S/ROOF | Sun Roof |
| UHP | Universal Handsfree Phone (If Equipped) |
| RDO | Radio |
| APO – IP/CNSL | Auxiliary Power Outlet – Instrument Panel/Console |
| APO ‐ CNSL | Auxiliary Power Outlet ‐ Floor Console |
| BCM 1 | Body Control Module 3 |
| BCM 4 | Body Control Module 4 |
| BCM 7 | Body Control Module 7 |
| ONSTAR | OnStar® System (If Equipped) |
| RAIN SNSR | Rain Sensor |
| BCM 6 | Body Control Module 6 |
| ESCL | Electronic Steering Column Lock |
| AIRBAG | Sensing and Diagnostic Module |
| DLC | Data Link Connection |
| IPC | Instrument Cluster |
| STR WHL SW | Steering Wheel Switch |
| BCM 3 | Body Control Module 1 |
| BCM 2 | Body Control Module 2 |
| AMP/RDO | Amplifier/Radio |
| HVAC | Heating Ventilation & Air Conditioning |
| J-Case Fuses | |
| BCM 8 | Body Control Module 8 |
| FRT BLWR | Front Blower |
| Relays | |
| LOGIC RLY/ SHUNT | Logistics Relay/ Shunt |
| RAP/ ACCY RLY | Retained Accessory Power/ Accessory Relay |
| Breakers | |
| HTR DR | Heated Driver Seat |
| HTR PAS | Heated Passenger Seat |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| J-Case Fuses | |
| 6 | Wiper |
| 12 | Vacuum Pump |
| 24 | Anitlock Brake System Pump |
| 25 | Rear Electrical Center 1 |
| 26 | Rear Electrical Center 2 |
| 41 | Cooling Fan 2 |
| 42 | Starter |
| 45 | Cooling Fan 1 |
| Mini Fuses | |
| 1 | Engine Control Module Battery |
| 2 | Transmission Control Module Battery |
| 5 | Engine Control Module Run Crank |
| 7 | Post–Catalytic Converter O2 Sensor |
| 8 | Pre–Catalytic Converter O2 Sensor |
| 9 | Engine Control Module Powertrain |
| 10 | Fuel Injectors–Even |
| 11 | Fuel Injectors–Odd |
| 13 | Washer |
| 14 | Heated Steering Wheel |
| 15 | Heads Up Display |
| 16 | Instrument Panel Cluster/Malfunction Indicator Lamp/ Ignition |
| 17 | Air Quality Sensor |
| 18 | Headlamp Washer |
| 19 | Transmission Control Module Run Crank |
| 20 | Rear Electrical Center Run Crank |
| 30 | Switch Back Light |
| 32 | Battery Sense (Regulated Voltage Control) |
| 33 | Adaptive Forward Lighting / Adaptive Headlamp Leveling Module |
| 35 | Electronic Brake Control Module |
| 36 | Air Conditioning Compressor Clutch |
| 46 | Low Beam Headlamp‐Right |
| 47 | Low Beam Headlamp‐Left |
| 50 | Front Fog Lamps |
| 51 | Horn |
| 52 | Fuel System Control Module |
| 53 | Headlamp Level |
| 54 | Sensing Diagnostic Module Ignition |
| 55 | High Beam Headlamp–Right |
| 56 | High Beam Headlamp–Left |
| 57 | Ignition Steering Column Lock |
| 65 | Trailer Right Stop Lamp |
| 66 | Trailer Left Stop Lamp |
| 67 | Spare |
| 68 | Spare |
| 69 | Spare |
| 70 | Spare |
| 71 | Spare |
| 72 | Spare |
| Mini Relays | |
| 7 | Powertrain |
| 9 | Cooling Fan 2 |
| 13 | Cooling Fan 1 |
| 15 | Run/Crank |
| Micro Relays | |
| 2 | Vacuum Pump |
| 4 | Wiper Control |
| 5 | Wiper Speed |
| 10 | Starter |
| 12 | Cool Fan 3 |
| 14 | Low Beam/HID |
| U Micro Relays | |
| 3 | Air Conditioning Compressor Clutch |
| 8 | Headlamp Washer |
Luggage compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| AOS MDL | Automatic Occupant Sensing Module |
| AUX PWR | Auxiliary Power Outlet |
| BCM THEFT | Body Control Module Theft |
| CAMERA | Rear Vision Camera |
| CNSTR VENT | Canister Vent |
| DRV PWR SEAT | Driver Power Seat |
| EOCM/ SBZA | External Object Calculating Module/ Side Blind Zone Alert |
| FRT HTD SEAT | Front Heated Seats |
| FRT VENT SEAT | Front Ventilated Seats |
| FUEL PUMP | Fuel Pump |
| HTD MIR | Heated Mirror |
| IGN/ THEFT 1 | Ignition/Theft 1 |
| IGN/ THEFT 2 | Ignition/Theft 2 |
| INFOTMNT | Infotainment |
| L/GATE | Liftgate |
| LGM | Liftgate Module |
| LGM LOGIC | Liftgate Module Logic |
| MDL TRLR | Trailer Module |
| MIR WDO MDL | Mirror Window Module |
| PRK BRK MDL | Park Brake Module |
| PASS DR WDO SW | Passenger Door Window Switch |
| PASS DR PWR SEAT | Passenger/Driver Power Seats |
| PRK LPS TRLR | Trailer Park Lamps |
| RDM | Rear Drive Module |
| REAR DEFOG | Rear Defog |
| REAR HTD SEAT | Rear Heated Seats |
| REAR/WPR | Rear Wiper |
| RT WDO | Right Window |
| RPA MDL | Rear Parking Assist Module |
| SADS MDL | Semi Active Damping System Module |
| SEC | Security |
| SHUNT | Shunt |
| SPARE | Spare |
| SPARE FUSES | Spare Fuses |
| TRLR EXP | Trailer Export |
| TRLR | Trailer Module |
| TRLR 2 | Trailer 2 |
| UGDO | Universal Garage Door Opener |
| VICS | Vehicle Information Communications System (Export) |
| WNDO | Power Window |
| Relays | |
| DEFOG REAR | Rear Window Defogger |
| FUEL PUMP | Fuel Pump |
| LOGIC | Logistic Relay (Export) |
| RUN RLY | Run Relay |
| SPARE | Not Used |
| WPR CONTRL | Wiper Control |
