Audi A8 2011 Fuse Box Info
Passenger compartment fuse box location:

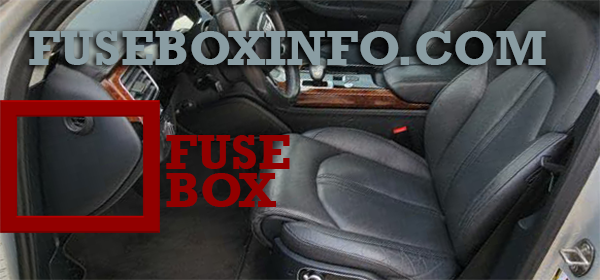

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.
The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side of the vehicle.
Luggage compartment fuse box location:

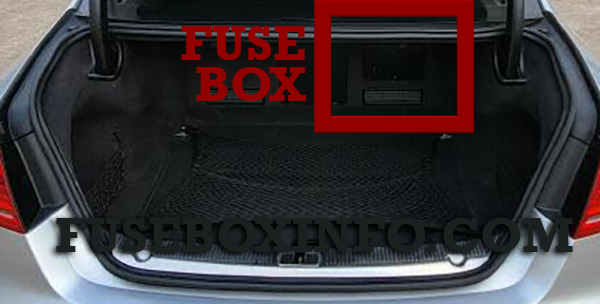

The luggage compartment fuse box is located behind the rear seat trim panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel B (brown) | ||
| 1 | 5A | Headlight control switch |
| 2 | 5A | Ignition key (key identification) |
| 3 | 7.5A | Rear door control module (driver’s side) |
| 5 | 15A | Horn |
| 6 | 7.5A | Interior lights (headliner) |
| 8 | 10/5A | Steering column lever, multifunction steering wheel controls, steering wheel heating |
| 10 | 5A | Power steering column adjustment |
| 11 | 7.5A | Driver door control module |
| 12 | 10A | Diagnostic connector, light/rain sensor |
| 14 | 25A | Power steering column adjustment |
| 15 | 20A | Power steering, AC compressor |
| 16 | 15A | Brake booster (V8 FSI) |
| Fuse panel C (black) | ||
| 1 | 30A | Front seat heating |
| 2 | 30A | Windshield wiper |
| 3 | 30A | Front exterior lighting |
| 4 | 20A | Sun roof |
| 5 | 30A | Driver power window |
| 6 | 15A | Driver seat (pneumatic) |
| 7 | 20A | Panoramic sunroof |
| 8 | 35A | Dynamic steering |
| 9 | 30A | Front exterior lighting |
| 10 | 35A | Windshield/headlight washer system |
| 11 | 30A | Rear power window (driver’s side) |
| 12 | 40A | Panoramic sunroof |
Passenger compartment fuse box (Right Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel B (black) | ||
| 1 | 5A | Anti-theft alarm system |
| 2 | 15A | Transmission control module |
| 3 | 40A | Front climate control fan |
| 4 | 35A | Engine supply |
| 6 | 5A | Engine control module |
| 7 | 7.5A | Front passenger door control module |
| 8 | 30A | Front passenger power window |
| 9 | 10A | ESP control module |
| 10 | 25A | ESP control module |
| 11 | 30A | Right rear power window |
| 12 | 15A | Front passenger seat |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (black) | ||
| 1 | 5A | ESC button, data logger, diagnostic connector, adaptive lighting system |
| 2 | 5A | Networking gateway |
| 3 | 5A | Adaptive air suspension |
| 4 | 5A | Parking system |
| 5 | 5A | Steering column lever |
| 6 | 5A | Suspension control system sensor |
| 7 | 5A | Belt tensioners, airbag control module |
| 8 | 5A | Heated washer fluid nozzles, HomeLink (garage door opener), night vision system control module, sport differential, ionizer |
| 9 | 5A | Electromechanical parking brake control module |
| 10 | 5A | Rear seat heating, refrigerator, interior rearview mirror |
| 11 | 5A | Dynamic steering |
| 12 | 5A | Selector lever, BCM-2 |
| 13 | 5A | Audi side assist |
| 14 | 5A | Engine control module |
| 15 | 40 | Starter |
| 16 | 10/5A | Left headlight/Headlight range control system |
| Fuse panel B (red) | ||
| 1 | 25A | Left reversible belt tensioner |
| 2 | 25A | Right reversible belt tensioner |
| 3 | 5A | Starter diagnosis |
| 4 | 7.5A | DC/DC converter |
| 5 | 7.5A | Adaptive Cruise Control |
| 6 | 10A | Right headlight (headlight with adaptive light) |
| 7 | 5A | ESP control module |
| 8 | 5A | AEM control module |
| 9 | 10A | Adaptive Cruise Control |
| 10 | 5A | Transmission control module |
| 11 | 5A | Climate control system sensors |
| Fuse panel C (brown) | ||
| 1 | 5A | Electromechanical parking brake |
| 2 | 5A | Suspension control system sensor |
| 3 | 7.5A | Riqht rear door control module |
| 4 | 5A | Smart Modul Tank |
| 5 | 15A | Front climate control system controls |
| 6 | 10A | Rear climate control system controls |
| 7 | 5A | Networking gateway |
| 8 | 15A | Refrigerator |
| 9 | 5A | Interface for special functions |
| 12 | 10A | Selector lever |
| 13 | 10A | Ambient lighting |
| 14 | 20A | Rear exterior lighting |
| 15 | 25A | Fuel pump |
| 16 | 30A | Electromechanical parking brake |
| Fuse panel D (black) | ||
| 3 | 20A | Rear sockets |
| 5 | 15A | Adaptive air suspension |
| 6 | 25A | 115-V socket |
| 7 | 30A | Electromechanical parking brake |
| 8 | 25A | Rear seat heating |
| 9 | 20A | Rear exterior lighting |
| 10 | 20A | Rear climate control system blower |
| 11 | 20A | Rear sun shade, closing aid, luggage compartment lock, keyless go/entry, fuel filler door |
| 12 | 30A | Luggage compartment lid control module |
| Fuse panel E (red) | ||
| 1 | 5A | Rear seat adjustment buttons |
| 3 | 7.5A | Left rear seat (pneumatics) |
| 5 | 20A | Trailer hitch control module |
| 6 | 30A | Left rear seat |
| 7 | 30A | Right rear seat |
| 8 | 20A | Trailer hitch control module |
| 9 | 15A | Trailer hitch control module |
| 10 | 7.5A | Right rear seat (pneumatics) |
| Fuse panel F (brown) | ||
| 1 | 30A | Radio receiver/sound amplifier |
| 2 | 30A | Sound amplifier, Bang & Olufsen Advanced Sound System |
| 3 | 10A | Rear Seat Entertainment, radio receiver/sound amplifier |
| 5 | 5A | Automatic dimming interior rearview mirror, rearview camera (parking aid) |
| 6 | 5A | DVD changer |
| 7 | 5A | TV tuner |
| 8 | 7.5A | MMI unit/drives |
| 9 | 5A | Instrument cluster, analog clock |
| 10 | 5A | MMI Display |
| 11 | 7.5A | Radio receiver |
| 12 | 5A | Cell phone adapter, cell phone/telephone charging cradle, chip card reader (not in all countries) |
