Audi A8 2024 Fuse Box

Audi A8 2024 Fuse Box Info


Passenger compartment fuse box location:

The fuse box 1 is located on the left front side of the cockpit.

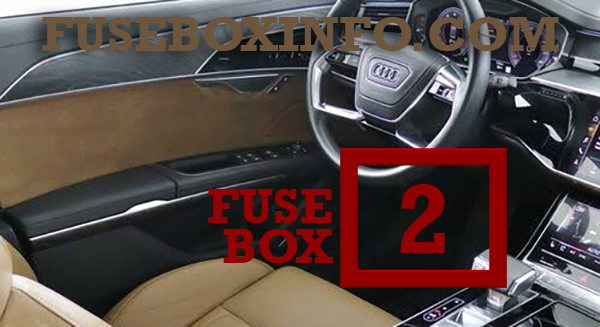

The fuse box 2 is located in the driver's footwell.

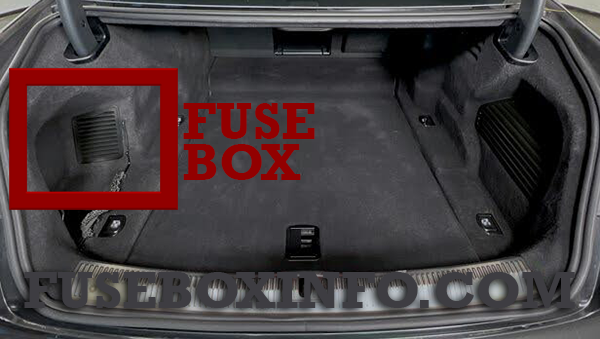

Luggage compartment fuse box location:



Fuse Box Diagram | Layout


Passenger compartment fuse box 1:

Fuse/Relay N° Functions
  Fuse panel 1 (black)
1 Climate control system, air quality sensor
2 Audi phone box, exterior antenna
3 Climate control system, fragrance system, particulate matter sensor
4 Head-up display
5 USB ports with charging function
6 Instrument panel
7 Steering column lock
8 Upper/lower display
9 Instrument cluster
10 Volume control
11 Light switch, switch panels
12 Steering column electronics
14 MMI Infotainment system control module
15 Steering column adjustment
16 Steering wheel heating


Passenger compartment fuse box 2:

Fuse/Relay N° Functions
  Fuse panel 1 (brown)
1 Ignition coils
2 Engine start, electric drive clutch
3 Windshield wiper control module
4 Left headlight electronics
5 Climate control system blower
6 Instrument panel
7 Windshield wipers
9 Panoramic glass roof
  Fuse panel 2 (black)
1 Engine mount
2 Left rear door control module
3 Windshield washer system/headlight washer system
4 Right headlight electronics
5 Front seat heating
6 Right rear door control module
7 Sockets
8 Left front door control module
9 Auxiliary heating, exterior sound generator
  Fuse panel 3 (red)
1 Anti-theft alarm system
2 Drive system control module
4 Electronic toll collection system (ETC)
5 Horn
6 Parking brake
7 Diagnostic interface
8 Roof electronics control module
9 Driver assistance systems control module
10 Airbag control module
11 Electronic Stabilization Control (ESC), Anti-Lock Braking System (ABS)
12 Climate control system rear control panel, diagnostic connector, light/rain sensor
13 Climate control system, vehicle electrical system control module
14 Right front door control module
15 Climate control system compressor, vehicle electrical system control module
16 Brake system pressure reservoir
  Fuse panel 4 (black)
2 Engine components, coolant pump, oxygen sensors
3 Exhaust doors, fuel injectors, air intake, motor heating
4 NOX sensor, particulate sensor, biodisel sensor, exhaust doors
5 Brake light sensor
6 Engine valves, camshaft adjustment
7 Heated oxygen sensor, mass airflow sensor
8 Coolant pump, high pressure pump, mass airflow sensor, fuel pressure regulation
9 48 volt starter generator, 48 volt coolant pump, motor components
10 Oil pressure sensor, oil temperature sensor
11 48 volt starter generator, 48 volt coolant pump, 12 volt starter generator
12 Engine valves, engine mount
13 Engine cooling
14 Engine control module, fuel injectors
15 Heated oxygen sensors, charge air cooling, ignition coils
16 Fuel pump


Luggage compartment fuse box:

Fuse/Relay N° Functions
  Fuse panel 1 (black)
1 Thermal management
5 Air suspension/suspension control
6 Automatic transmission control module
7 Right rear seat adjustment
8 Rear seat heating
9 Convenience system control module, left tail lights
10 Front belt tensioner on driver's side
11 Luggage compartment lid central locking, fuel filler door, convenience system control module, sunshade
12 Luggage compartment lid control module
  Fuse panel 2 (red)
1 Rear climate control system blower
2 Exterior antenna
3 Exhaust treatment, engine sound control module
4 Rear climate control system control panel
5 Right trailer hitch light
6 Trailer hitch positioning motor
7 Trailer hitch release
8 Left trailer hitch light
9 Trailer hitch socket, battery 48V
10 Allroad sport differential
11 Exhaust treatment
  Fuse panel 3 (brown)
1 Driver assist systems control module
2 Rear Audi phone box
3 Rear seat adjustment
4 Side assist
5 Screens in the rear, Rear Seat Remote
6 Tire pressure monitoring system
7 Emergency call and communication control module
8 Auxiliary heating radio receiver, tank module
9 Automatic transmission selector lever
10 TV tuner, data exchange and telematics control module
11 Convenience access and start authorization control module
12 Garage door opener
13 Rearview camera, peripheral cameras
14 Convenience system control module, right tail light
15 Left rear seat adjustment
16 Front belt tensioner on front passenger's side
  Fuse panel 4 (black)
1 Seat ventilation, rear seat heating, rearview mirror, refrigerator, diagnostic connector
2 Diagnostic interface
3 Engine sound control module
4 Transmission heating valve
5 Engine start, electric drive
7 Active accelerator pedal
8 Night vision assist, active roll stabilization
9 Adaptive cruise assist
11 Intersection assistant, driver assist systems, radar systems, camera systems
12 Exterior sound generator
13 USB connection
14 Right headlight
15 Left headlight
  Fuse panel 5 (red)
1 Active suspension
2 High-voltage battery emergency cut-off point
3 Refrigerator
4 Electric drive system, power electronics
5 Brake system
6 High-voltage battery water pump
7 Auxiliary climate control
8 Climate control system compressor
9 Auxiliary battery control module
10 High-voltage battery
11 High-voltage charger
14 Thermal management
15 Thermal management
  Fuse panel 6 (white)
1 Rear center armrest heating
2 Rear panoramic glass roof
3 DVD drive
5 AC socket
6 Passenger’s side rear safety belt tensioner
7 Front center armrest heating
8 Rear footrest heating
11 Rear Seat Remote
12 Driver’s side rear safety belt tensioner
