Audi A6 2013 Fuse Box Info
Passenger compartment fuse box location:

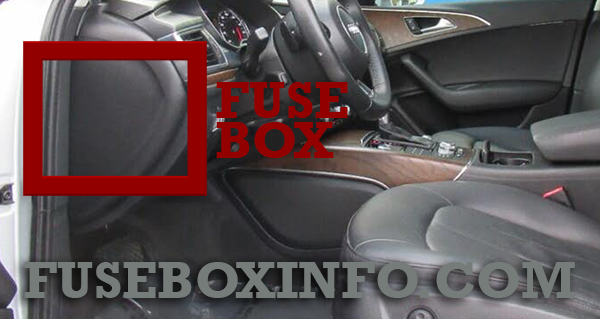

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.
The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side of the vehicle.
Luggage compartment fuse box location:
The luggage compartment fuse box is located on the right side of the trunk, behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (black) | ||
| 1 | 5A | Switch panel, seat heating, starting assist, control module |
| 2 | 5A | Automatic dimming interior rearview mirror |
| 4 | 5A | Suspension control system sensor |
| 5 | 5A | ESC control module |
| 6 | 5A | Vehicle electrical system control module 1, Vehicle electrical system control module 2 |
| 7 | 10A | Audi adaptive cruise control |
| 8 | 5A | Airbag control module, front passenger's seat sensor system |
| 9 | 5A | Gateway |
| 10 | 5A | HomeLink (garage door opener), night vision system control module |
| 11 | 10A | Image processing (Audi active lane assist, Audi adaptive cruise control) |
| 12 | 5A | Steering |
| 13 | 15A | Terminal 15 in the luggage compartment |
| 14 | 30A | Terminal 15 in the instrument panel (front passenger's side) |
| 15 | 15A | Terminal 15 engine |
| 16 | 40A | Starter |
| Fuse panel B (brown) | ||
| 1 | 5A | Gateway |
| 2 | 10A | Climate control |
| 3 | 10A | ESC control module |
| 4 | 30A | Front door (driver's side) |
| 5 | 7.5A | Power seat adjustment (driver's seat) |
| 6 | 35A | Steering |
| 7 | 20A | Sunroof |
| 8 | 15A | Rear door control module (driver's side) |
| 9 | 5A | Lumbar support (Front passenger seat) |
| 11 | 20A | Sunroof, rear spoiler (Sportback) |
| 12 | 15A | Driver door control module |
| Fuse panel C (red) | ||
| 2 | 25A | Fuel pump |
| 3 | 5/5A | Brake light sensor/brake pedal sensor system |
| 4 | 7.5A | Engine acoustics |
| 5 | 30A | Rear door control module (driver's seat) |
| 6 | 7.5A | Left rear seat |
| 7 | 15A | Horn |
| 8 | 30A | Windshield wiper |
| 9 | 5A | Light/rain sensor |
| 10 | 5A | Lumbar support (driver seat) |
| 11 | 15A | Front passenger door control module |
| 12 | 15A | Right rear door control module |
Passenger compartment fuse box (Right Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (black) | ||
| 1 | 5A | Head-up Display |
| 2 | 5A | MMI Display |
| 3 | 5A | CD/DVD charger |
| 4 | 7.5A | MMI unit/drives |
| 5 | 5A | Chip card reader (not in all countries) |
| 6 | 5A | Instrument cluster |
| 7 | 5A | Steering column switch module |
| 8 | 5/7.5A | Headlight range adjustment/adaptive lighting system |
| 10 | 7.5A | Left headlight (headlight with adaptive light) |
| Fuse panel B (brown) | ||
| 1 | 10A | Climate control |
| 2 | 40A | Climate control system blower |
| 3 | 10A | Diagnostic connector |
| 4 | 5A | Electrical ignition lock |
| 5 | 5A | Power steering column adjustment |
| 6 | 10A | Steering column switch module |
| 7 | 25A | Power steering column adjustment |
| 8 | 5A | Light switch |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel A (black) | ||
| 4 | 30A | Electromechanical parking brake |
| 5 | 30A | Electromechanical parking brake |
| 6 | 30A | Front door (front passenger's side) |
| 7 | 30A | Rear exterior lighting |
| 8 | 20A | Rear sun shade, closing aid, luggage compartment lock, convenience key, START ENGINE STOP, fuel filler door |
| 9 | 15A | Power seat adjustment |
| 10 | 5A | Parking system |
| 11 | 30A | Rear seat heating |
| Fuse panel B (red) | ||
| 1 | 25A | Left belt tensioner |
| 2 | 25A | Right belt tensioner |
| 3 | 20A | Socket |
| 4 | 20A | Socket |
| 5 | 5A | Electromechanical parking brake |
| 6 | 15A | Adaptive air suspension |
| 7 | 30A | Rear door (front passenger's side) |
| 8 | 30A | Rear exterior lighting |
| 9 | 30A | Luggage compartment lid control module |
| 10 | 5A | Telephone |
| 11 | 30A | Sound amplifier |
| 12 | 20A | Rear spoiler (Sportback) |
| Fuse panel C (brown) | ||
| 1 | 30/20A | Radio receiver, Sound amplifier/MMI unit/drives |
| 2 | 5A | Tank leak detection system |
| 4 | 10/15A | AEM control module/battery module |
| 6 | 35A | Battery fan |
| 7 | 7.5A | Radio receiver |
| 8 | 7.5A | Rear Seat Entertainment |
| 9 | 5/15A | Automatic dimming interior rearview mirror/battery module |
| 10 | 5A | Parking system |
| Fuse panel D (green) | ||
| 1 | 5A | Audi pre sense |
| 2 | 5A | Electromechanical parking brake |
| 3 | 5A | Adaptive air suspension |
| 4 | 7.5A | Automatic transmission |
| 5 | 5A | Parking system |
| 6 | 5A | Rear Seat Entertainment |
| 7 | 5A | Start-Stop-System |
| 8 | 5A | Audi side assist |
| 9 | 5A | Gateway, Vehicle electrical system control module 1 |
| 10 | 5A | Sport differential |
