Audi A6 2009 Fuse Box Info
Passenger compartment fuse box location:

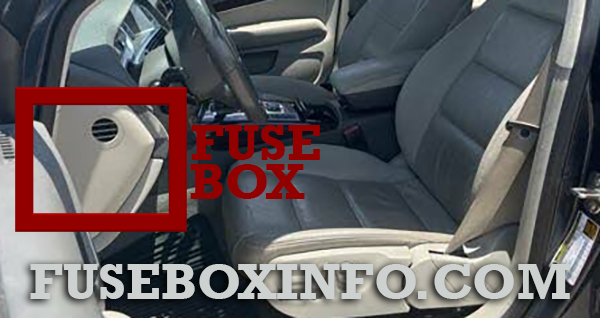

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side of the vehicle.

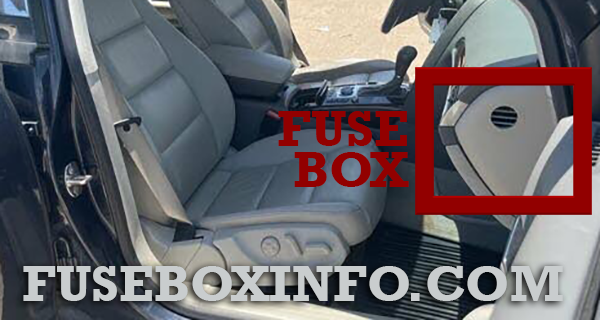

The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side of the vehicle.
Luggage compartment fuse box location:

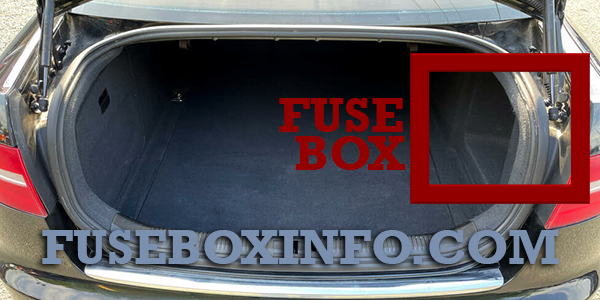

The luggage compartment fuse box is located on the right side of the trunk, behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box (Left Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | - | Not used |
| 3 | 5A | Engine management |
| 4 | 5A | Oil level sensor |
| 5 | 5A | Climate control, tire pressure monitoring system |
| 6 | 5A | Electronic Stabilization Program (ESP), clutch sensor |
| 7 | 5A | Diagnostic connector |
| 8 | 5A | HomeLink control unit |
| 9 | 5A | Automatic dimming interior mirror |
| 10 | 5A | Adaptive Cruise Control |
| 11 | - | Not used |
| 12 | 10A | Diagnostic connector |
| 13 | 10A | Switch module steering column |
| 14 | - | Not used |
| 15 | 10A | Instrument cluster, control module Gateway |
| 16 | 5A | Telephone, cell phone |
| 17 | 10A | Electronic Stabilization Program (ESP) |
| 18 | 5A | Headlight electronics, left-side |
| 19 | 5A | Rain sensor |
| 20 | 5A | Heated washer nozzles |
| 21 | 10A | Seat adjustment (driver) |
| 22 | 5A | MMI display |
| 23 | 5A | Electromechanical parking brake |
| 24 | - | Not used |
| 25 | - | Not used |
| 26 | - | Not used |
| 27 | - | Not used |
| 28 | - | Not used |
| 29 | - | Not used |
| 30 | - | Not used |
| 31 | 15A | Back-up light switch, transmission, engine components |
| 32 | 30A | Intelligent power module driver (footwell light and front headlights, horn, wiper system, electrically adjustable steering wheel) |
| 33 | 25A | Intelligent power module driver (lights left-side) |
| 34 | 25A | Intelligent power module driver (lights right-side) |
| 35 | - | Not used |
| 36 | 30A | Headlight washer system |
| 37 | 25A | Electronic Stabilization Program (ESP) |
| 38 | 30A | Wiper system |
| 39 | 15A | Door control module left-side |
| 40 | 25A | Horn |
| 41 | 40A | Heater fan |
| 42 | 30A | Control module electronic ignition lock/electrically adjustable steering wheel |
| 43 | 15A | Rear windshield wiper (Avant) |
| 44 | 35A | Power window opener (left-side) |
Passenger compartment fuse box (Right Side):
| Fuse/Relay N° | Rating | Functions |
| Fuse panel (black) | ||
| 1 | 15A | Control module Convenience Key |
| 2 | 20A | Cigarette lighter front |
| 3 | 5A | Tire pressure monitoring system |
| 4 | 20A | Electrical outlet front (center console) |
| 5 | 15A | Intelligent power module passenger (glove box lock) |
| 6 | 15A | Door control module right-side |
| 7 | 20A | Sunroof |
| 8 | 10A | A/C controls |
| 9 | 30A | Heated seats, front |
| 10 | 10A | MMI |
| 11 | 10A | Seat adjustment (passenger) |
| 12 | 5A | Communication |
| Fuse panel (brown) | ||
| 1 | 20/30A | Electric fuel pump |
| 2 | 15A | Adaptive Air Suspension |
| 3 | 10A | Lane assist |
| 4 | 5A | Audi side assist |
| 5 | 5A | Adaptive Air Suspension |
| 6 | 5A | Shift gate automatic transmission/clutch switch |
| 7 | 5A | Acoustic Parking System |
| 8 | 5A | Control module Gateway |
| 9 | 5A | Automatic headlight range control (auxiliary driving lights), headlight electronics, right-side |
| 10 | 5A | Airbag |
| 11 | 5A | Heated rear seats |
| 12 | 5A | Telephone |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuse panel (black) | ||
| 1 | 30A | Digital Signal Processing (DSP)/ BOSE amplifier |
| 2 | 5A | Communication, Antenna amplifier |
| 3 | 30A | Electromechanical parking brake, left |
| 4 | 30A | Electromechanical parking brake, right |
| 5 | 20A | Luggage compartment power outlet |
| 6 | 5A | Battery energy management |
| 7 | 20A | Intelligent power module rear (lights right-side) |
| 8 | 5A | Intelligent power module (comfort) |
| 9 | 30A | Intelligent power module rear (lights left-side) |
| 10 | 35A | Power window opener (right-side) |
| 11 | 5A | Acoustic Parking System |
| 12 | 20A | Cigarette lighter rear |
| Fuse panel (brown) | ||
| 1 | 5A | Rear view |
| 2 | 30A | Electric rear lid (Avant) |
| 3 | 30A | Electric rear lid (Avant) |
| 4 | 20A | Electric rear lid (Avant) |
| 5 | 5A | Communication, Antenna amplifier |
| 6 | - | Not used |
| 7 | 5A | MMI |
| 8 | - | Not used |
| 9 | 5A | Digital Tuner |
| 10 | - | Not used |
| 11 | - | Not used |
| 12 | - | Not used |
