Acura TL 2002 Fuse Box Info

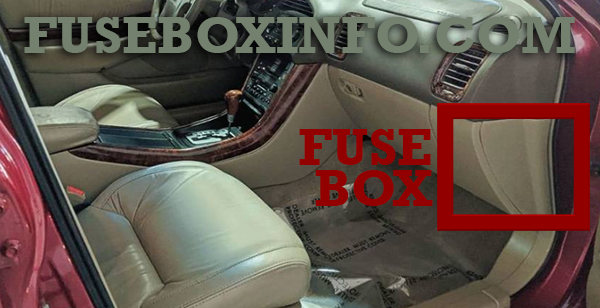

Passenger compartment fuse box location:
The interior fuse boxes are located on each side of the dashboard.

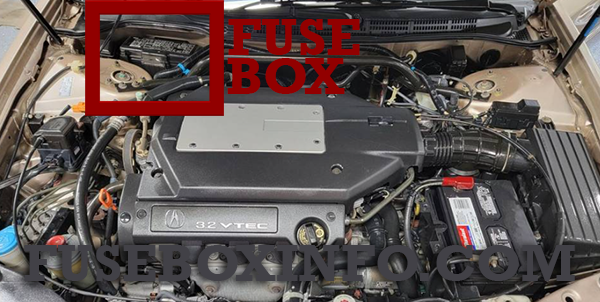

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A (Driver’s Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Fuel Pump |
| 2 | 10A | SRS |
| 3 | 7.5A | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7.5A | R/C Mirror |
| 5 | 7.5A | Daytime Running Lights* |
| 6 | 15A | ECU (ECM/PCM), Cruise Control |
| 7 | 7.5A | Moonroof |
| 8 | 7.5A | ACC Relay, Navigation |
| 9 | 7.5A | Instrument Panel, Back-up Lights, Memory Seat |
| 10 | 7.5A | Turn Signals |
| 11 | 15A | IG Coil |
| 12 | 30A | Wiper, Washer |
| 13 | 7.5A | Starter Signal |
* On Canadian models
Passenger compartment fuse box B (Passenger’s Side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Driver’s Power Window |
| 2 | 20A | Driver’s Power Seat Reclining |
| 3 | 20A | Heated Seat |
| 4 | 20A | Driver’s Power Seat Slide |
| 5 | 20A | Passenger’s Power Seat Slide |
| 6 | 20A | Passenger’s Power Seat Reclining |
| 7 | 20A | Rear Left Power Window |
| 8 | 20A | Front Right Power Window |
| 9 | 20A | ACC (Radio) |
| 10 | 10A | Navigation System, Daytime Running Lights*1 |
| 11 | 7.5A | Interior Light, Courtesy Lights |
| 12 | 20A | Power Door Locks |
| 13 | 7.5A | Clock, Back up |
| 14*2 | 7.5A | A/C Mg Clutch |
| 15 | 30A | Moonroof |
| 16 | 20A | Rear Right Power Window |
*1 On Canadian models
*2 Type S only
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1*1 | 20A | Condenser Fan |
| 1*2 | 30A | Condenser Fan |
| 2 | 15A | Small Light |
| 3 | 60A | IG1 Main |
| 4 | 40A | Rear Window Defogger |
| 5 | 40A | Heater Motor |
| 6 | 20A | Fog Light |
| 7 | 40A | Power Seat |
| 8 | 40A | Power Window Motor |
| 9 | 40A | Back Up, ACC |
| 10 | 15A | Spare Fuse |
| 11 | 10A | Spare Fuse |
| 12 | 7.5A | Spare Fuse |
| 13*1 | 20A | Cooling Fan |
| 13*2 | 30A | Cooling Fan |
| 14 | 120A | Battery |
| 15 | 30A | Spare Fuse |
| 16 | 20A | Spare Fuse |
| 17 | 15A | Hazard |
| 18*2 | 30A | VSA Throttle Motor |
| 19 | 15A | ACG S |
| 20 | 20A | Stop |
| 21 | 20A | TCS, VSA F/S |
| 22 | 20A | Right Headlight |
| 23 | - | Not Used |
| 24 | 20A | Left Headlight |
*1 Premium model
*2 Type S only
ABS fuse box (The fuse box for the ABS is located in the engine compartment on the driver’s side):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | ABS Motor |
| 2 | 20A | ABS F/S |
| 3 | 7.5A | ABS Motor Check |
